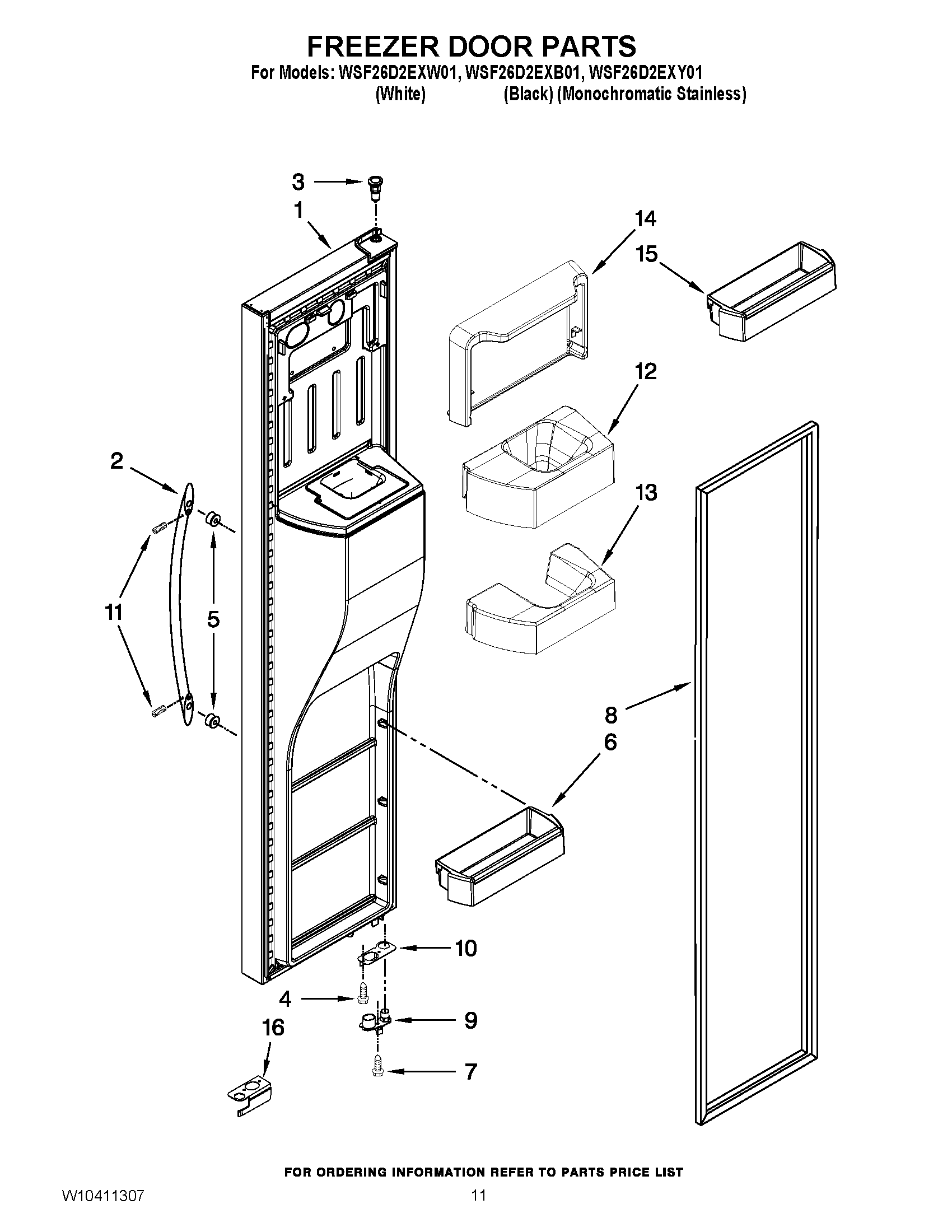

WSF26D2EXW01 07 – FREEZER DOOR PARTS

WSF26D2EXW01 07 – FREEZER DOOR PARTS

Written by

in

WSF26D2EXW01 07 – FREEZER DOOR PARTS

Products

PositionProduct
1FREEZER DOOR (INCLUDES ITEM 8 AND DISPENSER FRONT PARTS) (MONO STAINLESS)
1LW10290911 Whirlpool Door Switch
1LW10267388 Whirlpool Refrigerator Door FIP White
1FREEZER DOOR (INCLUDES ITEM 8 AND DISPENSER FRONT PARTS) (BLACK)
2WPW10268056 Whirlpool Refrigerator Door Handle
2WPW10670421 Whirlpool Refrigerator Handle
2WPW10268057 Whirlpool Refrigerator Handle
3WP2182181 Whirlpool Refrigerator Thimble
4WPW10296804 Whirlpool Refrigerator Screw
5WPW10170540 Whirlpool Screw
6WPW10296857 Whirlpool Refrigerator Cantilever Bin
7SCREW
8WPW10247885 Whirlpool Door Gasket
8WPW10249913 Whirlpool Refrigerator FIP Gasket
8WPW10355585 Whirlpool Refrigerator Door Gasket + AH
9WPW10257206 Whirlpool Refrigerator Door Cam
9W11607100 Whirlpool Refrigerator Thimble Cam
9WPW10248015 Whirlpool Refrigerator Door Cam
10W11293380 Whirlpool Refrigerator Bracket
11SCREW
11WPW10010150 Whirlpool Refrigerator Screw
12CHUTE ADAPTER
13W10283476 Whirlpool Door Chute
14W10314925 Whirlpool Control Bin
15W10316652 Whirlpool Refrigerator Cantilever Bin
16WPW10632062 Whirlpool Refrigerator Wire Cover
16W10632059 Whirlpool Refrigerator Wire Cover
16W10632060 Whirlpool Refrigerator Wire Cover
