WSF26D3EXA00 10 – ICEMAKER PARTS

WSF26D3EXA00 10 – ICEMAKER PARTS

Written by

in

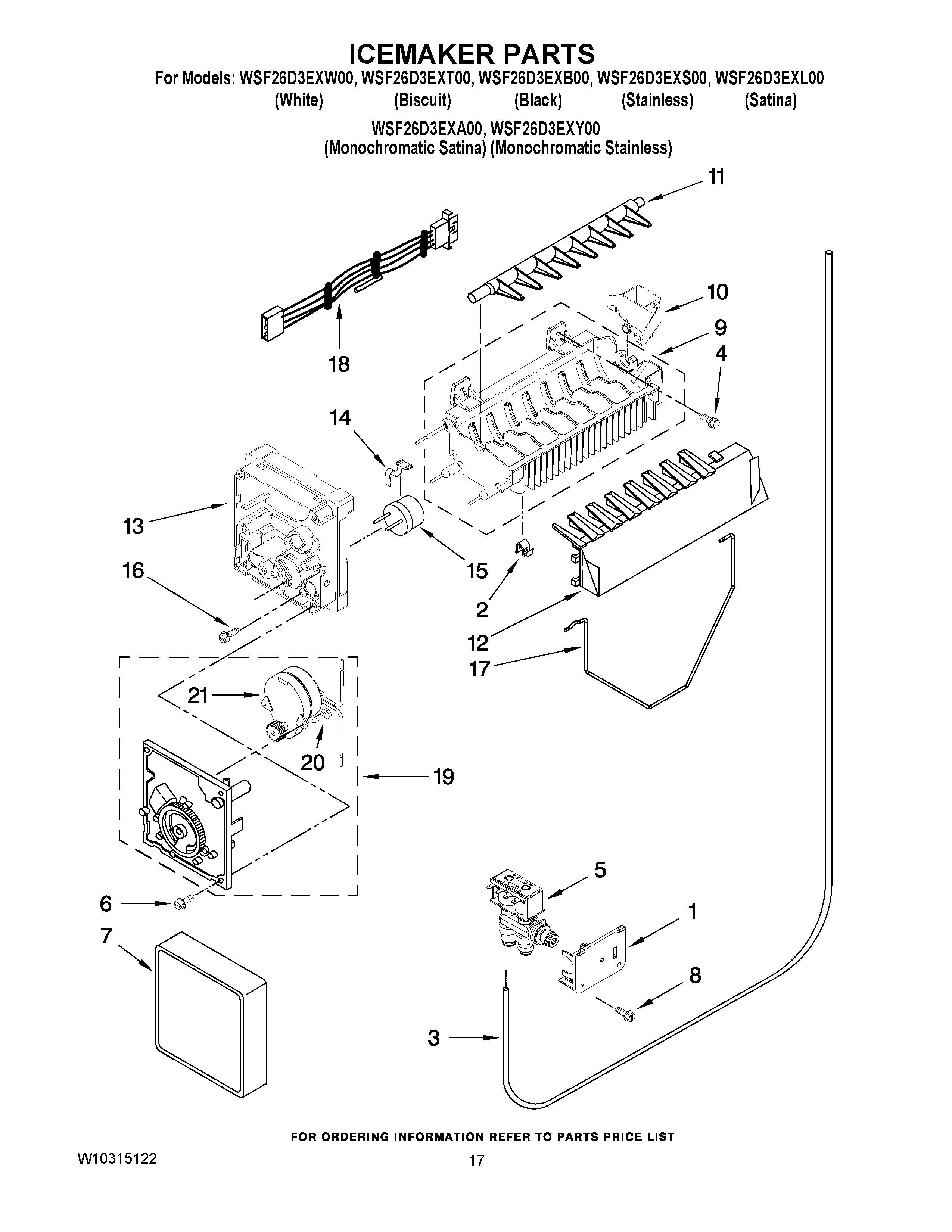

WSF26D3EXA00 10 – ICEMAKER PARTS

Products

PositionProduct
1W10847867 Whirlpool Refrigerator Bracket
2WP628379 Whirlpool Refrigerator Clip
3W10823511 Whirlpool Refrigerator Water Tube
4WP489478 Whirlpool Refrigerator Screw
5WPW10238102 Whirlpool Refrigerator Inlet Valve
6WP681249 Whirlpool Screw Assembly
7WPW10289690 Whirlpool Ice Maker Cover
8WPW10141625 Whirlpool Refrigerator Screw Assembly
9WPW10300025 Whirlpool Refrigerator Ice Mold
10W10122561 Whirlpool Refrigerator Cup Fill
11W10318914 Whirlpool Refrigerator Ejector Arm
12WPW10122563 Whirlpool Refrigerator Stripper Arm
13WP2195914 Whirlpool Refrigerator Ice Maker Housing
14WP2315522 Whirlpool Refrigerator Clip
15WP2321258 Whirlpool Refrigerator Bimetallic Defrost Assembly
168533917 Whirlpool Refrigerator Screw
17W11342242 Whirlpool Refrigerator Ice Level Arm
18W10242433 Whirlpool Refrigerator Wire Harness
198201515 Whirlpool Refrigerator Motor and Gear Module Kit
20489136 Whirlpool Refrigerator Screw
21CABINET (NOT A SERVICEABLE PART)
100WPW10300022 Whirlpool Refrigerator Ice Maker Assembly
