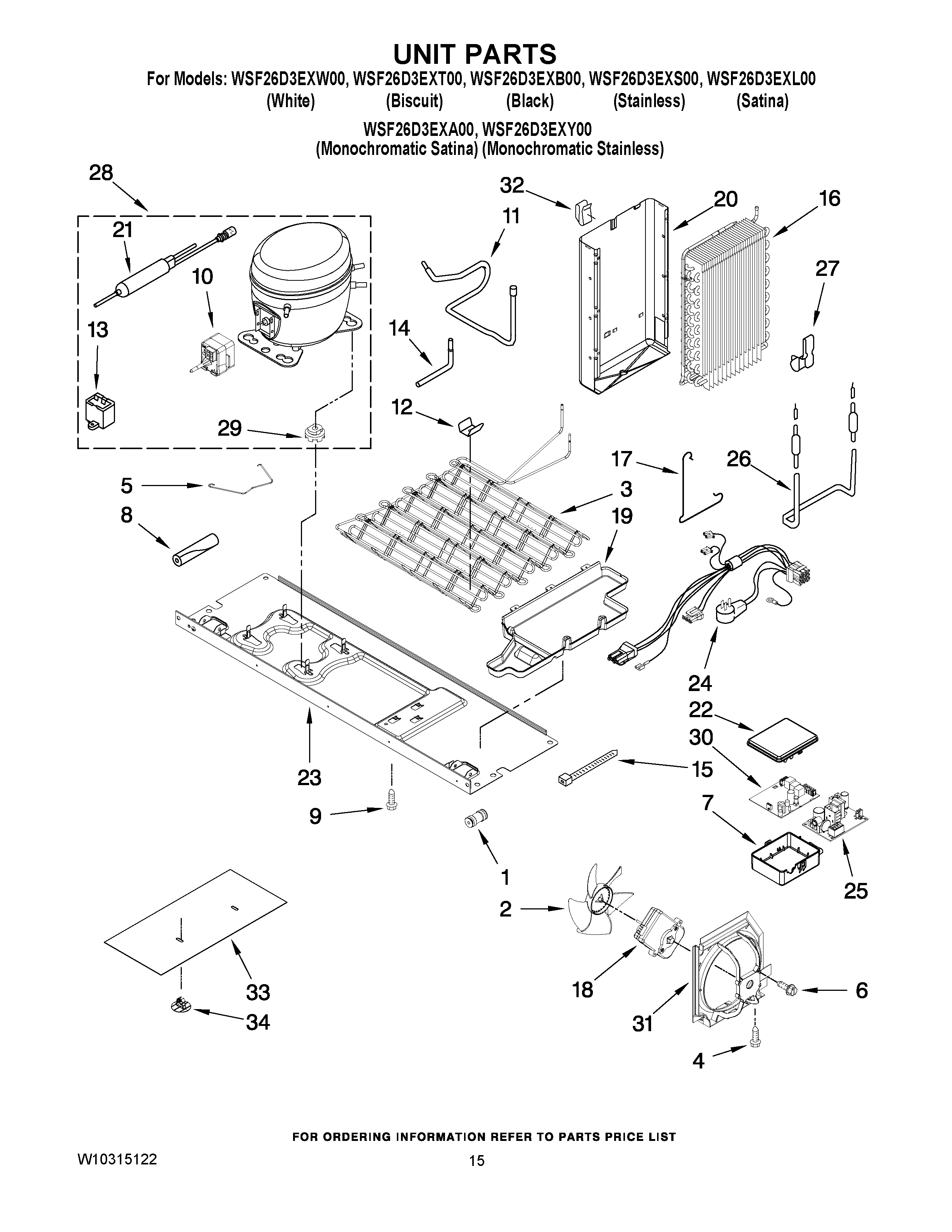

WSF26D3EXB00 09 – UNIT PARTS

Products

Position	Product
NI	978030 Whirlpool Refrigerator Valve
NI	VALVE, ACCESS (5/8“)
NI	876764 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	VALVE, ACCESS (1/2“)
NI	WP978025 Whirlpool Refrigerator Valve
1	WP2300868 Whirlpool Refrigerator Fitting
2	W10156818 Whirlpool Refrigerator Fan Blade
3	W11673437 Whirlpool Condenser Assembly
4	WP489399 Whirlpool Refrigerator Screw
5	2223314 Whirlpool Refrigerator Clip
6	WPW10171469 Whirlpool Refrigerator Screw
7	WPW10247993 Whirlpool Refrigerator Control Box
8	SLEEVE
9	W11544659 Whirlpool Refrigerator Screw
10	WPW10260370 Whirlpool Refrigerator Start Device
11	W11311688 Whirlpool Refrigerator Tube
12	W10683556 Whirlpool Refrigerator Clip
13	WPW10662129 Whirlpool Refrigerator Run Capacitor
14	W10858105 Whirlpool Refrigerator Tube
15	WPW10339879 Whirlpool Wire Tie
16	WP2188822 Whirlpool Refrigerator Evaporator
17	Clamp
18	WP2188874 Whirlpool Refrigerator Condenser Motor
19	W10703218 Whirlpool Refrigerator Evaporator Tray
20	W10274575 Whirlpool Refrigerator Shield
21	WPW10143759 Whirlpool Dryer Filter
22	LID, HV BOX
23	W10277704 Whirlpool Refrigerator Support
24	WPW10242407 Whirlpool Refrigerator Power Cord
25	WPW10356039-includeCORE Whirlpool WPW10356039 Refrigerator Electronic Control Board + Core
26	WPW10495967 Whirlpool Refrigerator Heater
27	W11623163 Whirlpool Refrigerator Clip
28	W10309989 Whirlpool Refrigerator Compressor
29	WPW10169124 Whirlpool Refrigerator Grommet
29	WP4387558 Whirlpool Refrigerator Compressor Grommet
30	WPW10235491-includeCORE Whirlpool WPW10235491 Refrigerator Electronic Control Board + Core
31	WPW10251467 Whirlpool Refrigerator Air Baffle
32	Clip, Heat Shield
33	W10278140 Whirlpool Refrigerator Unit Cover
34	W10296661 Whirlpool Refrigerator Clip
