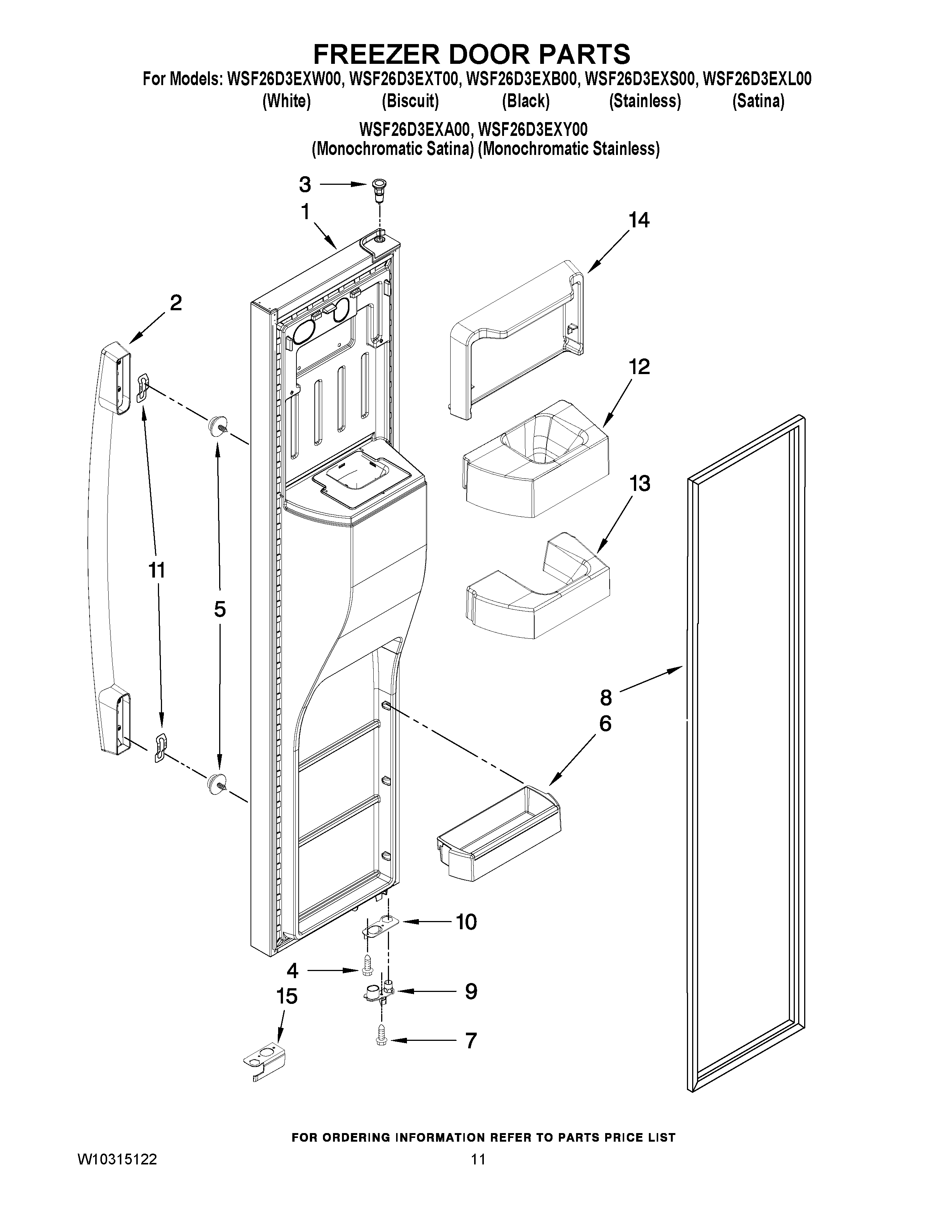

WSF26D3EXL00 07 – FREEZER DOOR PARTS

WSF26D3EXL00 07 – FREEZER DOOR PARTS

Written by

in

WSF26D3EXL00 07 – FREEZER DOOR PARTS

Products

PositionProduct
1FREEZER DOOR (INCLUDES ITEM 8 AND DISPENSER FRONT PARTS) (SATINA)
1FREEZER DOOR (INCLUDES ITEM 8 AND DISPENSER FRONT PARTS) (MONO SATINA)
1FREEZER DOOR (INCLUDES ITEM 8 AND DISPENSER FRONT PARTS) (STAINLESS)
1FREEZER DOOR (INCLUDES ITEM 8 AND DISPENSER FRONT PARTS) (MONO STAINLESS)
1FREEZER DOOR (INCLUDES ITEM 8 AND DISPENSER FRONT PARTS) (WHITE)
1FREEZER DOOR (INCLUDES ITEM 8 AND DISPENSER FRONT PARTS) (BLACK)
1FREEZER DOOR (INCLUDES ITEM 8 AND DISPENSER FRONT PARTS) (BISCUIT)
2W11351146 Whirlpool Refrigerator Handle
2WPW10222984K Whirlpool Refrigerator Handle Assembly
2HANDLE (BISCUIT)
2W11351147 Whirlpool Refrigerator Handle
3WP2182181 Whirlpool Refrigerator Thimble
4WPW10296804 Whirlpool Refrigerator Screw
5WPW10288153 Whirlpool Refrigerator Screw
6W10309878 Whirlpool Control Bin
7SCREW
8WPW10247885 Whirlpool Door Gasket
8WPW10355585 Whirlpool Refrigerator Door Gasket + AH
8WPW10249913 Whirlpool Refrigerator FIP Gasket
9W10257205 Whirlpool Refrigerator Thimble
9W11607100 Whirlpool Refrigerator Thimble Cam
9WPW10248015 Whirlpool Refrigerator Door Cam
9WPW10257206 Whirlpool Refrigerator Door Cam
10W11293380 Whirlpool Refrigerator Bracket
11WP2255411 Whirlpool Refrigerator Clip
12CHUTE ADAPTER
13W10283476 Whirlpool Door Chute
14W10314925 Whirlpool Control Bin
15WPW10632062 Whirlpool Refrigerator Wire Cover
15W10632060 Whirlpool Refrigerator Wire Cover
15W10632059 Whirlpool Refrigerator Wire Cover
15W10257222 Whirlpool Refrigerator Wire Cover
