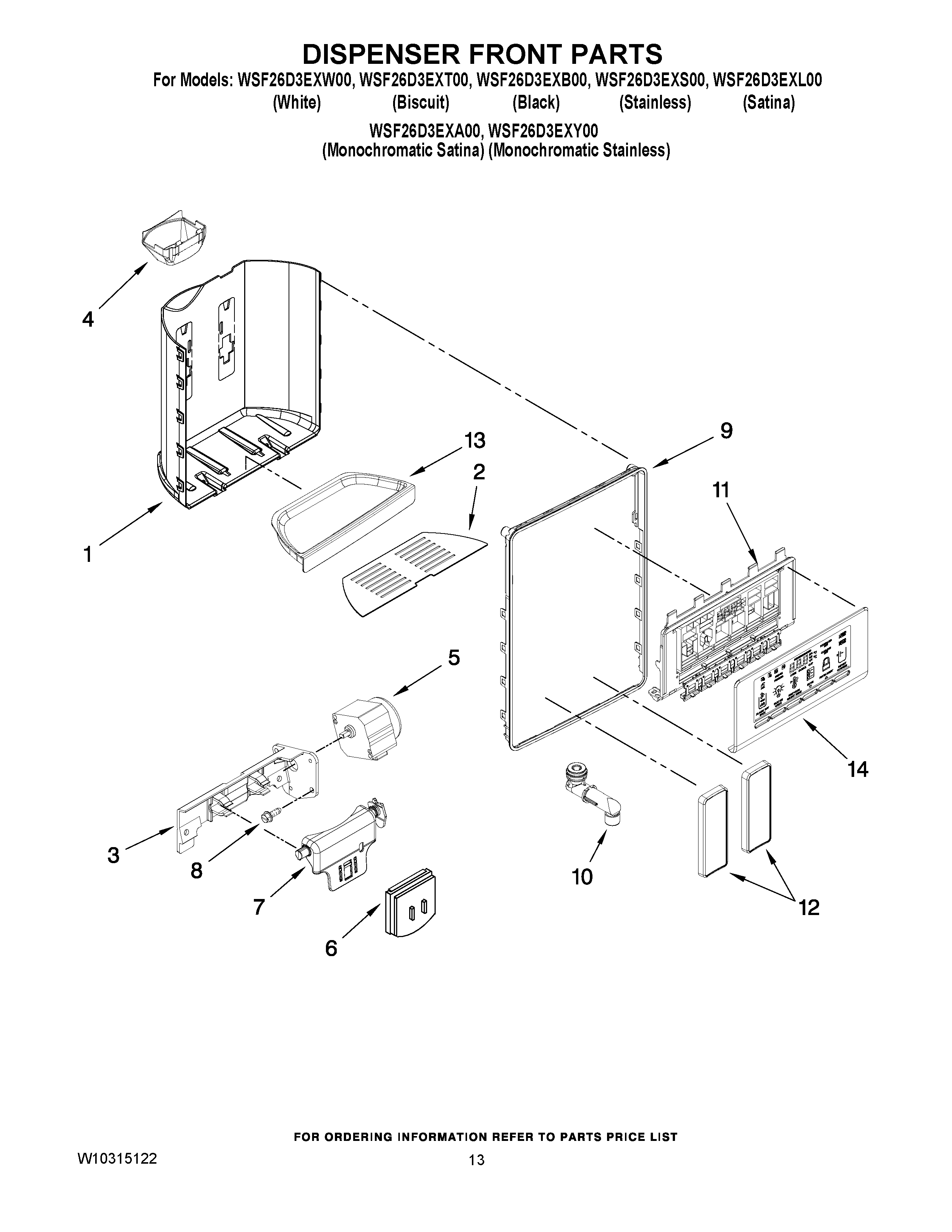

WSF26D3EXL00 08 – DISPENSER FRONT PARTS

WSF26D3EXL00 08 – DISPENSER FRONT PARTS

Written by

in

WSF26D3EXL00 08 – DISPENSER FRONT PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2GRATE, DRIP TRAY (BISCUIT)
2WPW10276223 Whirlpool Refrigerator Grille
2WPW10276221 Whirlpool Refrigerator Grille
2WPW10276220 Whirlpool Refrigerator Grille
3W10174827 Whirlpool Refrigerator Bracket
4WPW10435760 Whirlpool Refrigerator Ice Guide
5WPW10205978 Whirlpool Motor
6W10346235 Whirlpool Refrigerator Chute Door
7WPW10346124 Whirlpool Refrigerator Support
8WP4449745 Whirlpool Screw
9W10276227 Whirlpool Refrigerator Dispense Trim
9TRIM RING (BISCUIT)
9TRIM RING (BLACK)
9WPW10276186 Whirlpool Refrigerator Dispenser Trim
10WP2305235 Whirlpool Refrigerator Spigot
11WPW10372208-includeCORE Whirlpool WPW10372208 Refrigerator Electronic Control Board + Core
11WPW10276207-includeCORE Whirlpool WPW10276207 Refrigerator Electronic Control Board + Core
12WPW10370592 Whirlpool Refrigerator Pad
12WPW10370594 Whirlpool Refrigerator Pad
12WPW10370593 Whirlpool Refrigerator Pad
13W10276194 Whirlpool Refrigerator Drip Tray
13W11246841 Whirlpool Refrigerator Drip Tray
13W10276193 Whirlpool Refrigerator Disp Tray
13TRAY, HOUSING (BSICUIT)
14WPW10254285 Whirlpool Refrigerator Escutcheon
14W10276229 Whirlpool Refrigerator Escutcheon
