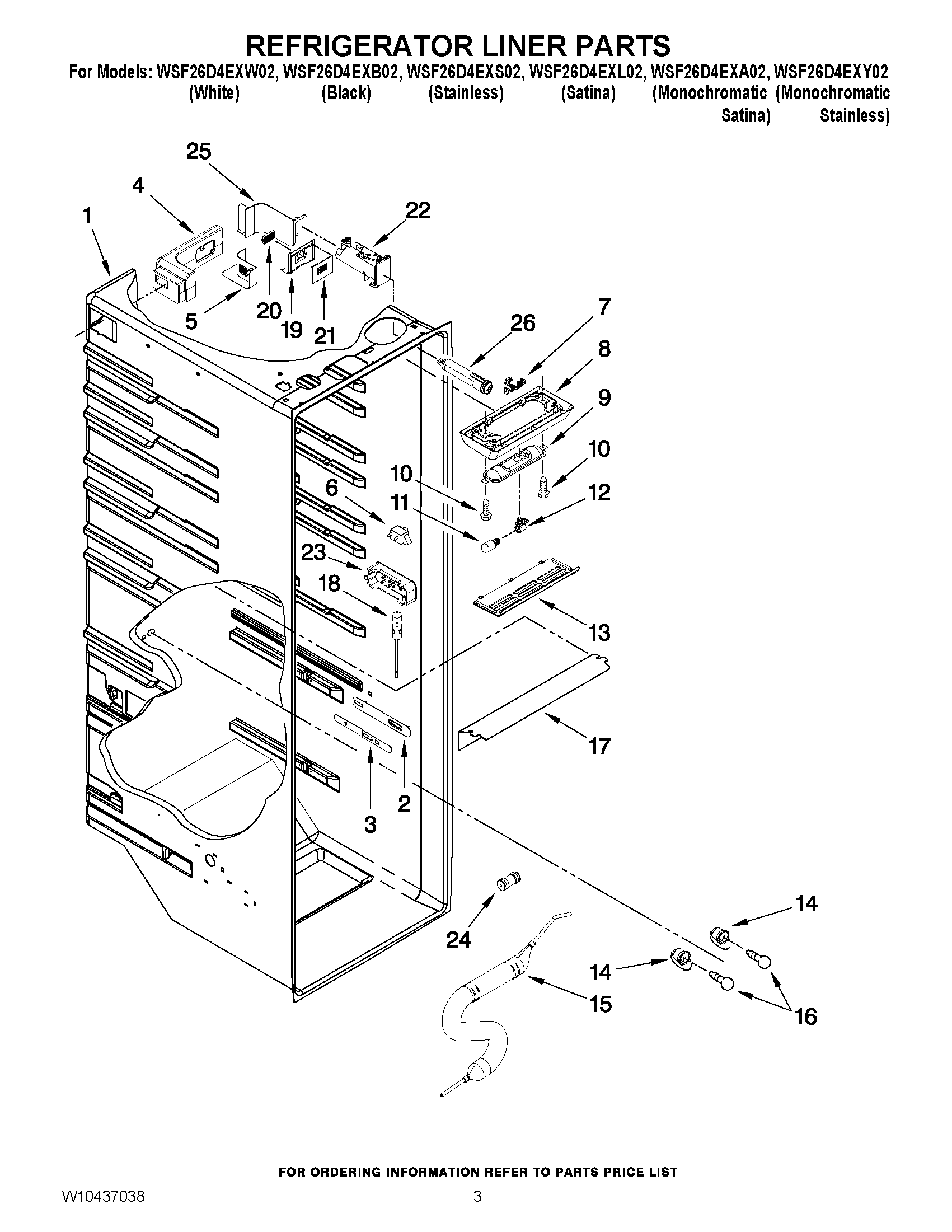

WSF26D4EXA02 02 – REFRIGERATOR LINER PARTS

WSF26D4EXA02 02 – REFRIGERATOR LINER PARTS

Written by

in

WSF26D4EXA02 02 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2W10260988 Whirlpool Refrigerator Escutcheon
3SLIDE, MEAT PAN CONTROL
4W10814173 Whirlpool Refrigerator Diffuser
5WPW10260409 Whirlpool Refrigerator Cover
6W11384469 Whirlpool Door Switch
7WIRE ASSY, TOP LIGHT
8W10280178 Whirlpool Refrigerator Trim
9SHIELD, HEAT
10WP3400906 Whirlpool Refrigerator Screw
11WPA3073101 Whirlpool Light Bulb
12WPW10191429 Whirlpool Refrigerator Socket
13W10280420 Whirlpool Refrigerator Light Lens
144387478 Whirlpool Refrigerator Light Socket
15W11613294 Whirlpool Refrigerator Reservoir
16W11679940 Whirlpool Refrigerator Light Bulb Assembly
17WPW10269099 Whirlpool Refrigerator Light Lens
18THERMISTOR
19W10342986 Whirlpool Refrigerator Cover
20W10311524 Whirlpool FreshFlow Refrigerator Air Filter
21COVER, AIR FILTER
22WPW10238123 Whirlpool Refrigerator Housing
23WPW10425252 Whirlpool Refrigerator Cover
24WPW10271543 Whirlpool Refrigerator Connector
25WPW10260405 Whirlpool Refrigerator Filter Cover
26EDR1RXD1 Whirlpool EveryDrop® Filter 1 Refrigerator Water
