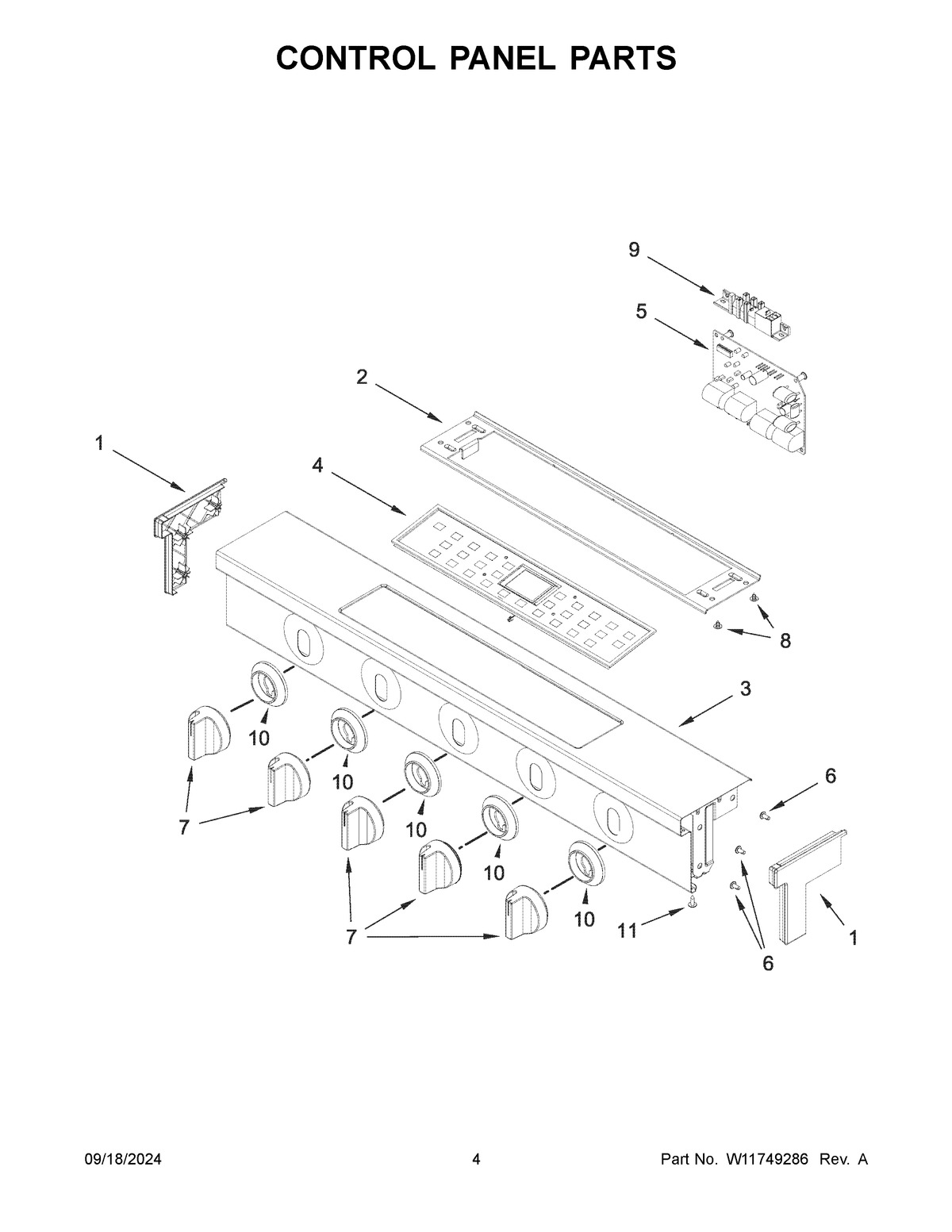

WSGS7530RV0 03 – CONTROL PANEL PARTS

Products

PositionProduct
1ENDCAP (BLACK, (LEFT))
1AENDCAP (BLACK, (RIGHT))
2MOUNTING, BRACKET
3PANEL, CONTROL (BLACK STAINLESS)
4USER INTERFACE ASSEMBLY
5W10898291 Whirlpool Spark Module
6W11245710 Whirlpool Refrigerator Screw
7KNOB, CONTROL (BLACK STAINLESS)
8WP355214 Whirlpool Screw
9W11703692 Whirlpool Speaker Module
10BEZEL (BLACK STAINLESS)
11SCREW
