WSM2420D1CC CONTROL PANEL

WSM2420D1CC CONTROL PANEL

Written by

in

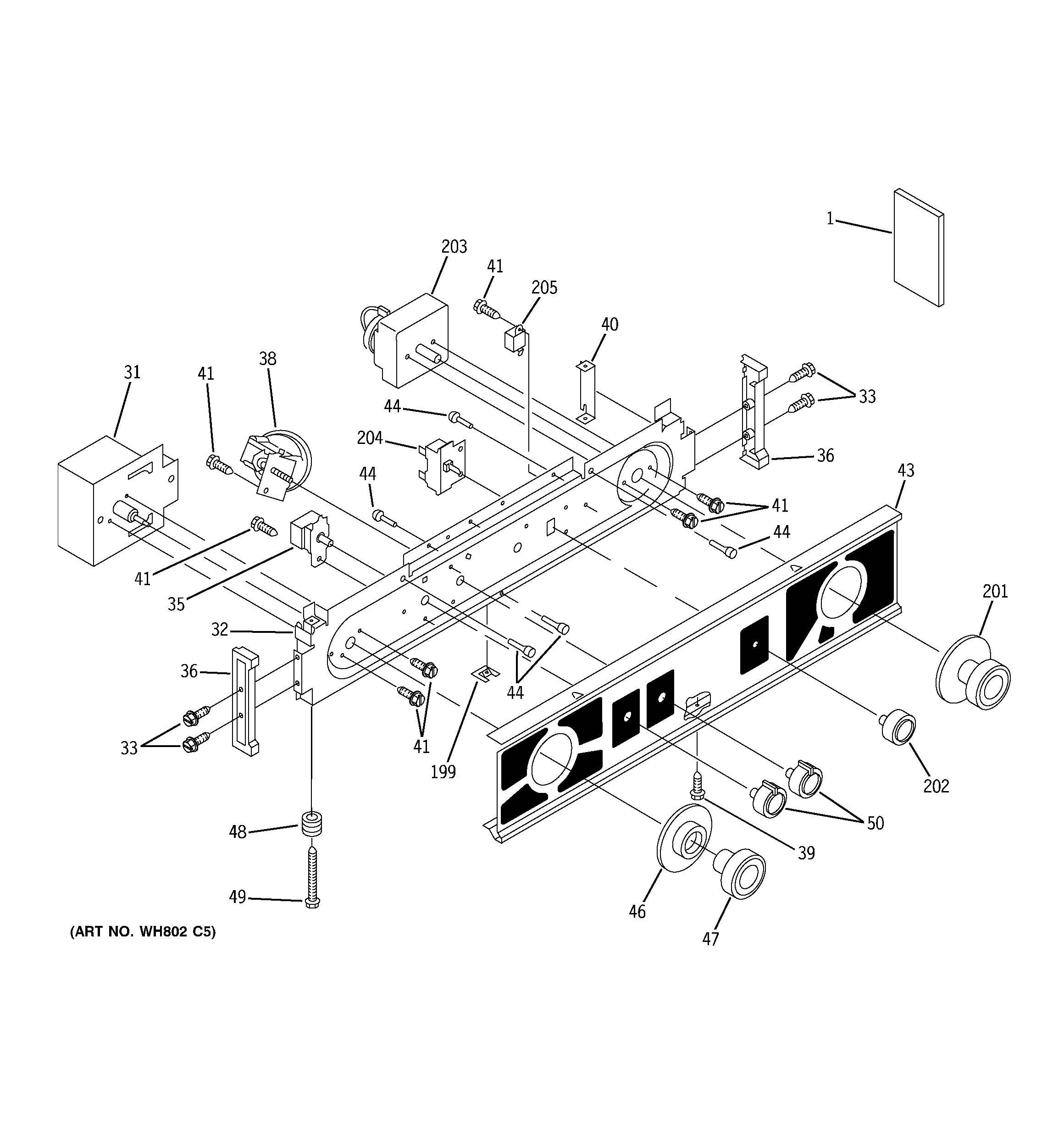

WSM2420D1CC CONTROL PANEL

Products

Position	Product
1	GEN 31-2729
1	GEN 49-9904
31	TIMER
32	BRACKET CONTROL.
33	GEN WR01X10136
35	GEN WH12X10098
36	GEN WH42X10390
38	GEN WH12X0951
39	GEN WH02X1178
40	GEN WH01X2693
41	SCREW 8-18 X 5/16
43	GEN WH42X10389
44	GEN WH01X2685
46	GEN WH01X10173
47	GEN WH01X10178
48	SPRING, CONSOLE LOCK
49	GEN WH02X10067
50	GEN WH01X10177
199	GEN WH01X2686
201	GEN WE01X10155
202	GEN WH01X10179
203	WE04X10051 GE Dryer Timer
204	SWITCH, START
205	GEN WH12X0954
