WSM2420D3WW WASHER/DRYER CONTROL PANEL

WSM2420D3WW WASHER/DRYER CONTROL PANEL

Written by

in

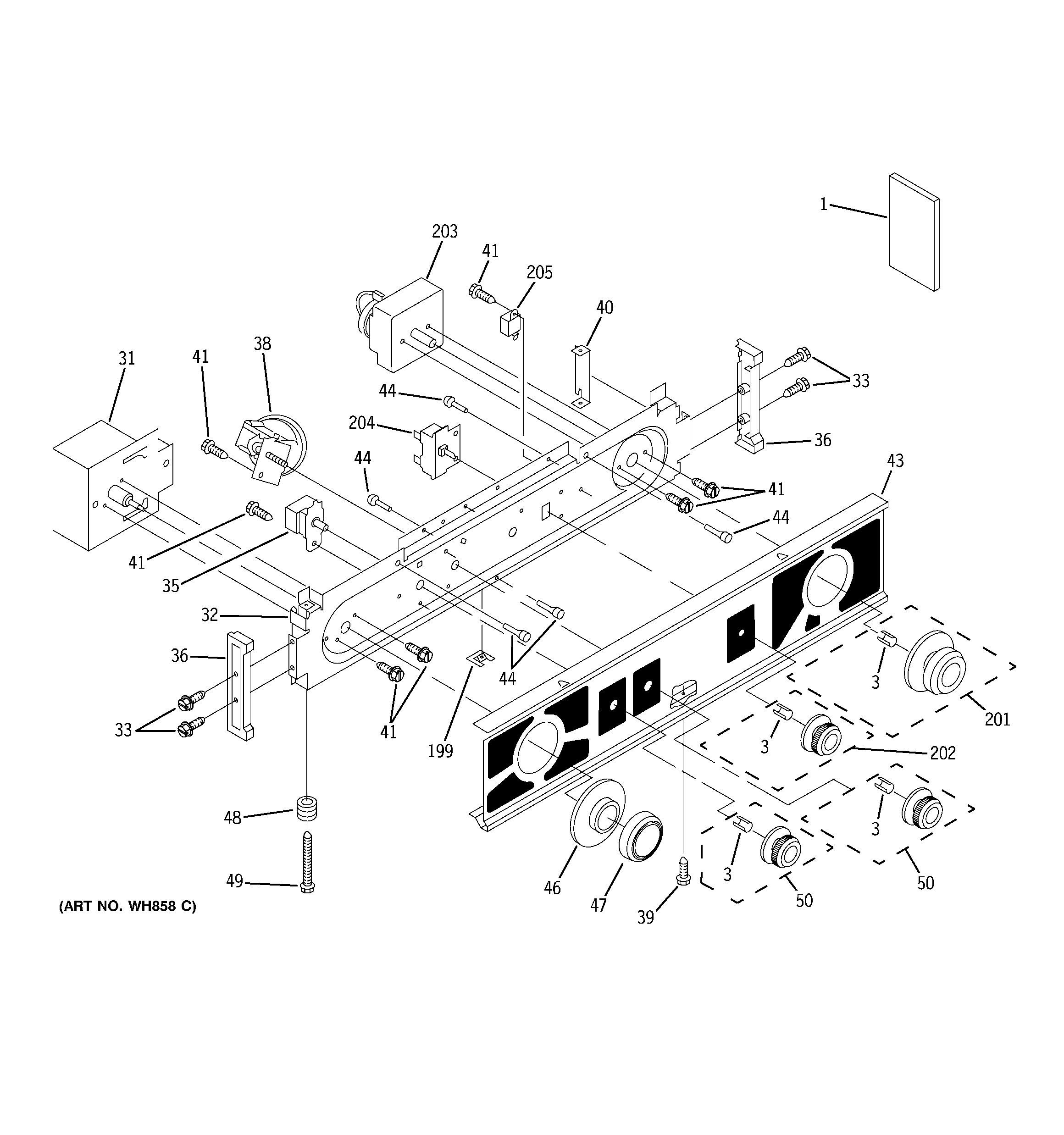

WSM2420D3WW WASHER/DRYER CONTROL PANEL

Products

PositionProduct
1GEN 31-2729
1GEN 49-9904
3GEN WH01X10297
31TIMER
32BRACKET CONTROL.
33GEN WR01X10136
35GEN WH12X10098
36END CAP
38GEN WH12X0951
39GEN WH02X1178
40GEN WH01X2693
41SCREW 8-18 X 5/16
43GEN WH42X2314
44GEN WH01X2685
46GEN WH11X10045
47GEN WH01X10290
48SPRING, CONSOLE LOCK
49GEN WH02X10067
50GEN WH01X10291
199GEN WH01X2686
201GEN WE01X10219
202GEN WH01X10292
203WE04X10051 GE Dryer Timer
204SWITCH, START
205GEN WH12X0954
