WSM2420D5WW WASHER/DRYER CONTROL PANEL – Aparts

WSM2420D5WW WASHER/DRYER CONTROL PANEL

Products

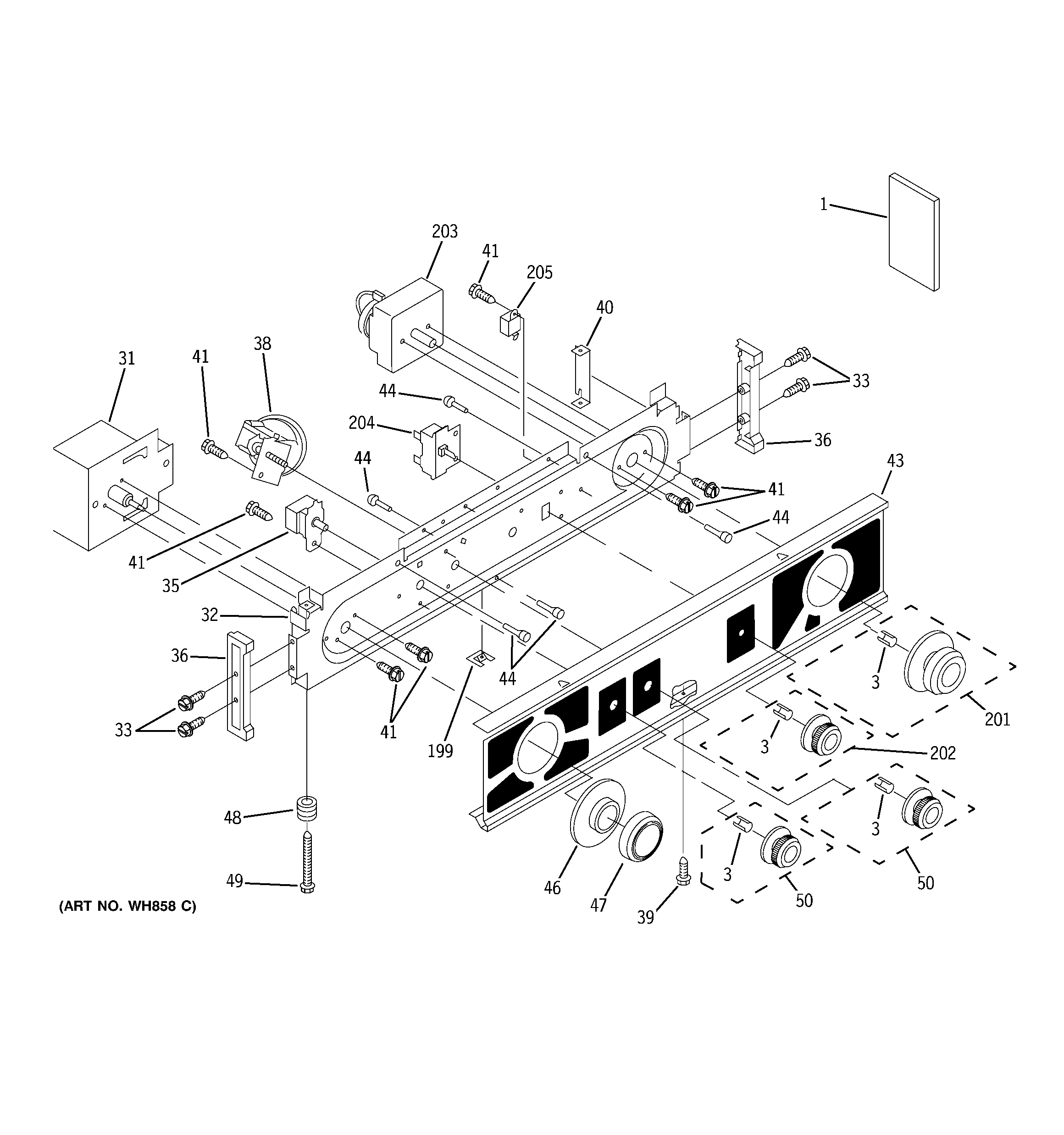

Position	Product
1	GEN 31-2729
1	GEN 49-9904
3	GEN WH01X10297
31	TIMER
32	BRACKET CONTROL.
33	GEN WR01X10136
35	GEN WH12X10098
36	END CAP
38	GEN WH12X10521
39	GEN WH02X1178
40	GEN WH01X2693
41	SCREW 8-18 X 5/16
43	GEN WH42X2314
44	GEN WH01X2685
46	GEN WH11X10045
47	GEN WH01X10290
48	SPRING, CONSOLE LOCK
49	GEN WH02X10067
50	GEN WH01X10291
199	GEN WH01X2686
201	GEN WE01X10219
202	GEN WH01X10292
203	WE04X10051 GE Dryer Timer
204	SWITCH, START
205	GEN WH12X0954
