WSM2420TAACC WASHER/DRYER CONTROL PANEL – Aparts

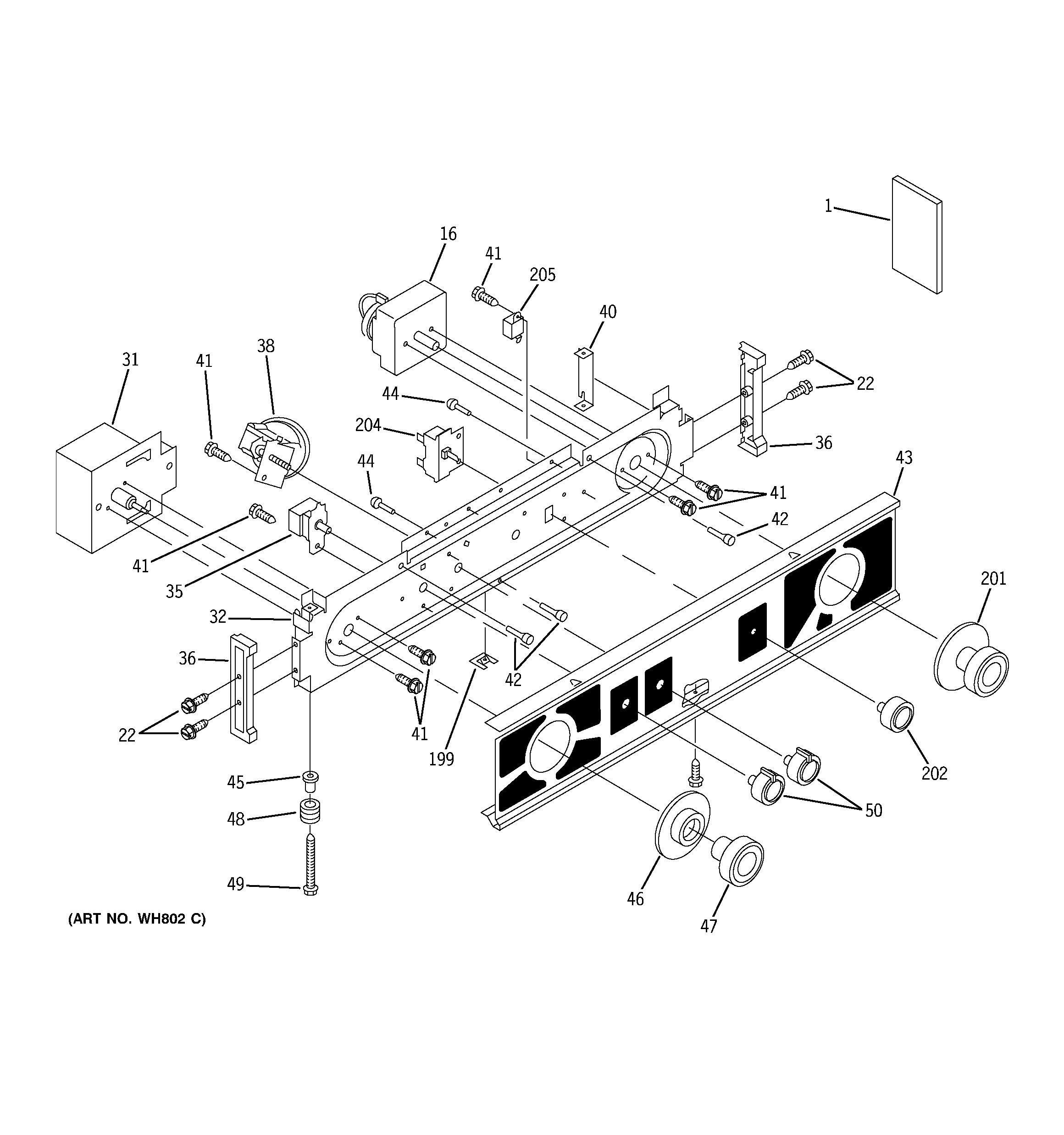

WSM2420TAACC WASHER/DRYER CONTROL PANEL

Products

Position	Product
1	GEN 31-2653
1	GEN 49-9799
1	GEN 31-2714
16	WE04X10051 GE Dryer Timer
22	GEN WR01X10136
31	TIMER
32	BRACKET CONTROL.
35	GEN WH12X10098
36	GEN WH42X10390
38	GEN WH12X0951
40	GEN WH01X2693
41	SCREW 8-18 X 5/16
42	GEN WH02X1159
43	GEN WH42X10389
44	GEN WH01X2685
45	GEN WH01X2683
46	GEN WH01X10173
47	GEN WH01X10178
48	SPRING, CONSOLE LOCK
49	GEN WH02X10067
50	GEN WH01X10177
199	GEN WH01X2686
201	GEN WE01X10155
202	GEN WH01X10179
204	SWITCH, START
205	GEN WH12X0954
