WSM2420TBAWW WASHER/DRYER CONTROL PANEL PARTS – Aparts

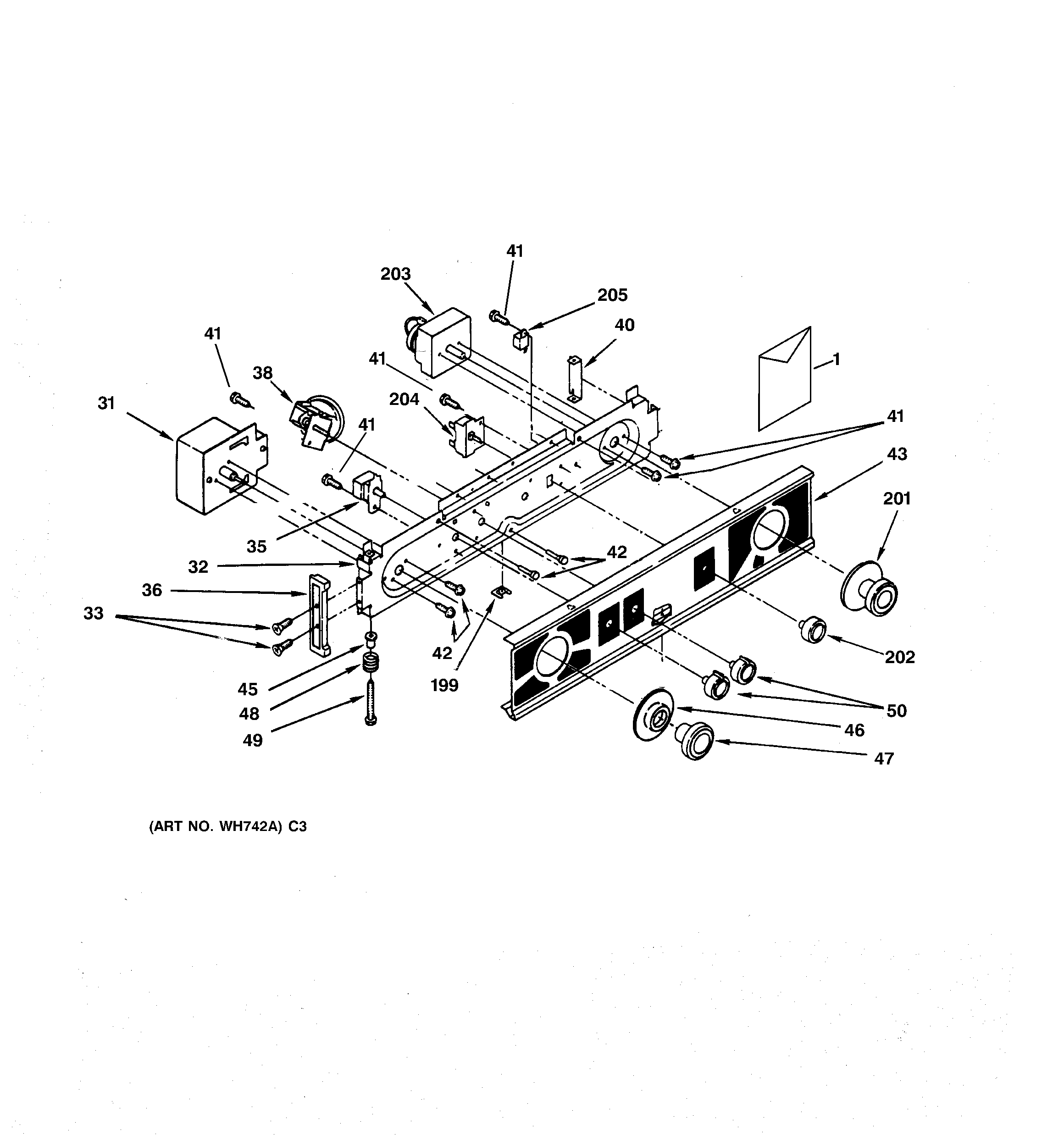

WSM2420TBAWW WASHER/DRYER CONTROL PANEL PARTS

Products

Position	Product
1	GEN 31-2729
1	GEN 31-2653
1	GEN 49-9799
31	TIMER
32	GEN WH16X10032
33	GEN WR01X10136
35	GEN WH12X10098
36	END CAP
38	GEN WH12X0951
40	GEN WH01X2693
41	SCREW 8-18 X 5/16
42	GEN WH02X1159
43	GEN WH42X2314
45	GEN WH01X2683
46	GEN WH01X2689
47	GEN WH01X2691
48	SPRING, CONSOLE LOCK
49	GEN WH02X10067
50	GEN WH01X2679
199	GEN WH01X2686
201	GEN WE01X1199
202	GEN WH01X2687
203	WE04X10051 GE Dryer Timer
204	GEN WH12X10100
205	GEN WH12X0954
