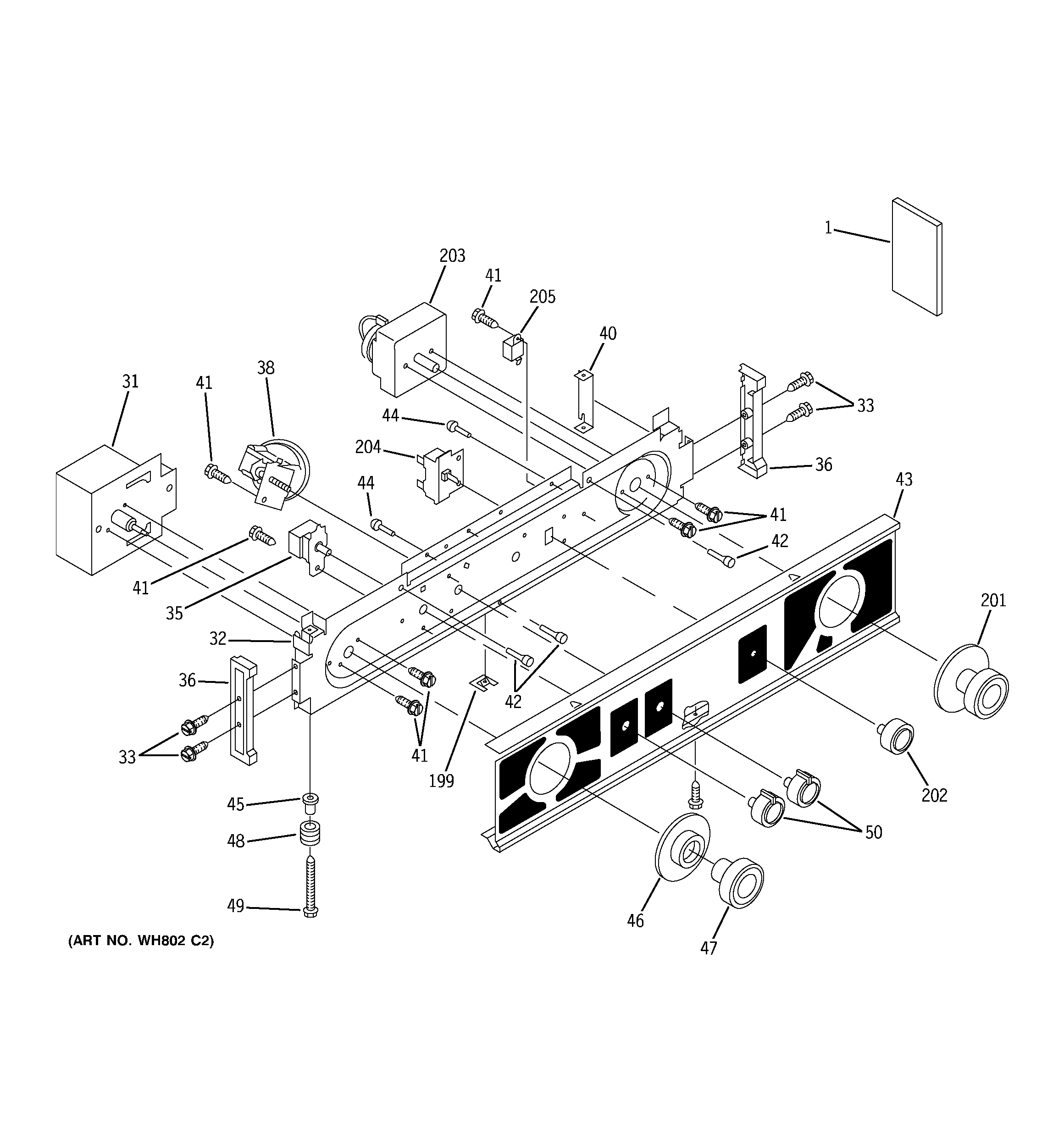

WSM2480TCAWW WASHER/DRYER CONTROL PANEL

WSM2480TCAWW WASHER/DRYER CONTROL PANEL

Written by

in

WSM2480TCAWW WASHER/DRYER CONTROL PANEL

Products

Position	Product
1	GEN 49-9904
1	GEN 31-2730
1	GEN 31-2654
31	TIMER
32	BRACKET CONTROL.
33	GEN WR01X10136
35	GEN WH12X10098
36	END CAP
38	GEN WH12X0951
40	GEN WH01X2693
41	SCREW 8-18 X 5/16
42	GEN WH02X1159
43	GEN WH42X2314
44	GEN WH01X2685
45	GEN WH01X2683
46	GEN WH11X10034
47	GEN WH01X2691
48	SPRING, CONSOLE LOCK
49	GEN WH02X1179
50	GEN WH01X2679
199	GEN WH01X2686
201	GEN WE01X1199
202	GEN WH01X2687
203	WE04X10051 GE Dryer Timer
204	SWITCH, START
205	GEN WH12X0954
