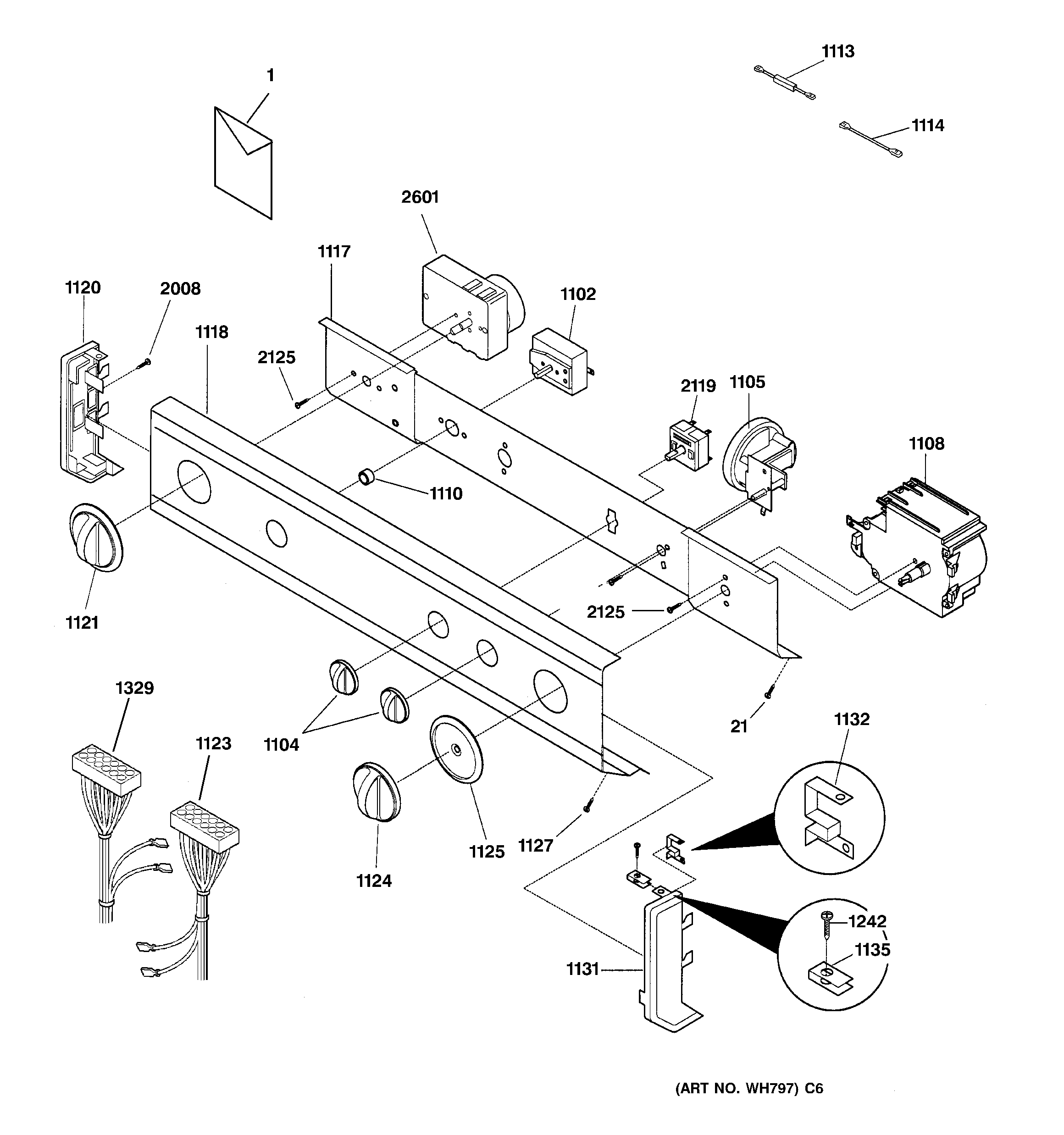

WSM2700DAWCC CONTROL PANEL
Products
| Position | Product |
|---|---|
| 1 | GEN 49-90013 |
| 1 | MINI MANUAL WASHER |
| 1 | GEN 31-2810 |
| 1 | GEN 31-15477 |
| 21 | SCREW PANEL TO EVAP |
| 1102 | GEN WE04X10057 |
| 1104 | WE01X10159 GE Rotary Knob |
| 1105 | PRESSURE SWITCH |
| 1108 | WH12X10164 GE Timer |
| 1110 | GEN WE01X10161 |
| 1113 | GEN WE04X0744 |
| 1114 | RESISTOR-POWER, 4.4K |
| 1117 | BRKT-CONT MTG |
| 1118 | GEN WH42X10431 |
| 1120 | GEN WH42X10429 |
| 1121 | KNOB/IND TIMER |
| 1123 | GEN WH08X10015 |
| 1124 | KNOB, WASHER TIMER CC |
| 1125 | GEN WH11X10037 |
| 1127 | SCREW 6-20 X .230 |
| 1131 | GEN WH42X10430 |
| 1132 | GEN WH02X1129 |
| 1135 | GEN WH02X1131 |
| 1242 | SCREW, 8-18 AB X .44 |
| 1329 | GEN WH08X10013 |
| 2008 | SCREW PAN HD.8-18ABX.375 |
| 2119 | GEN WH12X10036 |
| 2125 | GEN WH02X1150 |
| 2601 | WE4X775 GE Timer Assembly |
