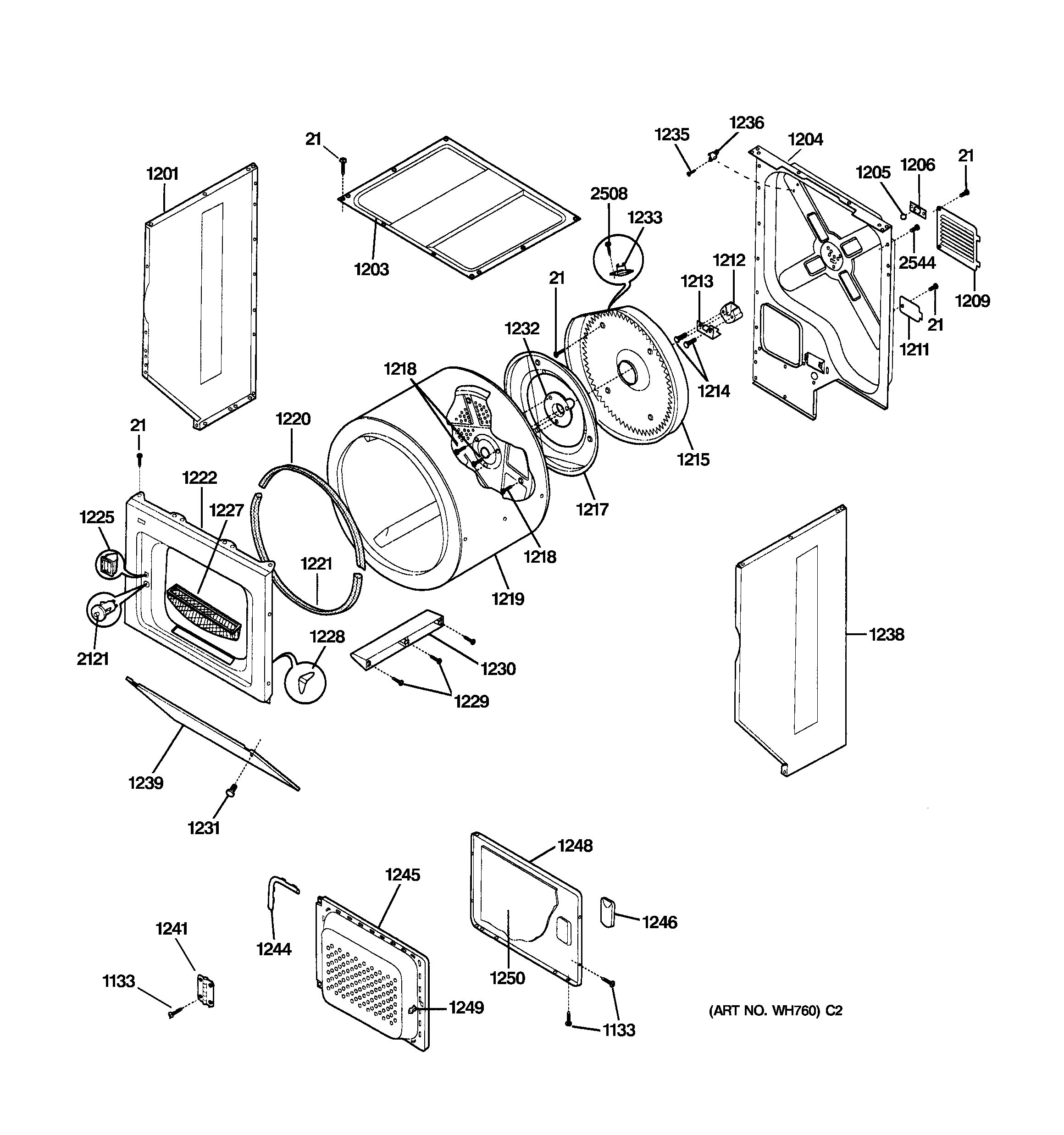

WSM2700TDWAB DRYER-CABINET, DRUM & HEATER

WSM2700TDWAB DRYER-CABINET, DRUM & HEATER

Written by

in

WSM2700TDWAB DRYER-CABINET, DRUM & HEATER

Products

PositionProduct
21SCREW PANEL TO EVAP
1133SCREW, 8-18 AB X .44
1201GEN WE20X0767
1203GEN WE20X0741
1204GEN WE20X10015
1205GEN WE01X1152
1206CLIP BALL
1209GEN WE20X0743
1211GEN WE20X0754
1212GEN WE03X0070
1213BRACKET BEARING
1214GEN WE02X10005
1215WE11X99 GE Heater and Housing Assembly
1217BAFFLE-HEATER
1218SCREW 10-16 X.375
1219GEN WE21X10004
1220WE03X10001 GE Drum Glide
1221GEN WE09X0105
1222GEN WE20X10007
1225CATCH DOOR
1227GEN WE18X0053
1228GEN WE02X0361
1229GEN WE02X10007
1230GEN WE21X0069
1231GEN WE02X10002
1232WE13X10011 GE Washer Rear Bearing Shaft Support
1233WE4X757 GE Dryer High Limit Safety Thermostat
1235SCREW PPH B 6-20 X .19
1236LIMITER THERMAL
1238GEN WE20X0769
1239GEN WE20X0773
1241GEN WE01X10012
1244GASKET DOOR
1245GEN WE10X10006
1246GEN WE01X10005
1248GEN WE10X10007
1249STRIKE DOOR
1250GEN WE10X0322
2121GEN WE04X10003
