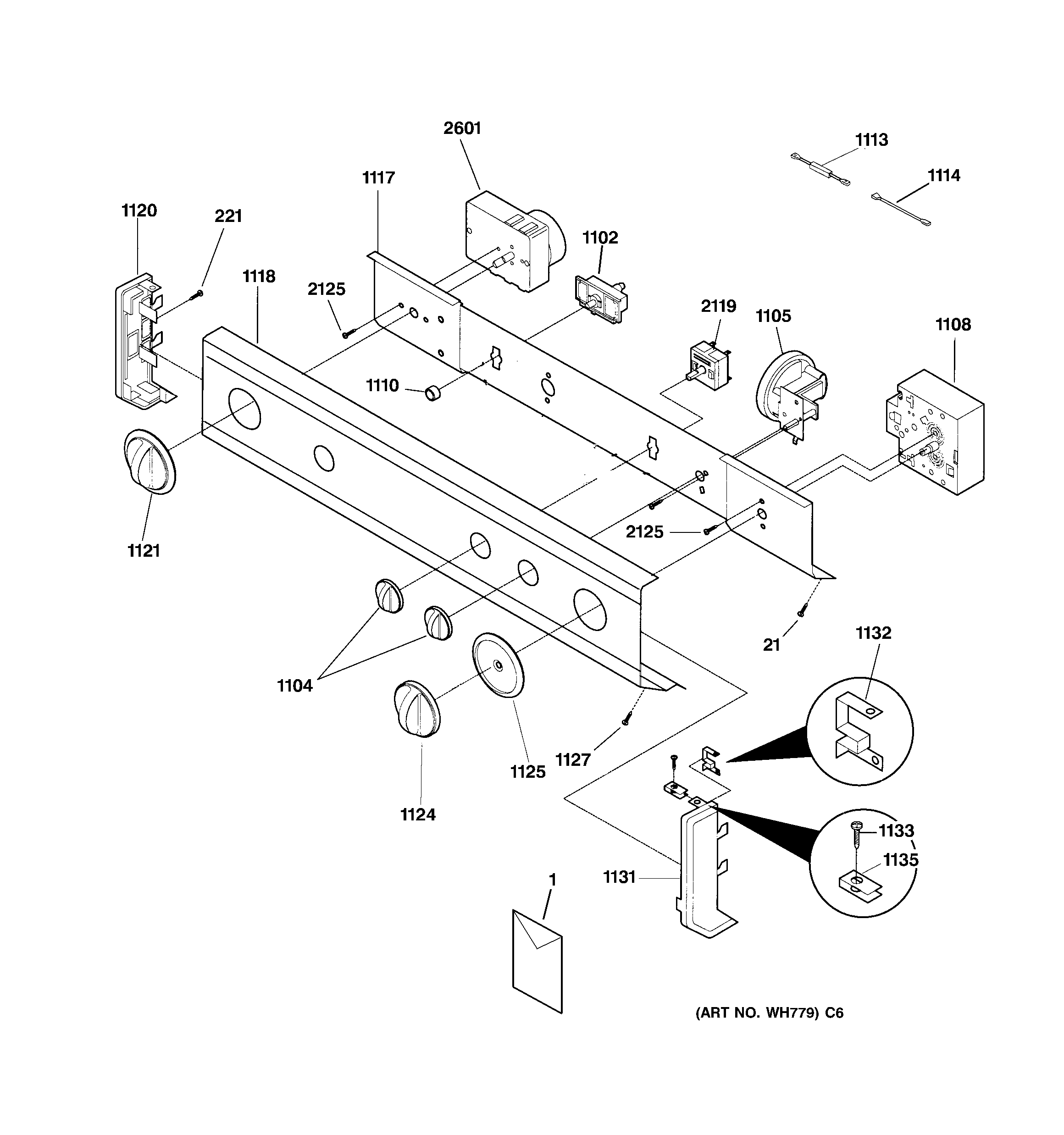

WSM2700WAWCC CONSOLE & CONTROLS – Aparts

WSM2700WAWCC CONSOLE & CONTROLS

Products

Position	Product
1	MINI MANUAL WASHER
1	GEN 31-15477
1	GEN 49-90013
1	GEN 31-2810
21	SCREW PANEL TO EVAP
221	SCREW PAN HD.8-18ABX.375
1102	GEN WE04X10057
1104	WE01X10159 GE Rotary Knob
1105	PRESSURE SWITCH
1108	WH12X10164 GE Timer
1110	GEN WE01X10161
1113	GEN WE04X0744
1114	RESISTOR-POWER, 4.4K
1117	BRKT-CONT MTG
1118	GEN WH42X10431
1120	GEN WH42X10429
1121	KNOB/IND TIMER
1124	KNOB, WASHER TIMER CC
1125	GEN WH11X10037
1127	SCREW 6-20 X .230
1131	GEN WH42X10430
1132	GEN WH02X1129
1133	SCREW, 8-18 AB X .44
1135	GEN WH02X1131
2119	GEN WH12X10036
2125	GEN WH02X1150
2601	WE4X775 GE Timer Assembly
