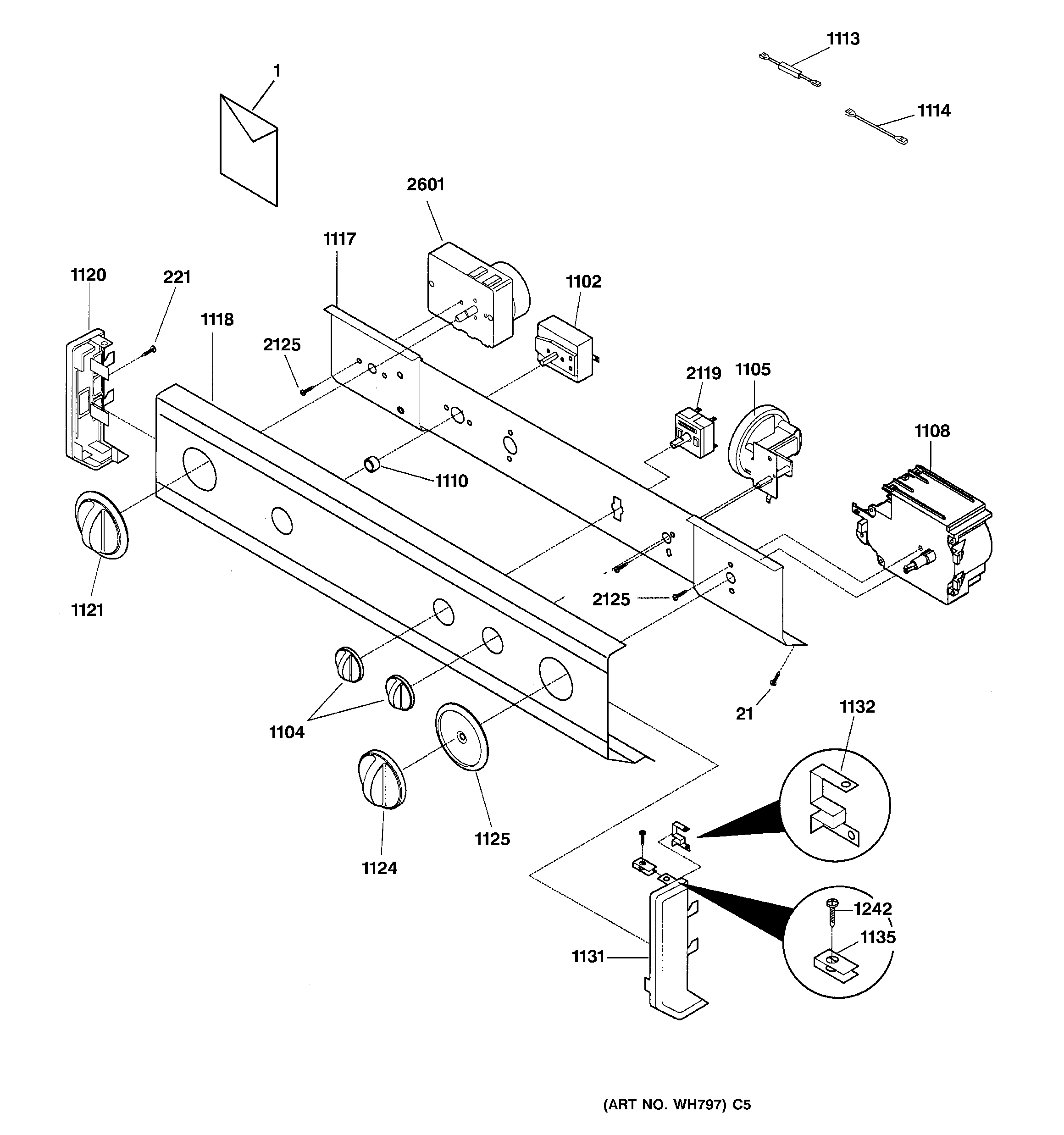

WSM2700WBAA CONTROL PANEL

WSM2700WBAA CONTROL PANEL

Written by

in

WSM2700WBAA CONTROL PANEL

Products

PositionProduct
1GEN 49-90013
1MINI MANUAL WASHER
1GEN 31-2810
1GEN 31-15477
21SCREW PANEL TO EVAP
221SCREW PAN HD.8-18ABX.375
1102GEN WE04X10057
1104KNOB-ROTARY,ALMOND
1105PRESSURE SWITCH
1108WH12X10164 GE Timer
1110BUTTON-START SWITCH,ALMO
1113GEN WE04X0744
1114RESISTOR-POWER, 4.4K
1117BRKT-CONT MTG PUSH/START
1118CONTROL PANEL
1120END CAP LH, AD
1121KNOB-TIMER,DRYER AD
1124KNOB-ALM-LC-WSH TIMER
1125GEN WH01X10127
1131END CAP, RH AD
1132GEN WH02X1129
1135GEN WH02X1131
1242SCREW, 8-18 AB X .44
2119GEN WH12X10036
2125GEN WH02X1150
2601WE4X775 GE Timer Assembly
