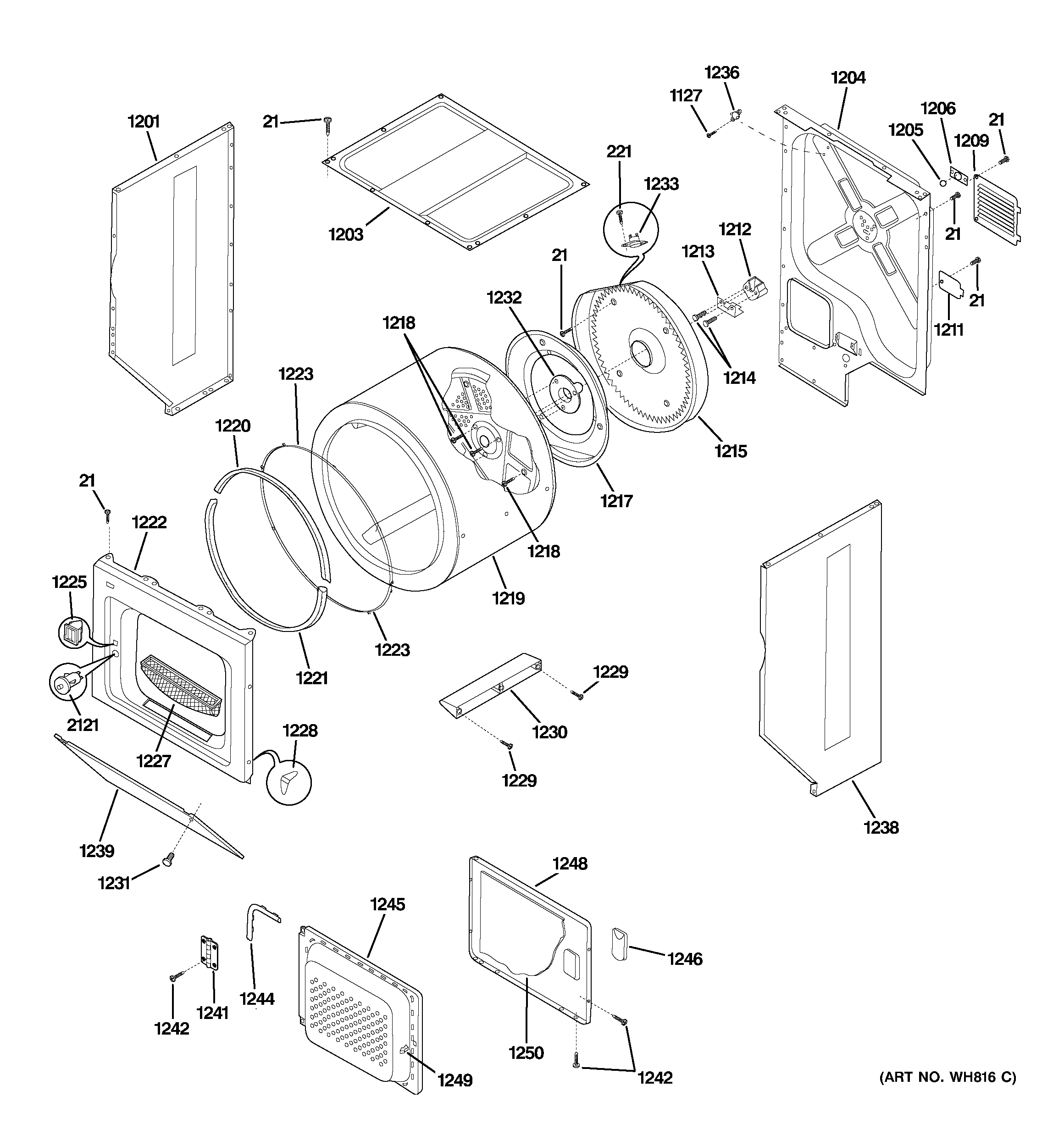

WSM2700WBWCC DRYER UPPER CABINET, DRUM & HEATER

WSM2700WBWCC DRYER UPPER CABINET, DRUM & HEATER

Written by

in

WSM2700WBWCC DRYER UPPER CABINET, DRUM & HEATER

Products

PositionProduct
21SCREW PANEL TO EVAP
221SCREW PAN HD.8-18ABX.375
1127SCREW 6-20 X .230
1201GEN WE20X10067
1203GEN WE20X10064
1204GEN WE20X10015
1205GEN WE01X1152
1206CLIP BALL
1209GEN WE20X0743
1211GEN WE20X0754
1212GEN WE03X10002
1213BRACKET BEARING
1214GEN WE02X10005
1215WE11X99 GE Heater and Housing Assembly
1217BAFFLE-HEATER
1218SCREW 10-16 X.375
1219GEN WE21X10014
1220GEN WE09X10013
1221GEN WE09X10014
1222GEN WE20X10065
1223WE03X10007 GE Bearing
1225CATCH DOOR
1227GEN WE18X10003
1228GEN WE02X0361
1229GEN WE02X10007
1230GEN WE21X0069
1231GEN WE02X10002
1232WE13X10011 GE Washer Rear Bearing Shaft Support
1233WE4X757 GE Dryer High Limit Safety Thermostat
1236WE04X10094 GE Thermal Limiter
1238GEN WE20X10068
1239GEN WE20X10066
1241GEN WE01X10012
1242SCREW, 8-18 AB X .44
1244GASKET DOOR
1245GEN WE10X10004
1246GEN WE01X10162
1248GEN WE10X10012
1249STRIKE DOOR
1250GEN WE10X0322
2121GEN WE04X10003
