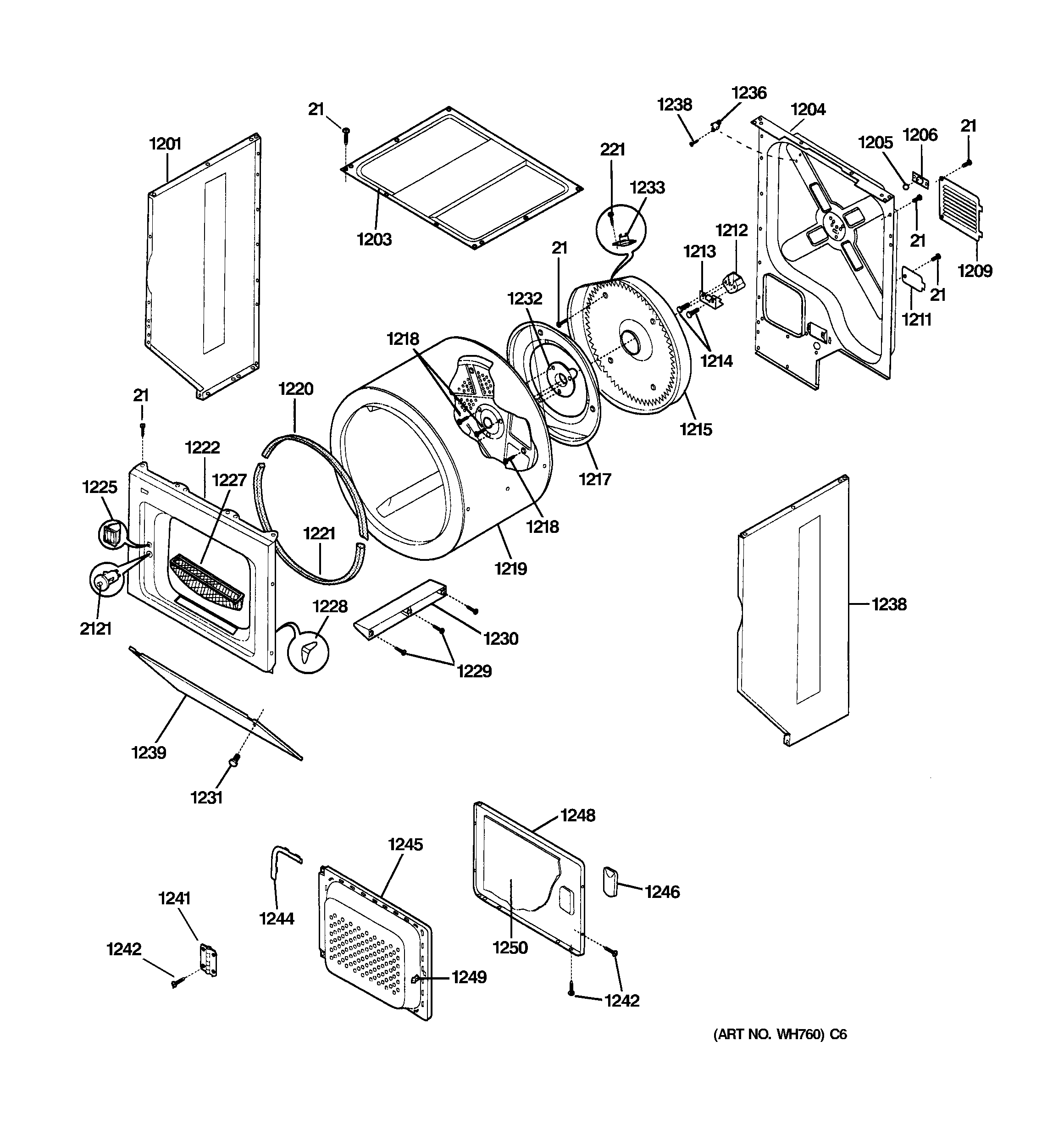

WSM2700WBWW DRYER UPPER CABINET, DRUM & HEATER
Products
| Position | Product |
|---|---|
| 21 | SCREW PANEL TO EVAP |
| 221 | SCREW PAN HD.8-18ABX.375 |
| 1201 | GEN WE20X0766 |
| 1203 | GEN WE20X0741 |
| 1204 | GEN WE20X10015 |
| 1205 | GEN WE01X1152 |
| 1206 | CLIP BALL |
| 1209 | GEN WE20X0743 |
| 1211 | GEN WE20X0754 |
| 1212 | GEN WE03X10002 |
| 1213 | BRACKET BEARING |
| 1214 | GEN WE02X10005 |
| 1215 | WE11X99 GE Heater and Housing Assembly |
| 1217 | BAFFLE-HEATER |
| 1218 | SCREW 10-16 X.375 |
| 1219 | GEN WE21X10006 |
| 1220 | WE03X10001 GE Drum Glide |
| 1221 | GEN WE09X0105 |
| 1222 | GEN WE20X10006 |
| 1225 | CATCH DOOR |
| 1227 | GEN WE18X10003 |
| 1228 | GEN WE02X0361 |
| 1229 | GEN WE02X10007 |
| 1230 | GEN WE21X0069 |
| 1231 | GEN WE02X10002 |
| 1232 | WE13X10011 GE Washer Rear Bearing Shaft Support |
| 1233 | WE4X757 GE Dryer High Limit Safety Thermostat |
| 1236 | LIMITER THERMAL |
| 1238 | PANEL SIDE RIGHT WH |
| 1238 | SCREW 6-20 X .230 |
| 1239 | GEN WE20X0772 |
| 1241 | GEN WE01X10012 |
| 1242 | SCREW, 8-18 AB X .44 |
| 1244 | GASKET DOOR |
| 1245 | GEN WE10X10004 |
| 1246 | GEN WE01X10050 |
| 1248 | DOOR-OUTER WH |
| 1249 | STRIKE DOOR |
| 1250 | GEN WE10X0322 |
| 2121 | GEN WE04X10003 |
