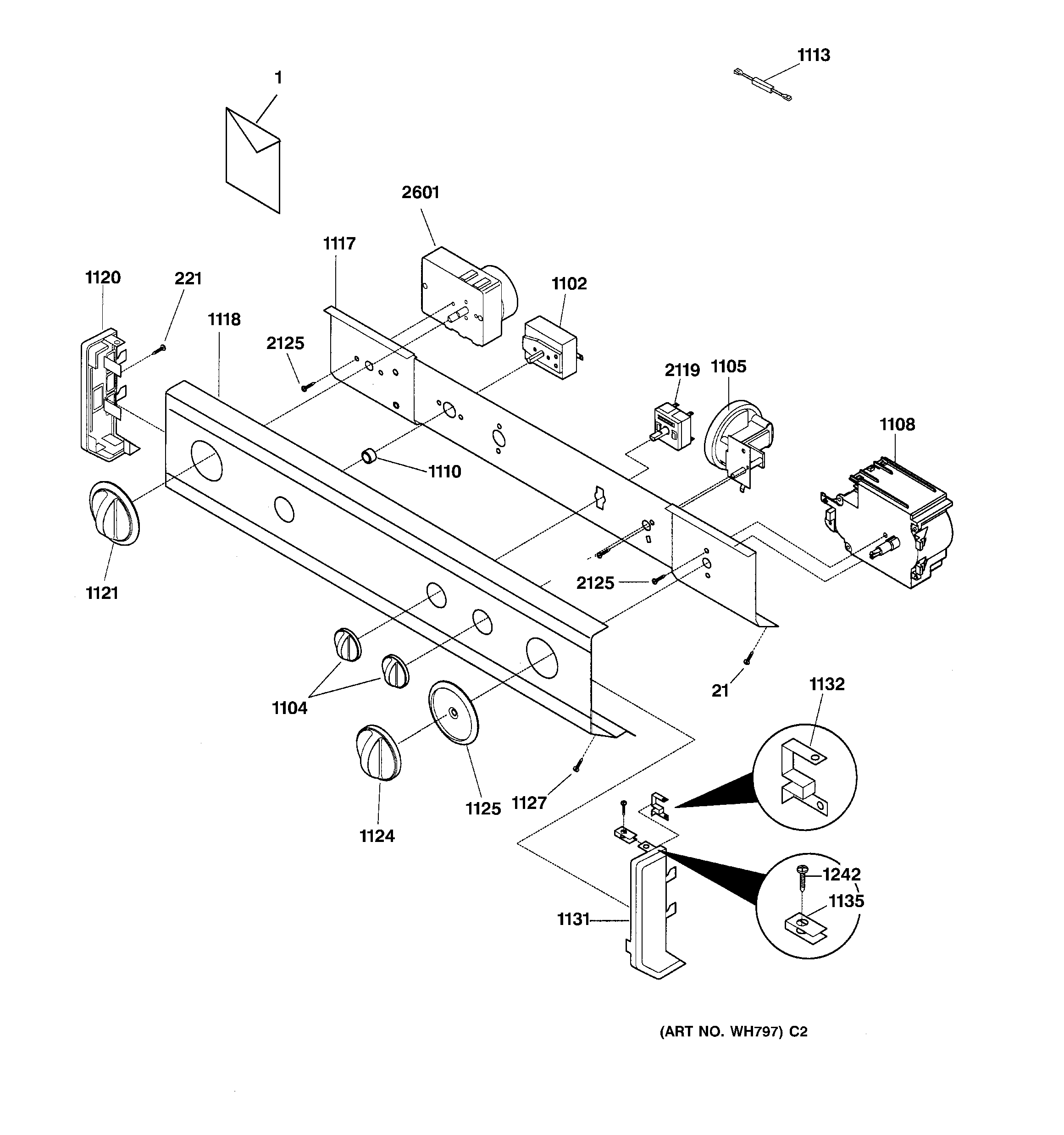

WSM2780WBAA CONTROL PANEL

WSM2780WBAA CONTROL PANEL

Written by

in

WSM2780WBAA CONTROL PANEL

Products

PositionProduct
1GEN 49-90013
1GEN 31-15481
1GEN 31-15478
1GEN 31-15480
21SCREW PANEL TO EVAP
221SCREW PAN HD.8-18ABX.375
1102GEN WE04X10057
1104KNOB-ROTARY,ALMOND
1105PRESSURE SWITCH
1108WH12X10164 GE Timer
1110BUTTON-START SWITCH,ALMO
1113GEN WE04X0744
1117GEN WH16X10042
1118GEN WH42X10291
1120END CAP LH, AD
1121KNOB-TIMER,DRYER AD
1124GEN WH01X10126
1125GEN WH01X10127
1127GEN WH02X1128
1131END CAP, RH AD
1132GEN WH02X1129
1135GEN WH02X1131
1242SCREW, 8-18 AB X .44
2119GEN WH12X10036
2125GEN WH02X1150
2601WE04X10005 GE Dryer Timer
