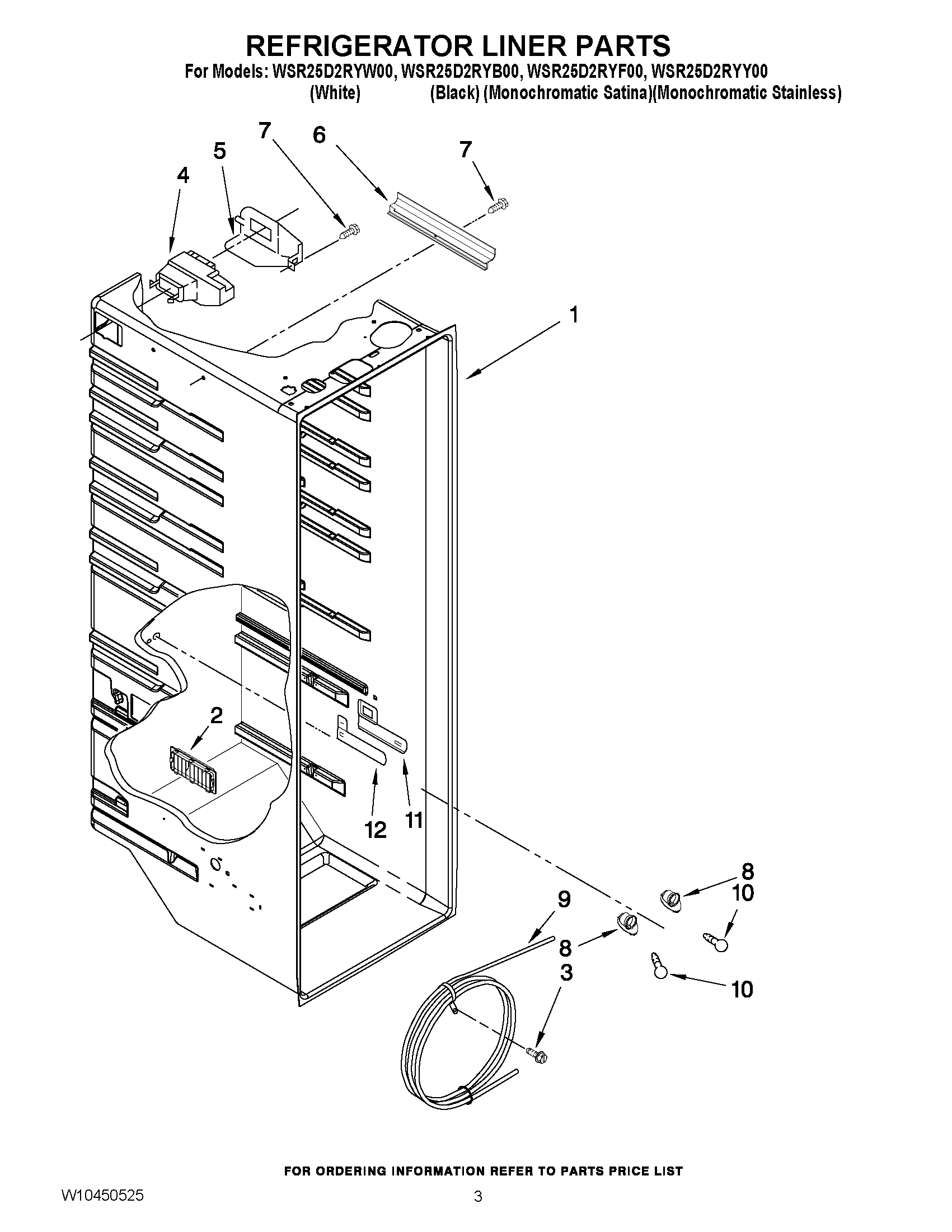

WSR25D2RYB00 02 – REFRIGERATOR LINER PARTS

WSR25D2RYB00 02 – REFRIGERATOR LINER PARTS

Written by

in

WSR25D2RYB00 02 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2Louver
3Screw (2)
4WPW10151375 Whirlpool Refrigerator Diffuser
52152019 Whirlpool Refrigerator Cover
62150331 Whirlpool Refrigerator Wire Cover
7W10759522 Whirlpool Screw
84387478 Whirlpool Refrigerator Light Socket
9RESERVOIR
10W11679940 Whirlpool Refrigerator Light Bulb Assembly
11W10175967 Whirlpool Refrigerator Escutcheon
122182757 Whirlpool Refrigerator Slide
