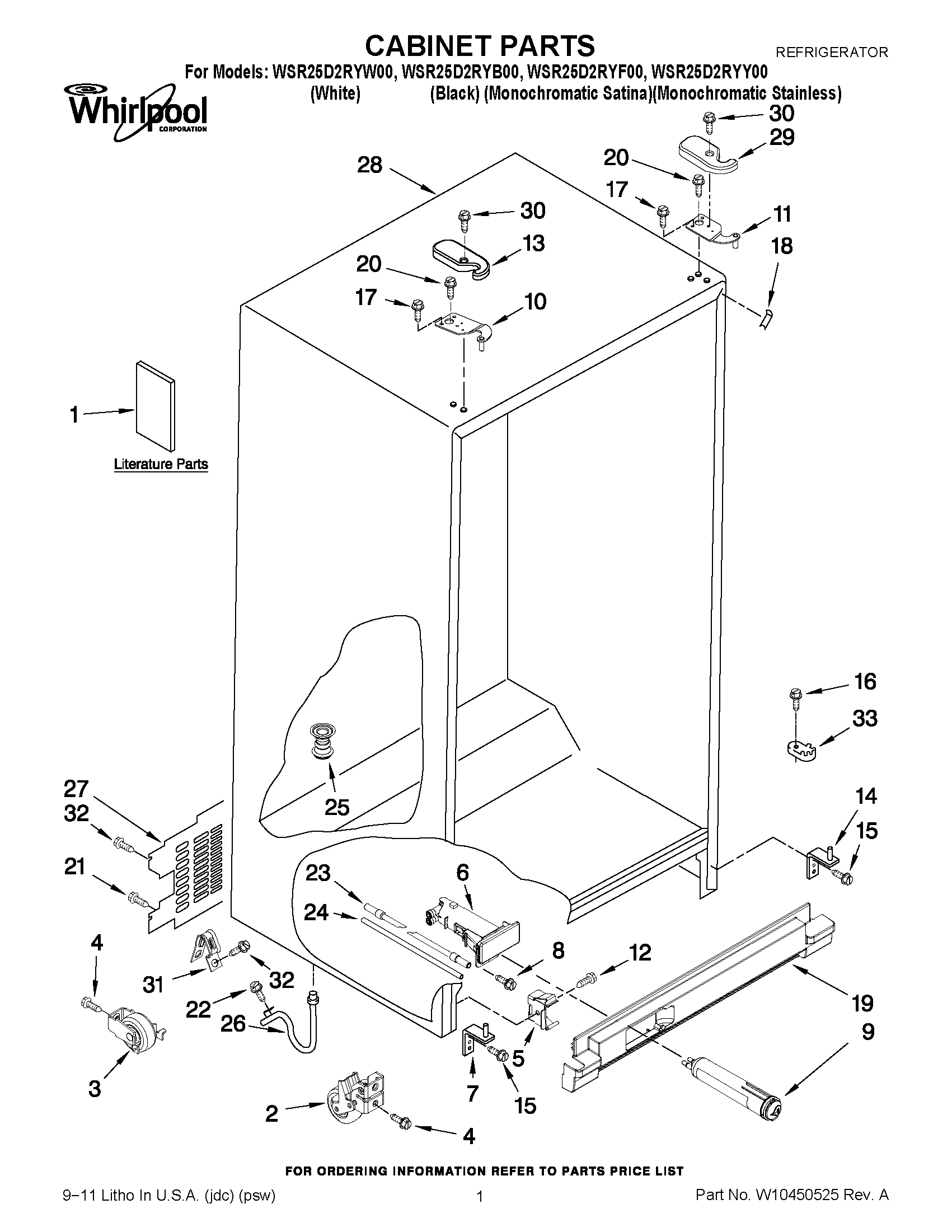

WSR25D2RYF00 01 – CABINET PARTS

WSR25D2RYF00 01 – CABINET PARTS

Written by

in

WSR25D2RYF00 01 – CABINET PARTS

Products

PositionProduct
1SERVICE & WIRING SHEET
1ENERGY GUIDE
1Modular Icemaker Service Sheet
1USE & CARE GUIDE
1INSTRUCTION SHEET, DOOR REMOVAL
2Front Roller (2)
3WPW10250570 Whirlpool Refrigerator Cabinet Roller
4WP489427 Whirlpool Refrigerator Screw
5WP2155013 Whirlpool Refrigerator Clip
6HOUSING-WATER FILTER
6HOUSING-WATER FILTER
6W10862456 Whirlpool Water Filter Housing
72303141 Whirlpool Refrigerator Door Hinge
8WP489500 Whirlpool Refrigerator Screw
9EDR1RXD1 Whirlpool EveryDrop® Filter 1 Refrigerator Water
10HINGE, TOP (FC)
11W10242649 Whirlpool Refrigerator Door Hinge
12WPW10141604 Whirlpool Screw
13Hinge Cover (RC) (White)
13Hinge Cover (RC) (Apollo Grey)
13Hinge Cover (RC) (Black)
14ADJUSTABLE HINGE CAM ASSY
16WP489483 Whirlpool Screw
17W10336489 Whirlpool Refrigerator Screw
18Filler, Wrapper (Apollo Grey)
18Filler, Wrapper (White)
18Filler, Wrapper (Black)
19GRILLE (BLACK)
19GRILLE (WHITE)
19GRILLE (GREY)
20WP489497 Whirlpool Screw
21WP488488 Whirlpool Refrigerator Screw
22WP489464 Whirlpool Refrigerator Screw
23WPW10350007 Whirlpool Refrigerator Water Tube
24WPW10350006 Whirlpool Refrigerator Water Tube
25W10856122 Whirlpool Refrigerator Screw
25W11566763 Whirlpool Fitting
26W11512417 Whirlpool Drain Connector
27WP2188755 Whirlpool Rear Panel
28CABINET (NOT A SERVICEABLE PART)
29Hinge Cover (FC) (White)
29Hinge Cover (FC) (Black)
29Hinge Cover (FC) (Apollo Grey)
30WP8281227 Whirlpool Screw
31549193 Whirlpool Refrigerator Power Clamp
32SCREW
33WP2223751 Whirlpool Refrigerator Door Cam
