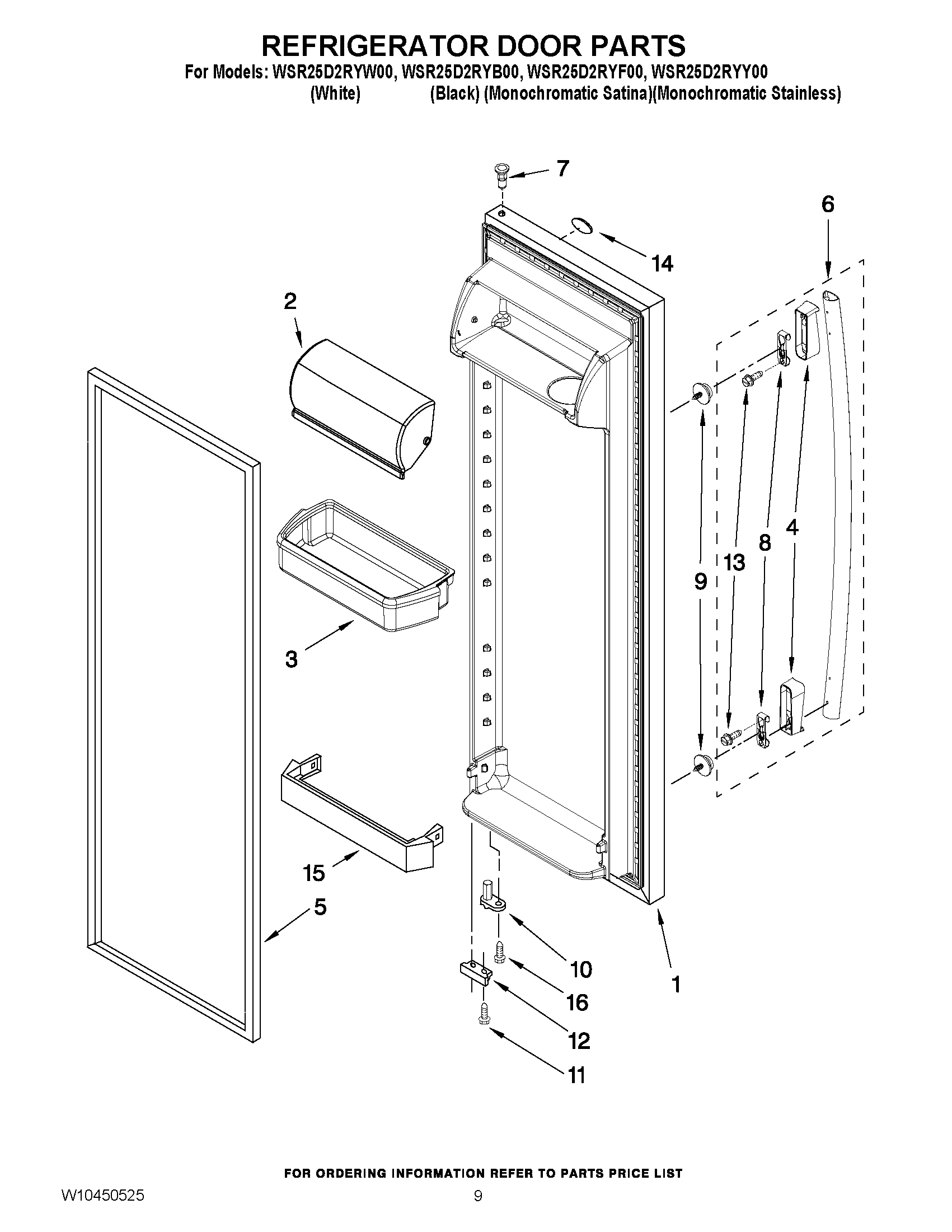

WSR25D2RYY00 06 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	REFRIGERATOR DOOR (INCLUDES ITEM 5) (MONO STAINLESS)
1	Refrigerator Door (Includes Item 6) (White)
1	Refrigerator Door (Includes Item 6) (Black)
1	REFRIGERATOR DOOR (INCLUDES ITEM 5) (MONO SATINA)
2	WP2256101 Whirlpool Dairy Door
3	WPW10321304 Whirlpool Refrigerator Door Shelf Bin
4	ENDCAP, HANDLE (GRAY)
4	Handle, Endcap (Black)
4	W10127813 Whirlpool Refrigerator Handle Endcap
5	2159083 Whirlpool Gasket Door
5	WPW10136734 Whirlpool Refrigerator Door Gasket
5	2159075 Whirlpool Door Gasket Seal
6	W10210942A Whirlpool Refrigerator Handle
6	W10210943A Whirlpool Refrigerator Handle
6	WPW10257120 Whirlpool Refrigerator Handle
7	WP2182181 Whirlpool Refrigerator Thimble
8	WP2255411 Whirlpool Refrigerator Clip
9	WPW10288153 Whirlpool Refrigerator Screw
10	WP2182179 Whirlpool Cam Closer
11	WPW10142233 Whirlpool Refrigerator Screw
12	BRACKET, DOOR STOP (BLACK)
12	BRACKET, DOOR STOP (CHROME)
13	W10267047 Whirlpool Screw
14	WP2213265 Whirlpool Refrigerator Nameplate
15	WP2156022 Whirlpool Refrigerator Door Trim
16	WP3400012 Whirlpool Refrigerator Screw
