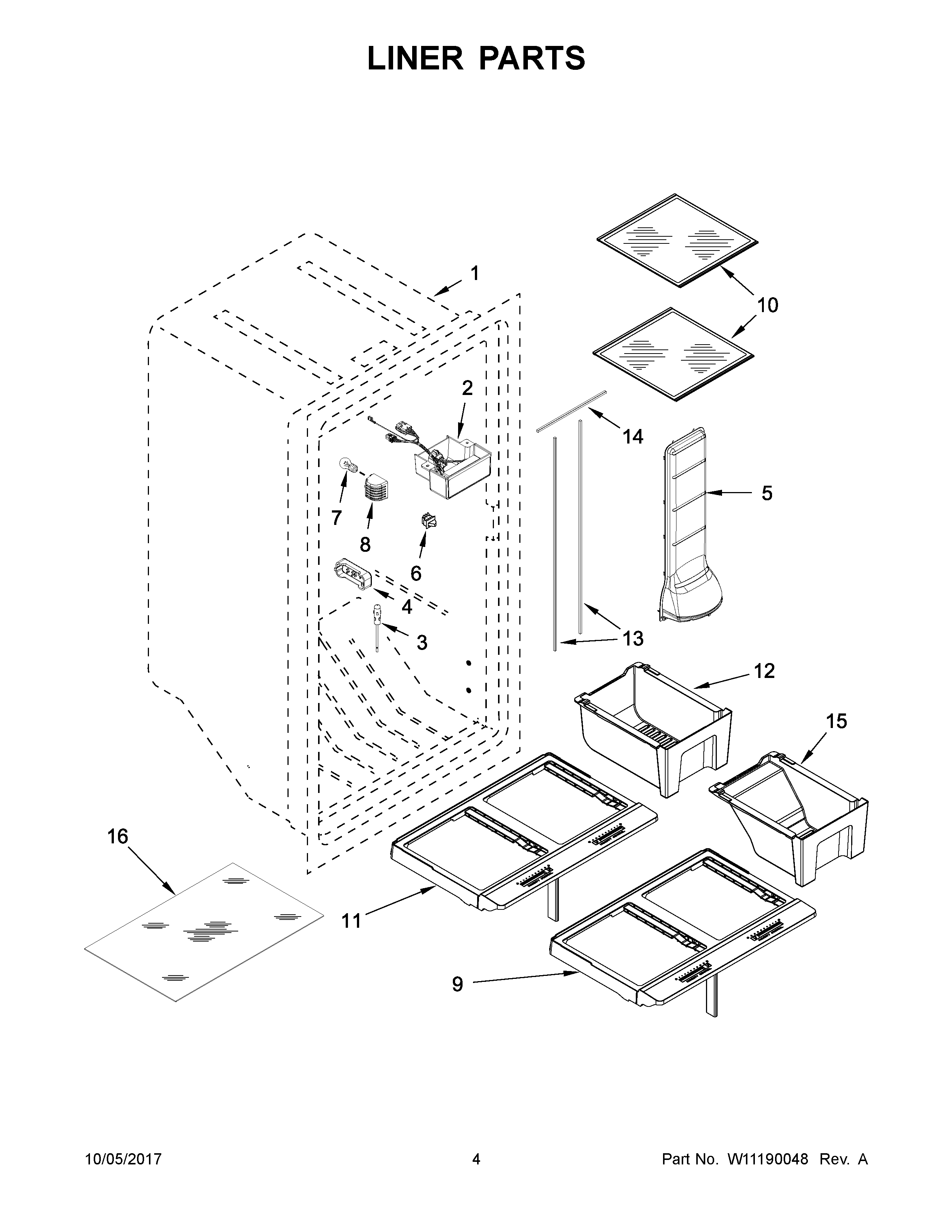

WSR57R18DM02 03 – LINER PARTS

WSR57R18DM02 03 – LINER PARTS

Written by

in

WSR57R18DM02 03 – LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2W11496881 Whirlpool Refrigerator Control Box
3WPW10384183 Whirlpool Thermistor
4W10608692 Whirlpool Refrigerator Cover
5W10574272 Whirlpool Refrigerator Air Tower
6W10755325 Whirlpool Refrigerator Switch
7W11216993 Whirlpool Refrigerator Light Bulb
8W10569269 Whirlpool Refrigerator Lens
9W10581572 Whirlpool Cantilever Shelf
10W11430610 Whirlpool Refrigerator Glass Shelf
11W10591310 Whirlpool Refrigerator Crisper Cover Shelf
12W10654386 Whirlpool Refrigerator Crisper Pan
13WPW10574368 Whirlpool Refrigerator Gasket
15W10654387 Whirlpool Refrigerator Crisper Pan
16W11428833 Whirlpool Refrigerator Glass Shelf
