WSSH300G0WW CONTROL PANEL

WSSH300G0WW CONTROL PANEL

Written by

in

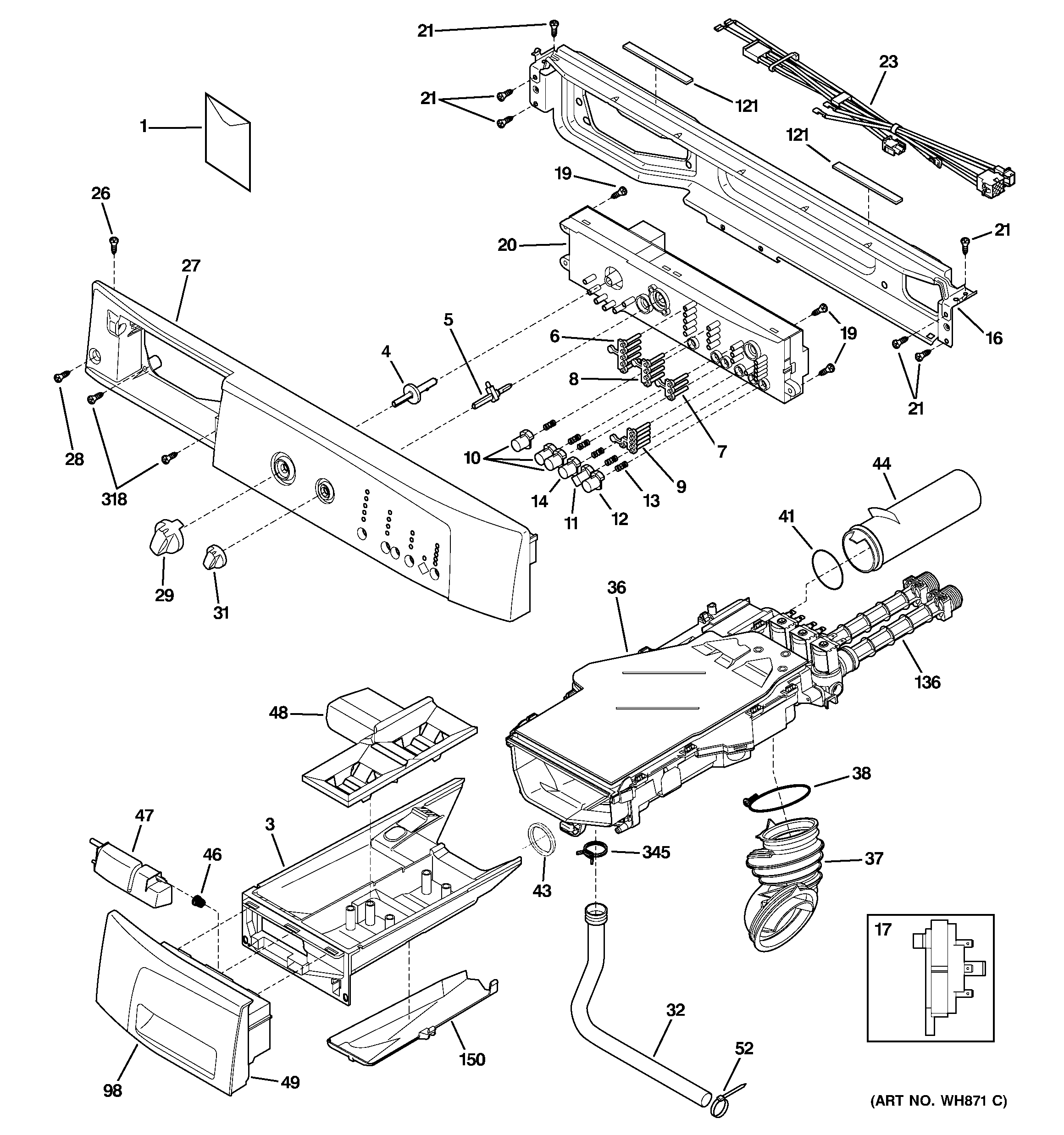

WSSH300G0WW CONTROL PANEL

Products

PositionProduct
1KIT-SHIPPING BOLTS
1GEN 49-90312
1GEN 31-16528
1GEN 49-90314
3GEN WH41X10145
4GEN WE01X10223
5GEN WE01X10224
6LIGHT PIPE, ARRAY, 1 ROW
7GEN WH01X10333
8LIGHT PIPE, ARRAY, 2 ROW
9LIGHT PIPE, ARRAY, 4 STA
10GEN WE01X10229
11GEN WE01X10230
12GEN WE01X10231
13GEN WE01X10232
14WH01X10330 GE Push Button Soil
16GEN WH46X10154
17GEN WH12X10353
19SCREW, PHILLIPS, 6-19 X
20WH22X30717 GE Control Board
21SCREW PANEL TO EVAP
23GEN WH19X10052
26GEN WH02X10007
27GEN WH46X10158
28SCREW 10-16 X .75
29GEN WH01X10334
31GEN WE01X10221
32GEN WH41X10142
36GEN WH41X10150
37GEN WH41X10148
38GEN WH02X10244
41GEN WH08X10031
43GEN WH08X10030
44GEN WH41X10147
46GEN WH02X10241
47GEN WH01X10331
48GEN WH41X10146
49GEN WH41X10149
52WR02X11607 GE Refrigerator Wire Tie
98GEN WH41X10152
121GEN WH02X10245
136GEN WH13X10030
150GEN WH04X10005
318GEN WH02X10023
345GEN WH02X10153
