WSXH208F0WW CONTROL PANEL

WSXH208F0WW CONTROL PANEL

Written by

in

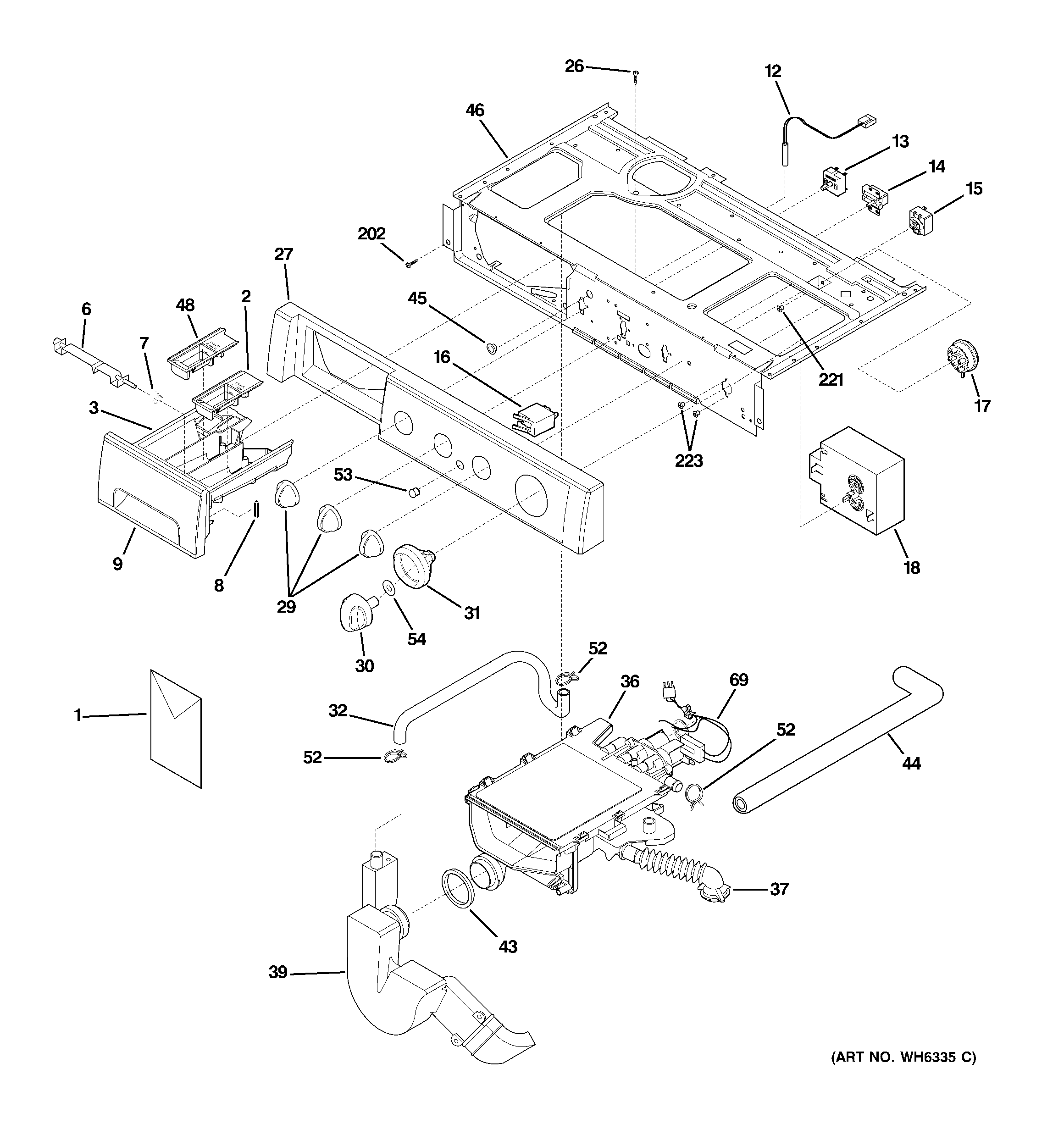

WSXH208F0WW CONTROL PANEL

Products

Position	Product
1	GEN 49-90116-3
1	GEN WH16X10006
2	GEN WH41X10001
3	GEN WH41X10003
6	GEN WH01X10039
7	GEN WH01X10005
8	GEN WH01X10007
9	GEN WH41X10055
12	WH12X10165 GE Reed Switch
13	GEN WH12X10057
14	GEN WH12X10319
15	GEN WH12X10318
16	GEN WH12X10151
17	GEN WH12X10312
18	WH12X10152 GE Timer Assembly
26	GEN WH02X10091
27	GEN WH42X10271
29	GEN WH01X10111
30	KNOB – TIMER
31	GEN WH11X10018
32	GEN WH41X10056
36	GEN WH41X10057
37	GEN WH41X10013
39	GEN WH41X10060
43	GEN WH41X10051
44	GEN WH41X10134
45	GEN WH01X10037
46	GEN WH46X10137
48	GEN WH41X10002
52	GEN WH02X10153
53	GEN WH01X10114
54	GEN WE01X1126
69	GEN WH12X10153
202	SCREW PANEL TO EVAP
221	SCREW PAN HD.8-18ABX.375
223	GEN WE02X10016
