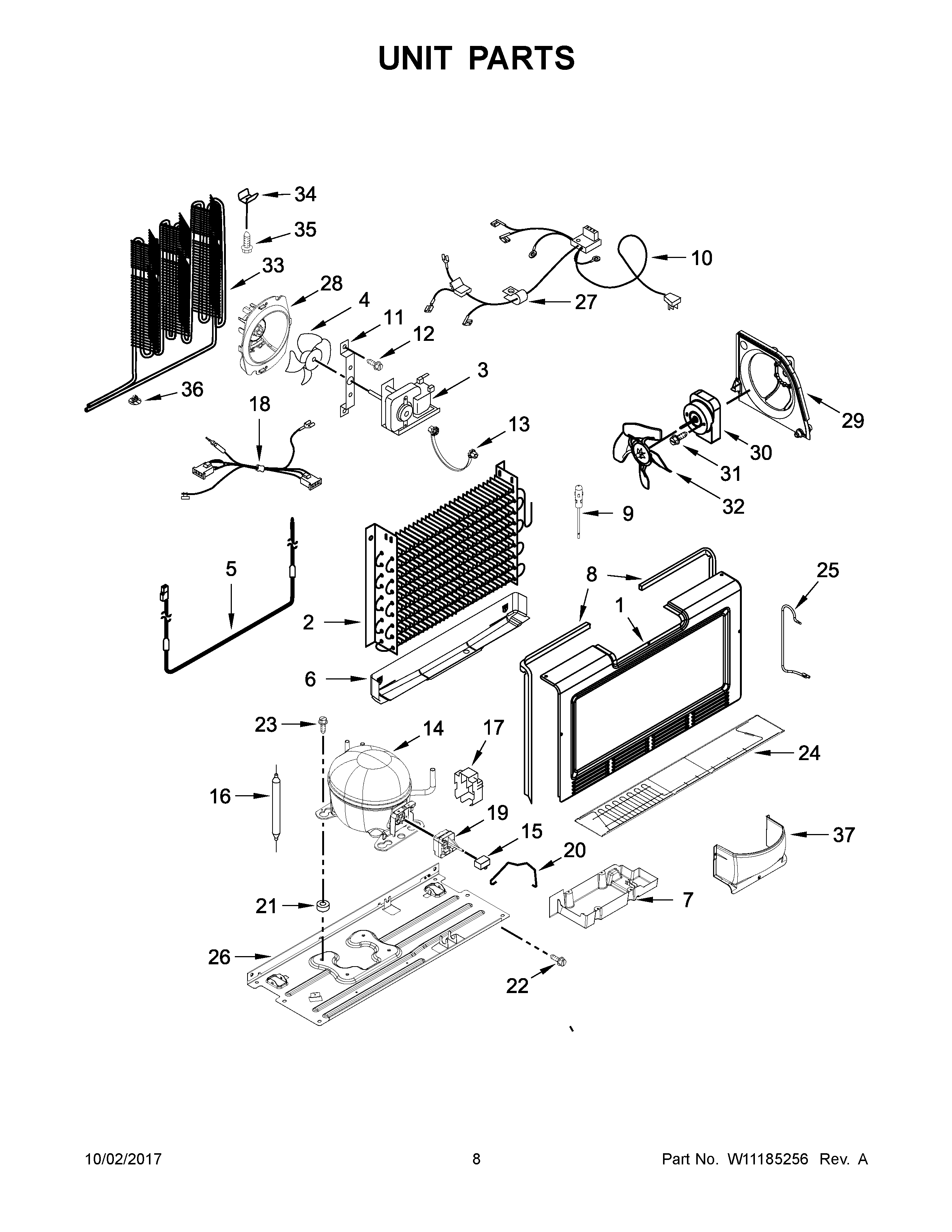

WSZ57L18DM02 05 – UNIT PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
1	W11551256 Whirlpool Refrigerator Evaporator Cover
2	W11507067 Whirlpool Refrigerator Evaporator
3	WPW10359880 Whirlpool Refrigerator Evaporator Motor
4	WP2169142 Whirlpool Fan Blade
5	WPW10316428 Whirlpool Refrigerator Heater
6	WPW10314195 Whirlpool Refrigerator Shield
7	W10574291 Whirlpool Refrigerator Drip Pan
8	WPW10574368 Whirlpool Refrigerator Gasket
9	THERMISTOR-REFRIGERATOR
10	W11115769 Whirlpool Wire Harness
11	CLIP, EVAPORATOR MOTOR
12	SCREW
13	W11690160 Whirlpool Grommet
14	W11174634 Whirlpool Refrigerator Compressor
15	WPW10350564 Whirlpool Refrigerator Freezer Capacitor
16	WPW10143759 Whirlpool Dryer Filter
17	W10574450 Whirlpool Refrigerator Term Cover
18	W11501934 Whirlpool Refrigerator Harness
19	W10896198 Whirlpool Refrigerator Start Device
20	W10574470 Whirlpool Refrigerator Retainer
21	W11661108 Whirlpool Grommet
22	BOLT
23	SCREW
24	CONDENSER ASSEMBLY
25	W10861955 Whirlpool Refrigerator Tube
26	W10574278 Whirlpool Refrigerator Compressor Pan
27	549193 Whirlpool Refrigerator Power Clamp
28	W10574469 Whirlpool Refrigerator Scroll Fan
29	WP2315541 Whirlpool Refrigerator Air Baffle
30	W11578915 Whirlpool Condenser Motor
31	W11501418 Whirlpool Refrigerator Screw
32	WPW10139483 Whirlpool Refrigerator Condenser Fan Blade, 40%
33	W11507065 Whirlpool Refrigerator Condenser
34	W10683556 Whirlpool Refrigerator Clip
35	W11544659 Whirlpool Refrigerator Screw
36	W10815861 Whirlpool Refrigerator Clip
37	W10574274 Whirlpool Refrigerator Evaporator Cover
