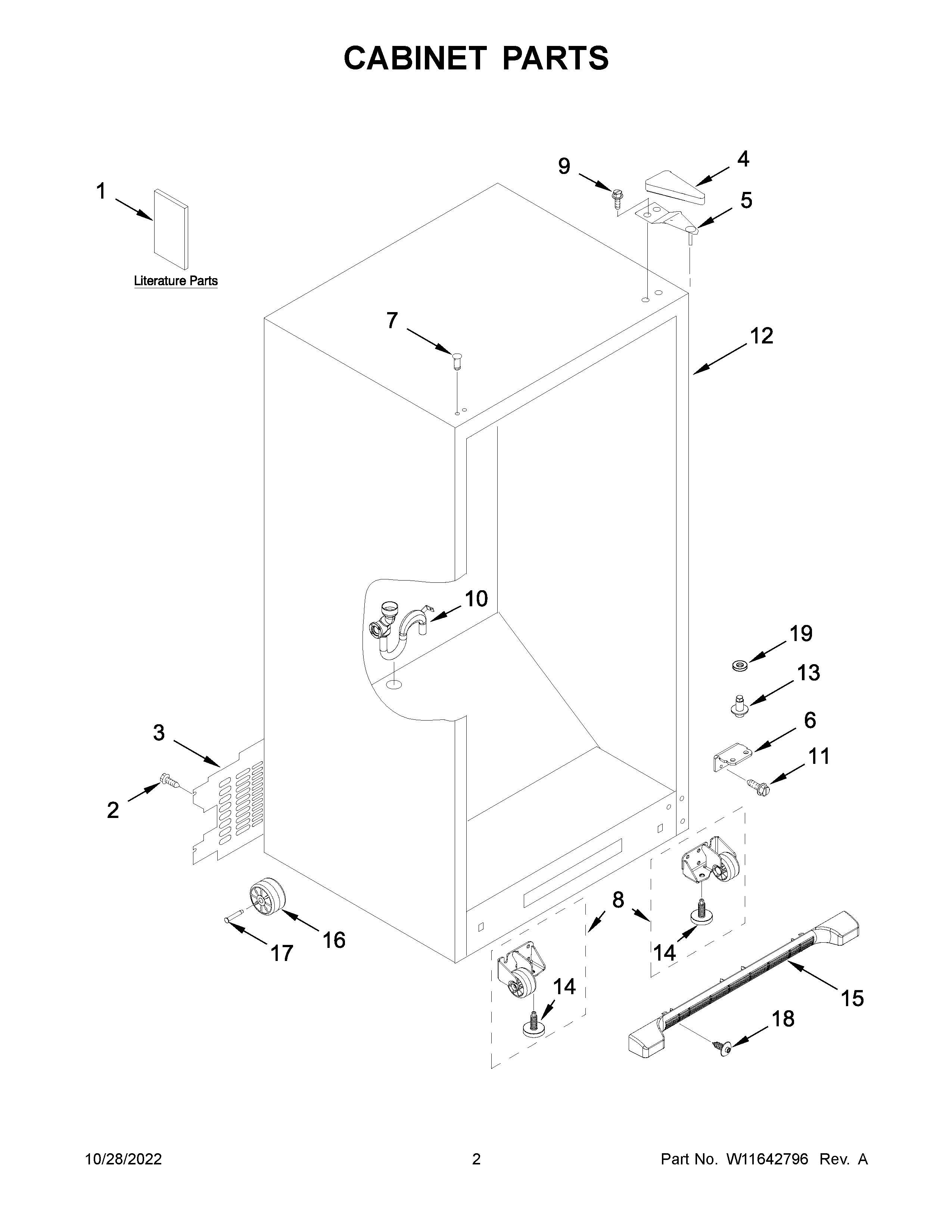

WSZ57L18DM07 02 – CABINET PARTS

WSZ57L18DM07 02 – CABINET PARTS

Written by

in

WSZ57L18DM07 02 – CABINET PARTS

Products

PositionProduct
1AENERGY GUIDE
1OWNER'S MANUAL
1BTECH SHEET
2SCREW
3COVER, UNIT
4W10853622 Whirlpool Refrigerator Cover
5WP2261963 Whirlpool Refrigerator Door Hinge
6W10574262 Whirlpool Refrigerator Door Hinge
7WPW10520307 Whirlpool Refrigerator Replacement Plug Button
8WPW10515763 Whirlpool Refrigerator Cabinet Roller
8AWPW10515762 Whirlpool Refrigerator Cabinet Roller
9WP489497 Whirlpool Screw
10W11673435 Whirlpool Refrigerator Drain Tube
1167006564 Whirlpool Refrigerator Screw
12CABINET (NOT A SERVICEABLE PART)
13W11676609 Whirlpool Hinge Pin
14WPW10141622 Whirlpool Leveler
15WPW10534165 Whirlpool Refrigerator Front Grille
16WPW10475495 Whirlpool Roller Assembly
17W11594405 Whirlpool Axle
18W11582178 Whirlpool Screw
19WP487576 Whirlpool Washer
