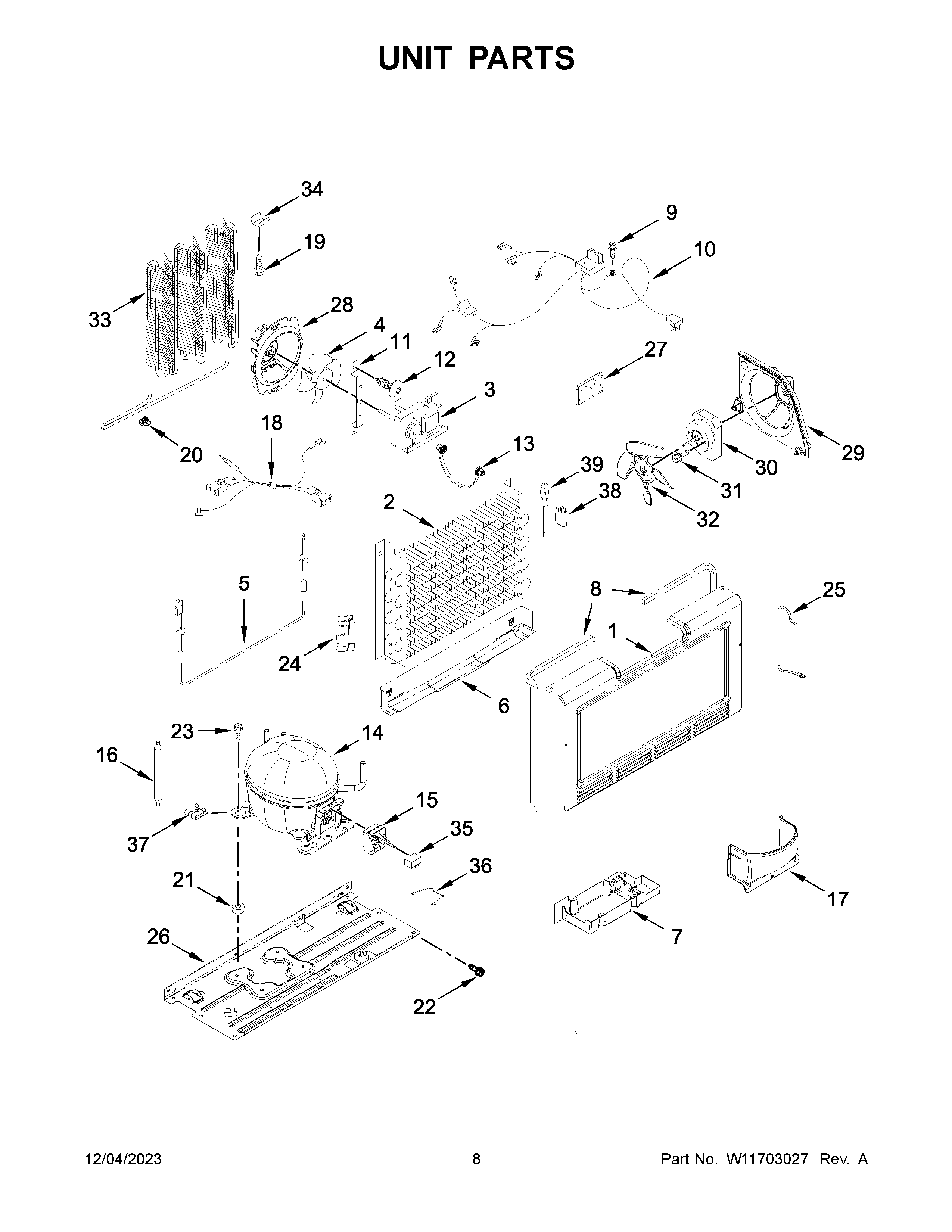

WSZ57L18DM08 05 – UNIT PARTS

Products

Position	Product
NI	WPL ARI960614DAA3CFFE353E9EE44144D9A190
1	W11551256 Whirlpool Refrigerator Evaporator Cover
2A	W11504450 Whirlpool Refrigerator Coupler
2	W11572047 Whirlpool Refrigerator Evaporator
3	W11499658 Whirlpool Refrigerator Evaporator Motor
4	WP2169142 Whirlpool Fan Blade
5	W11562215 Whirlpool Refrigerator Heater
6	W11562216 Whirlpool Shield
7	W10574291 Whirlpool Refrigerator Drip Pan
8	WPW10574368 Whirlpool Refrigerator Gasket
9	SCREW
10	W11648069 Whirlpool Wire Harness
11	CLIP, EVAPORATOR MOTOR
12	SCREW
13	W11690160 Whirlpool Grommet
14	W11547313 Whirlpool Refrigerator Compressor
14D	W11506635 Whirlpool Refrigerator Valve Coupler
14A	W11504420 Whirlpool Microwave Coupler
14B	W11504431 Whirlpool Microwave Coupler
14C	W11506622 Whirlpool Refrigerator Coupler
15	W11524472 Whirlpool Refrigerator Start Device
16	W11504448 Whirlpool Refrigerator Coupler
16	W11109499 Whirlpool Refrigerator Tube
17	W10574274 Whirlpool Refrigerator Evaporator Cover
18	W11741458 Whirlpool Harness
19	W11544659 Whirlpool Refrigerator Screw
20	W10815861 Whirlpool Refrigerator Clip
21	WPW10169124 Whirlpool Refrigerator Grommet
22	BOLT
23	SCREW
24	WPL W11452250
25	TUBE, SUCTION
26	W10574278 Whirlpool Refrigerator Compressor Pan
27	W11553819 Whirlpool Refrigerator Insulation
28	W10574469 Whirlpool Refrigerator Scroll Fan
29	W11605794 Whirlpool Air Baffle
30	W11127829 Whirlpool Refrigerator Condenser Motor
31	W11501418 Whirlpool Refrigerator Screw
32	WPW10139483 Whirlpool Refrigerator Condenser Fan Blade, 40%
33B	W11506623 Whirlpool Refrigerator Coupler
33A	W11578570 Whirlpool Refrigerator Coupler
33	W11507065 Whirlpool Refrigerator Condenser
34	W10683556 Whirlpool Refrigerator Clip
35	W11631831 Whirlpool Capacitor
36	WPL W11379613
37	W10697017 Whirlpool Clip
38	W11546684 Whirlpool Refrigerator Clip
39	WPW10384183 Whirlpool Thermistor
