WT5270CW 2

WT5270CW 2

Written by

in

WT5270CW 2

Products

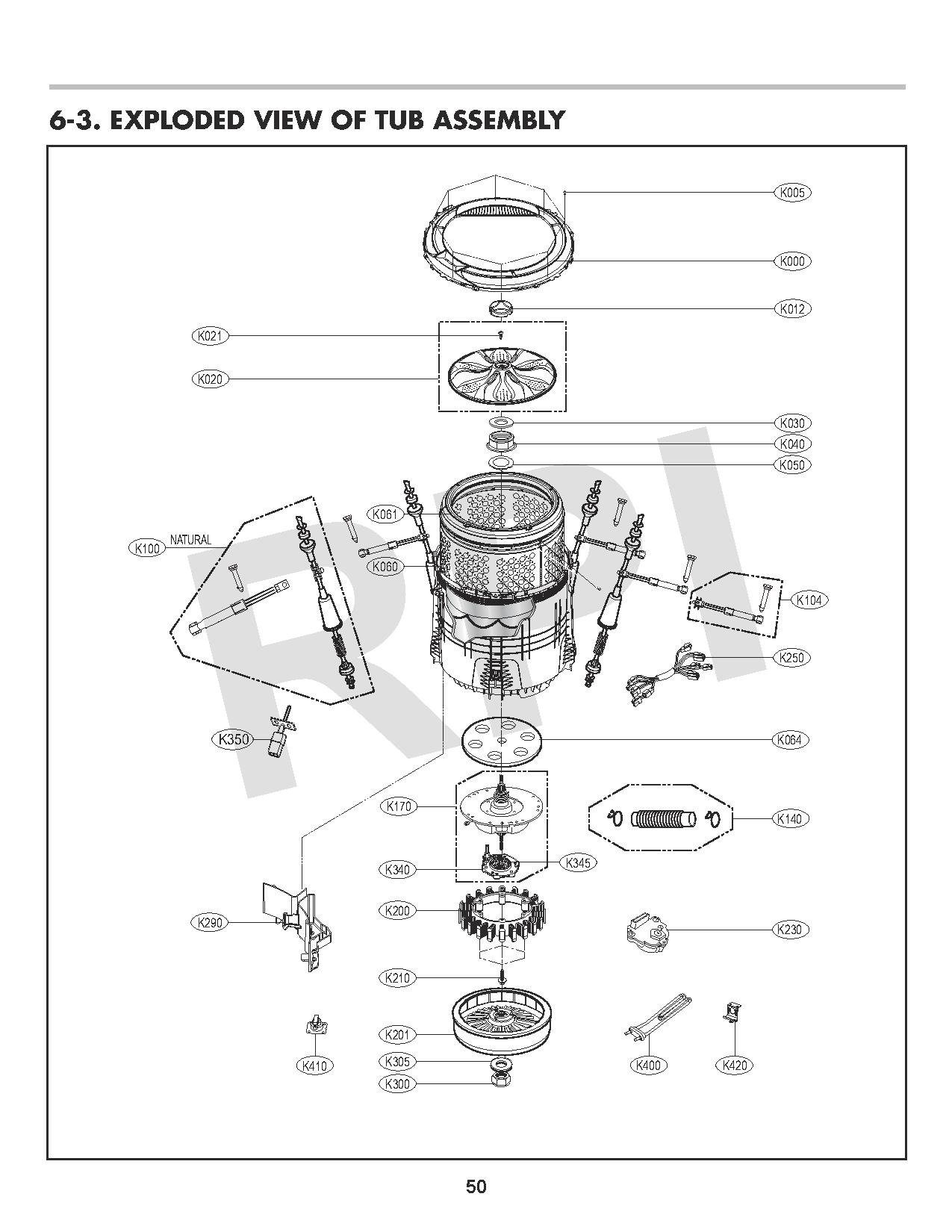

PositionProduct
K000ACQ86391001 LG Tub Cover Assembly
K340COUPLING ASSY
K345COUPLING ASSY
K005FAB32139901 LG Washer Tapping Screw
K060Tub Assembly,Inner
K061Balance Assembly
K064MEL61841403 LG Inner Tub Hub
K104ACV73350201 LG Damper Assembly Friction
K250Package Assembly,C/SKD
K0125006EA3009B LG Washer Chrome Pulsator Cap
K021FAB30598601 LG Washer Custom Screw
K3054W50100D LG Washer Customized
K3001NZZEA4001A LG Common Nut
K2904974EA2004A LG Water Guide
K020AGZ72909711 LG Washer Pulsator Assembly
K2104011FA4353B LG Washer Bolt
K030FAF30369201 LG Washer Common
K0404020FA4208J LG Washer Hex Nut Common
K0504040FA4045C LG Washer Drawing
K200STATOR ASSY
K140AEM73213001 LG Washer Tub To Pump Drain Hose Assembly
K170HOUSING ASSY-CLUTCH COUPLING
K201AHL72914404 LG Rotor Assembly
K2304681EA1009C LG AC Motor Assembly
K100AJK72989710 LG Suspension Assembly
