WT7500CW 0

WT7500CW 0

Written by

in

WT7500CW 0

Products

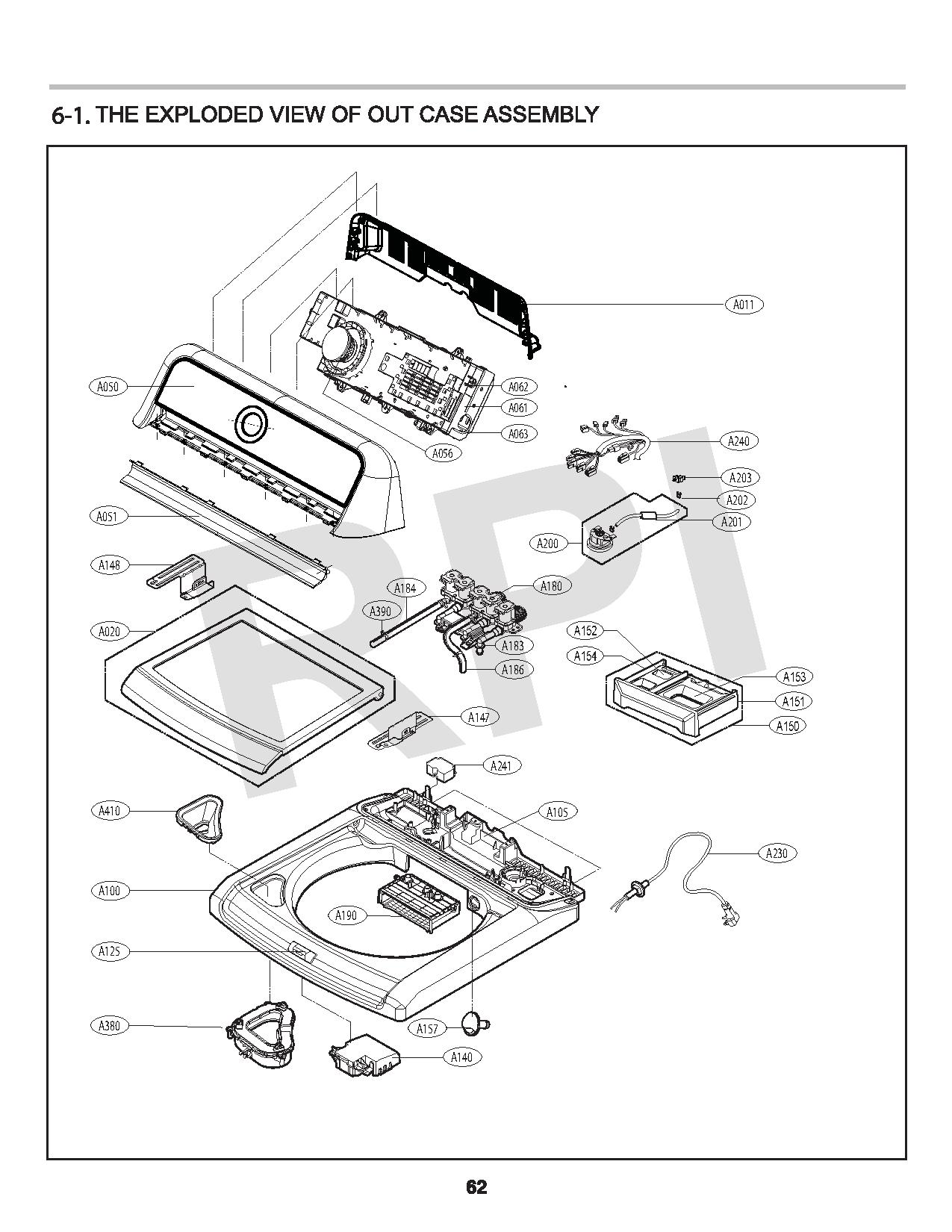

PositionProduct
A056AEZ73913401 LG Knob Assembly
A020AFG72909525 LG Lid Assembly
A1865214EA3004B LG Inlet Hose
A050AGL75452907 LG Front Panel Assembly
A190AEN72910503 LG Detergent Housing Assembly
A051MCR66426602 LG Decor Panel
A2023W40106R LG Clamp
A061EBR81634304 LG Main PCB Assembly
A230EAD60778447 LG Power Cord Assembly
A062EBR81634406 LG Display PCB Assembly
A100MCK62185510 LG Top Cover
A241EAM60930603 LG Filter Assembly
A125MCK62185701 LG Washer Guide Cover
A380ACZ72910402 LG Dispenser Assembly
A240EAD64129504 LG Multi Appliance Harness
A3903W40106M LG Clamp
A184MEJ61841803 LG Hose Connector
A011MGC64379202 LG Rear Panel
A183ACJ73350404 LG Connector Assembly
A200SWITCH ASSY-SENSOR
A2015210FA3427J LG Washer Tube Switch
A203MEG64119601 LG Holder
A150AAZ73855914 LG Washer Detergent Box Assembly
A063MCK65833301 LG Protective Cover
A151MAY65797210 LG Detergent Box
A105MBN61861101 LG Case
A140SWITCH ASSY
A147ABA72939701 LG Bracket Assembly
A148ABA73249001 LG Bracket Assembly
A152MBL65460504 LG Washer Softener Cap
A153MBL65440004 LG Softener Cap
A154MAY65797106 LG Detergent Box
A157AGB72932401 LG Nozzle Assembly
A180AJU73213301 LG Washer Water Inlet Fill Valve Assembly
A410MBL62061401 LG Washer Dispenser Cup
