WT7600HWA 2

WT7600HWA 2

Written by

in

WT7600HWA 2

Products

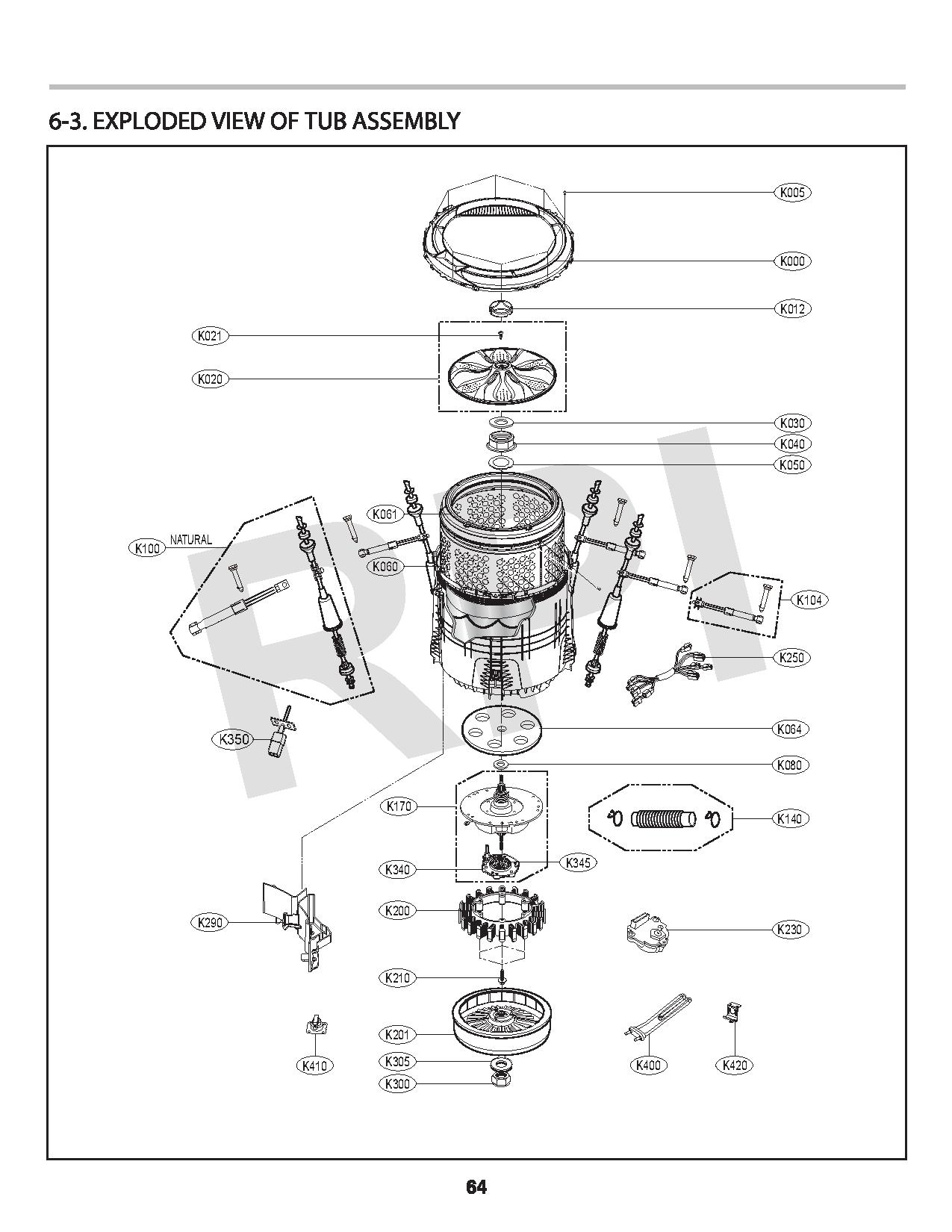

PositionProduct
K020AGZ72909711 LG Washer Pulsator Assembly
K0051TTL0403384 LG Tapping Screw
K0125006EA3009B LG Washer Chrome Pulsator Cap
K021FAB30598601 LG Washer Custom Screw
K060AJQ74373804 LG Tub Inner Assembly
K061AAJ73449902 LG Balance Assembly
K064MEL62141603 LG Inner Tub Hub
K0804036FA4364B LG Gasket
K100AJK72989710 LG Suspension Assembly
K210FAA30850701 LG Bolt Common
K250EAD64149702 LG Multi-Harness
K2904974EA2004B LG Water Guide
K4005301FR1158Z LG Heater Assembly
K4106931EA2001E LG Thermostat Assembly
K000ACQ88516303 LG Tub Cover Assembly
K3506322FR2046G LG Washer Thermistor
K030FAF30369201 LG Washer Common
K0404020FA4208J LG Washer Hex Nut Common
K0504040FA4045C LG Washer Drawing
K200STATOR ASSY
K104AGM74269801 LG Parts Assembly
K140AEM73213001 LG Washer Tub To Pump Drain Hose Assembly
K170HOUSING ASSY-CLUTCH COUPLING
K201AHL72914404 LG Rotor Assembly
K2304681EA1009C LG AC Motor Assembly
K3001NZZEA4001A LG Common Nut
K3054W50100D LG Washer Customized
K340COUPLING ASSY
K345COUPLING ASSY
K4204810EA3003A LG Heater Bracket
