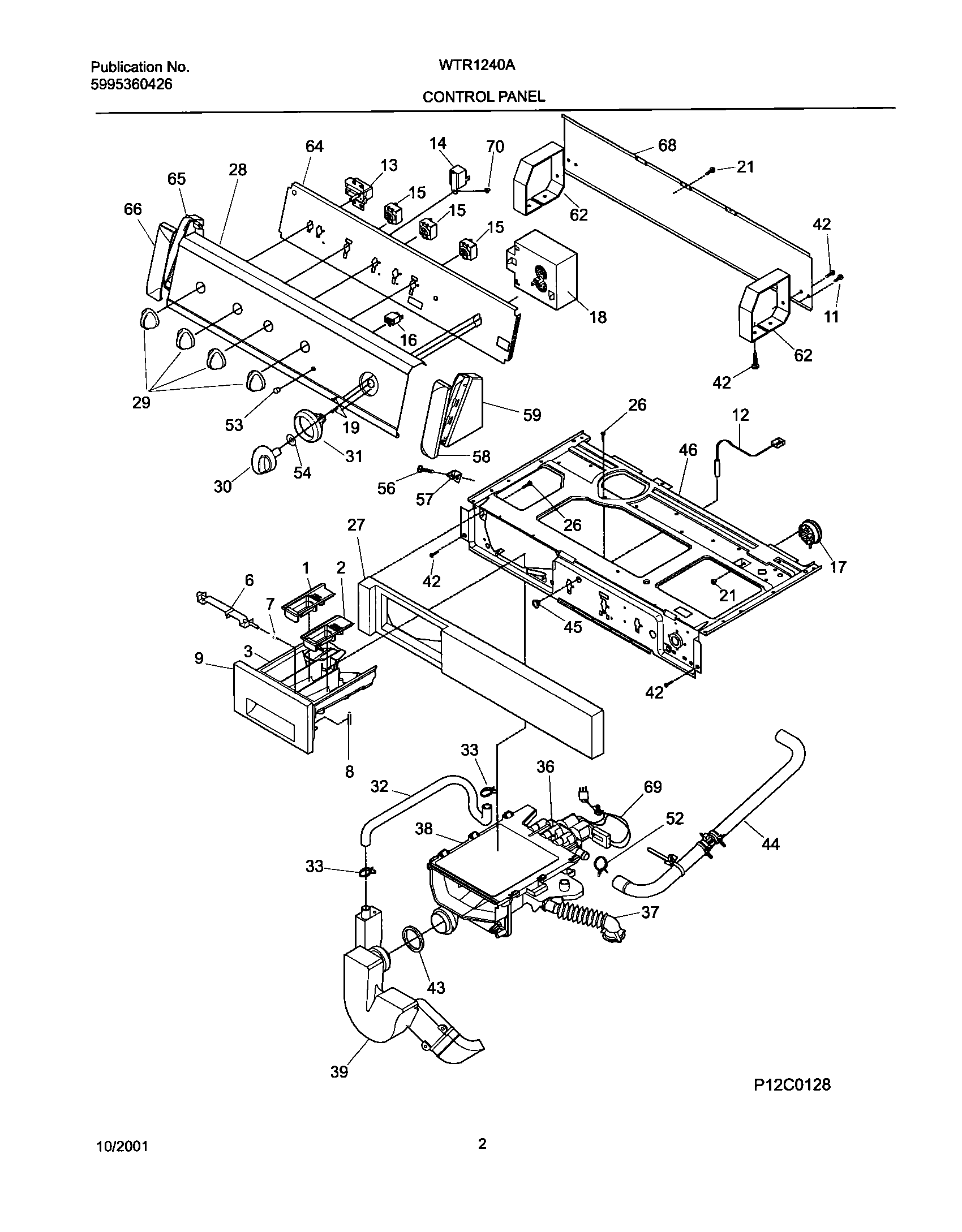

WTR1240AQ0 03 – CONTROL PANEL

Products

Position	Product
NI	WCI 131931201
NI	Clamp,siphon/bellows
NI	WCI 134092400
NI	WCI 134092200
1	WCI 131272100
2	WCI 131272000
3	WCI 131271900
6	WCI 131714900
7	WCI 131427500
8	WCI 131373800
9	WCI 131729500
11	131205100 Frigidaire Screw
12	WCI 131505901
13	WCI 131891800
14	WCI 131724500
15	Switch,2 position
16	Lamp,status light
17	WCI 131273700
18	WCI 134014700
19	131243800 Frigidaire Screw
21	131243700 Frigidaire Screw
26	WCI 131823400
27	PANEL-DISPENSER DRAWER
28	WCI 134105600
29	131858004 Frigidaire Control Knob, White
30	WCI 131140604
31	WCI 131140704
32	WCI 131786100
33	WCI 131306215
36	131974700 Frigidaire Dispensing Valve Assembly
37	131271600 Frigidaire Washer Dryer Tub Hose
39	WCI 131863300
42	131168200 Frigidaire Dryer Screw
43	WCI 131749200
44	WCI 131899800
45	Bushing,idler
46	WCI 131810012
52	WCI 131306242
53	Lens,status light ,clear
54	Spacer,washer ,timer shaft
56	WCI 131266310
57	CLIP-CONSOLE MTG
58	WCI 131122603
59	WCI 131122703
62	WCI 131721500
64	WCI 131728900
65	WCI 131122713
66	WCI 131122613
68	WCI 134088700
69	WCI 131908000
70	5303015671 Frigidaire Bracket Termination Screw
