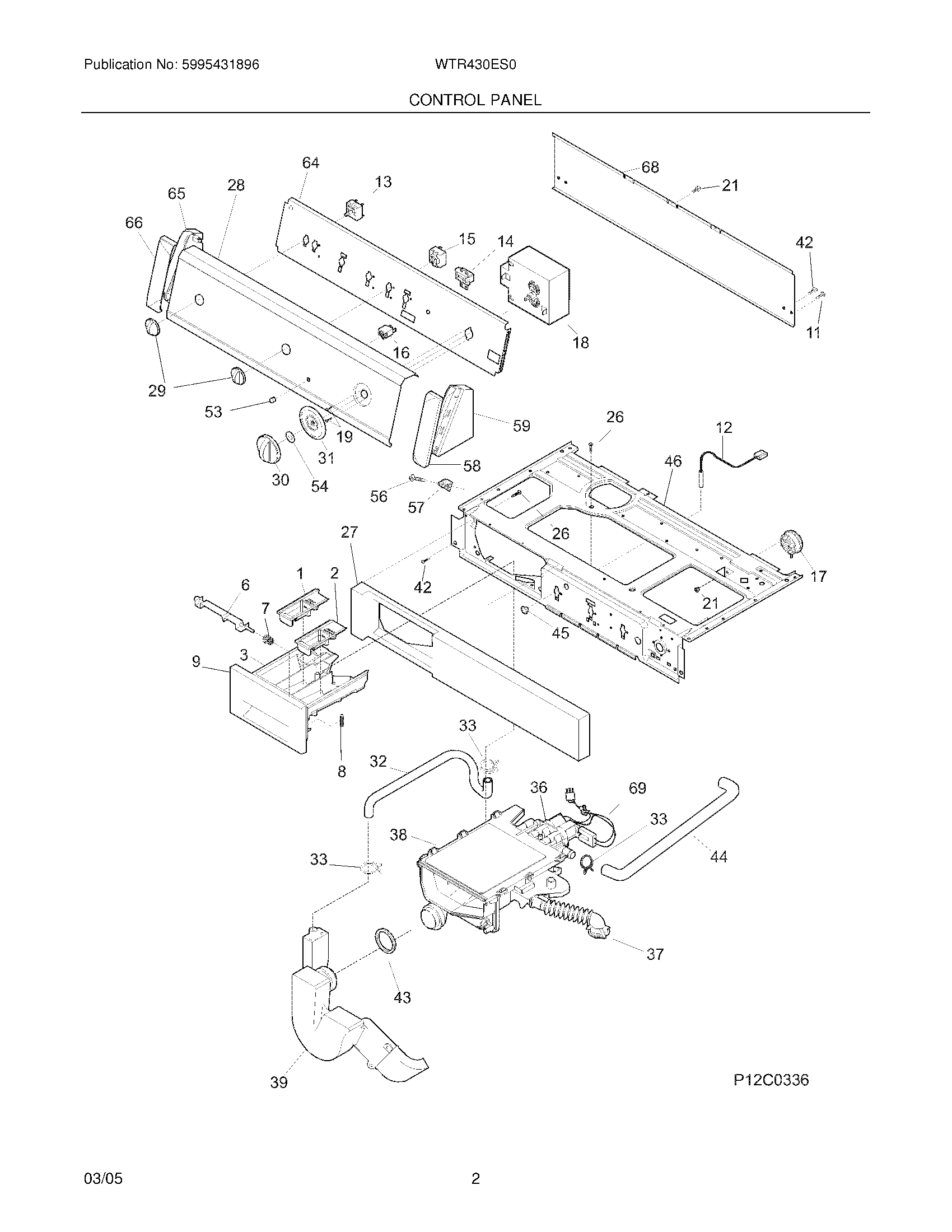

WTR430ES0 03 – CONTROL PANEL

Products

Position	Product
NI	WCI 131872200
NI	Clamp,siphon/bellows
NI	WCI 131931201
NI	WCI 134092500
1	WCI 131272100
2	WCI 131272000
3	WCI 131271910
6	WCI 131714900
7	WCI 131427500
8	WCI 131373800
9	WCI 131729500
11	131205100 Frigidaire Screw
12	WCI 131505902
13	Switch,temp selector ,3 posn rotary
14	WCI 134086900
15	Switch,2 position
16	Lamp,status light
17	WCI 134381100
18	WCI 134378300
19	131243800 Frigidaire Screw
21	131243700 Frigidaire Screw
26	WCI 131823400
27	PANEL-DISPENSER DRAWER
28	WCI 134476600
29	131858004 Frigidaire Control Knob, White
30	WCI 131140601
31	WCI 131140705
32	WCI 131786100
33	134737300 Frigidaire Clamp
36	131974700 Frigidaire Dispensing Valve Assembly
37	131271600 Frigidaire Washer Dryer Tub Hose
38	WCI 131803710
39	WCI 131863300
42	131168200 Frigidaire Dryer Screw
43	WCI 131749200
44	WCI 131786000
45	Bushing,idler
46	WCI 134191412
53	Lens,status light ,clear
54	Spacer,washer ,timer shaft
56	WCI 131266330
57	CLIP-CONSOLE MTG
58	COVER-CAP-RH-WHITE
59	END CAP-R.H.-WHITE
64	WCI 134487900
65	END CAP-L.H.-WHITE
66	COVER-CAP-LH-WHITE
68	WCI 134088700
69	Wiring Harness,dispenser valve
