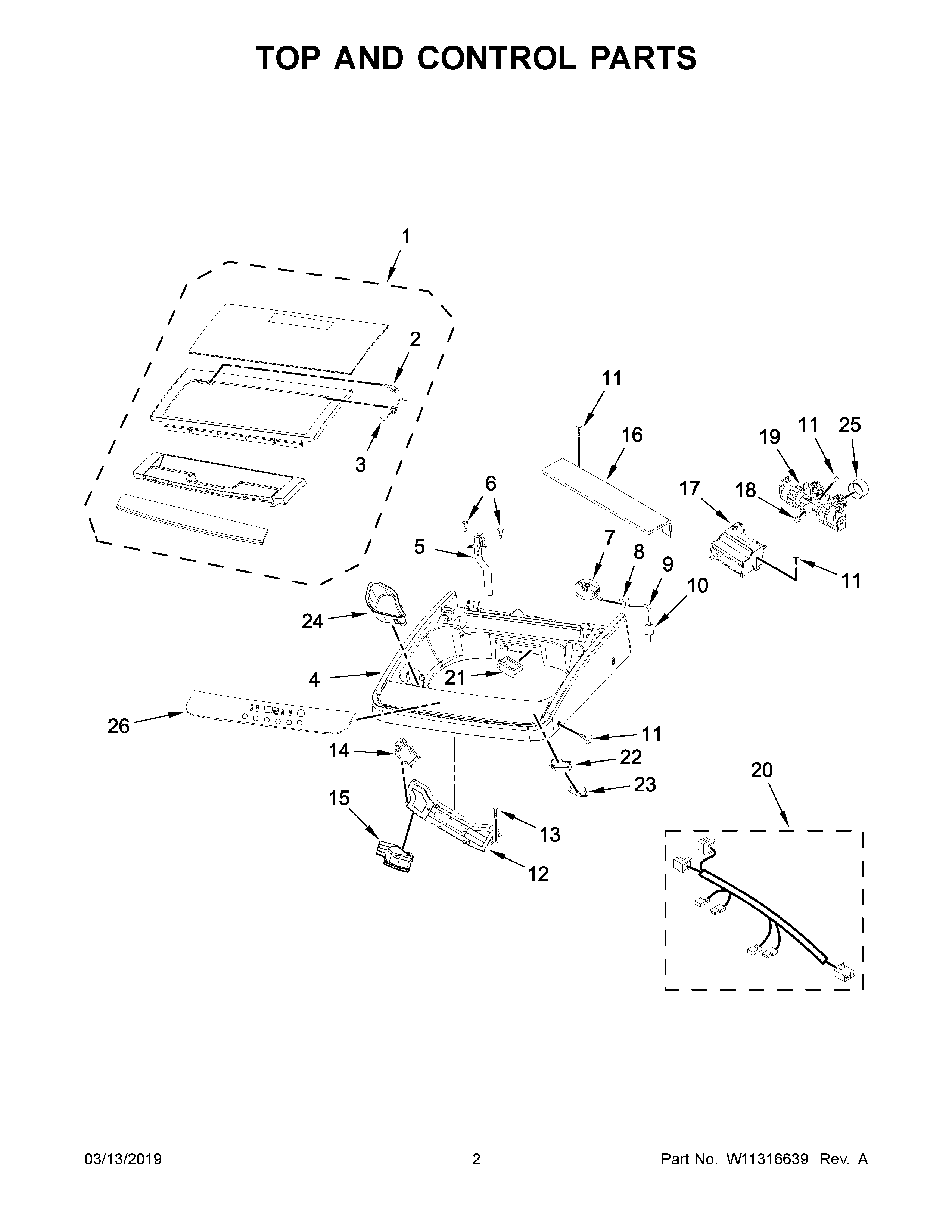

WTW2000HW0 02 – TOP AND CONTROL PARTS

Products

Position	Product
1	W10892043 Whirlpool Lid
2	W10869489 Whirlpool Hinge
3	W10869493 Whirlpool Washer Spring
4	W10869494 Whirlpool Top
5	W10869495 Whirlpool KO Switch
6	W10869499 Whirlpool Screw
7	W11662130 Whirlpool Waffle Iron Switch
8	W10883610 Whirlpool Hose Clamp
9	W10882407 Whirlpool Hose Assembly
10	W10882410 Whirlpool Sleeve
11	W11296992 Whirlpool Screw
12	W11359390 Whirlpool Electronic Control Board + Core
13	W10869504 Whirlpool Screw
14	COVER, CONTROL (UPPER)
15	COVER, CONTROL (LOWER)
16	W10883612 Whirlpool Cover
17	W10869510 Whirlpool Housing
18	W10883613 Whirlpool Connector
19	W10906602 Whirlpool Valve Assembly
20	MAIN HARNESS
21	DRAWER, DETERGENT
22	W11371714 Whirlpool Latch
23	COVER, LID LOCK
24	BEZEL, BLEACH DISPENSER
25	CAP, INLET VALVE
26	W11356297 Whirlpool Overlay
