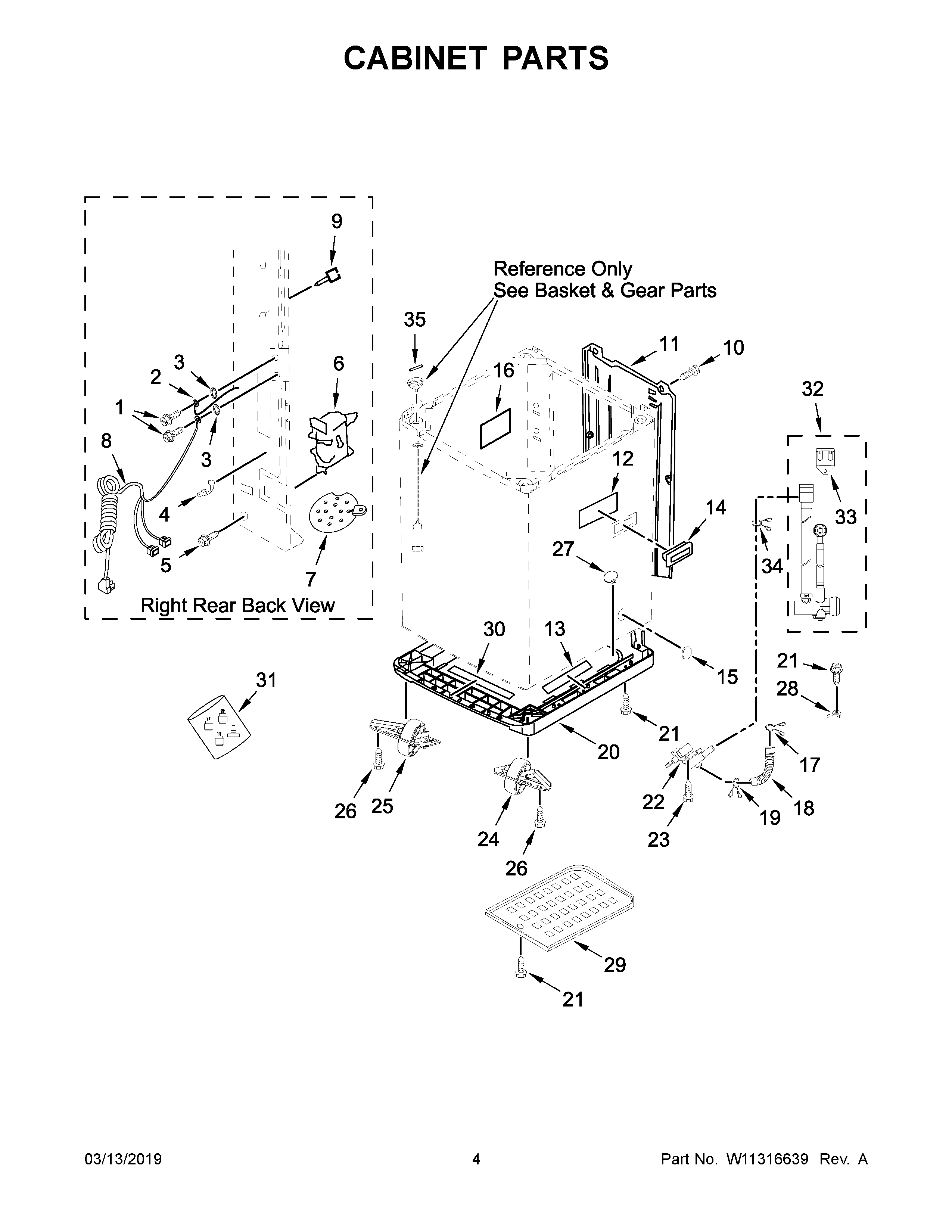

WTW2000HW0 03 – CABINET PARTS

Products

Position	Product
1	SCREW
2	WIRE, GROUND
3	4159493 Whirlpool Lockwasher
4	STRAIN RELIEF
5	W10882000 Whirlpool Screw
6	W11356261 Whirlpool Capacitor
7	SHIELD, CAPACITOR
8	W10882052 Whirlpool Power Cord
9	RETAINER, HARNESS
10	SCREW
11	PANEL, REAR
12	FOIL, ALUMINUM (HANDLE)
13	FOIL, ALUMINUM (LEFT & RIGHT BASE)
14	HANDLE
15	PLUG, CABINET
16	SOUND ABSORBER (CABINET)
17	W10883714 Whirlpool Hose Clamp
18	W10882096 Whirlpool Hose
19	W10883717 Whirlpool Hose Clamp
20	W10882101 Whirlpool Base
21	W10869499 Whirlpool Screw
22	W10906604 Whirlpool Drain Pump
23	W10883733 Whirlpool Screw
24	W10882106 Whirlpool Caster
25	W10882107 Whirlpool Caster
26	W10869507 Whirlpool Screw
27	CUP, OVERFLOW HOPPER
28	CLAMP, WIRE
29	SOUND ABSORBER (BASE)
30	FOIL, ALUMINUM (FRONT BASE)
31	W10882121 Whirlpool Leveling Feet
32	W10849778 Whirlpool Hose Assembly
33	W10883751 Whirlpool Bracket
34	W10883711 Whirlpool Hose Clamp
35	W10882238 Whirlpool Pin
