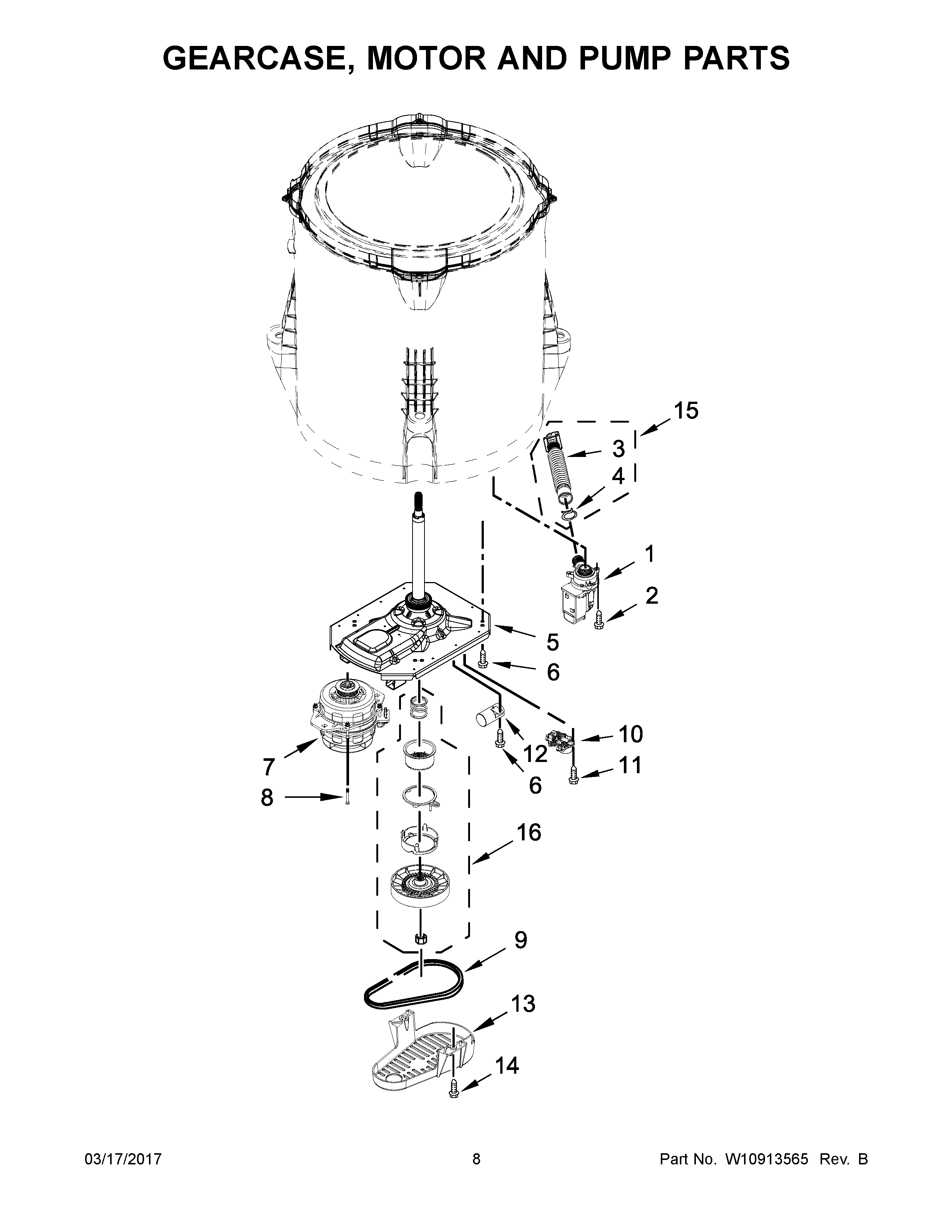

WTW4616FW1 05 – GEARCASE, MOTOR AND PUMP PARTS

WTW4616FW1 05 – GEARCASE, MOTOR AND PUMP PARTS

Written by

in

WTW4616FW1 05 – GEARCASE, MOTOR AND PUMP PARTS

Products

PositionProduct
1PUMP-WATER
2WPW10004910 Whirlpool Screw
4WP285655 Whirlpool Hose Clamp
5GEARCASE (DW1)
6WPW10249633 Whirlpool Screw
7W10890624 Whirlpool Drive Motor
8W11685857 Whirlpool Screw Assembly
9WPW10006384 Whirlpool Washer Drive Belt
10W10913953 Whirlpool Washer Shift Actuator
11W11596033 Whirlpool Microwave Screw
12W11158830 Whirlpool Capacitor
13WPW10427633 Whirlpool Belt Shield
14W11573574 Whirlpool Screw
15W10899966 Whirlpool Hose Assembly
16W10721967 Whirlpool Washer Cam Kit
