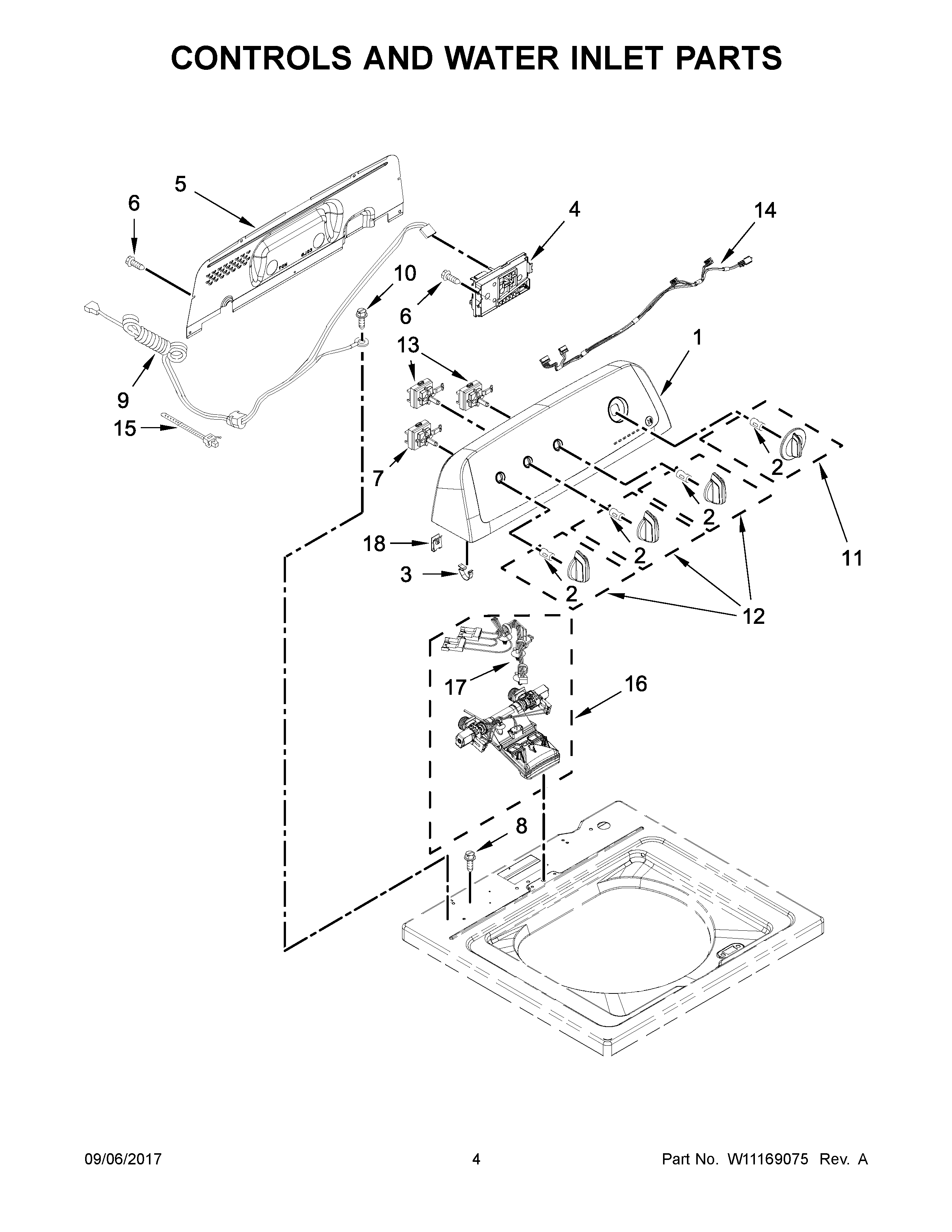

WTW4616FW2 03 – CONTROLS AND WATER INLET PARTS

WTW4616FW2 03 – CONTROLS AND WATER INLET PARTS

Written by

in

WTW4616FW2 03 – CONTROLS AND WATER INLET PARTS

Products

PositionProduct
1W10877388 Whirlpool Control Panel
2WP8536939 Whirlpool Spring Clip
3WP8312709 Whirlpool Endcap Clip
4W11170645-includeCORE Whirlpool W11170645 Dishwasher Electronic Control Board with Core
5W10409320 Whirlpool Rear Panel
6WP489069 Whirlpool Compactor Screw
7W10859568 Whirlpool Cycle Switch
8WPW10213953 Whirlpool Screw
9W10850133 Whirlpool Power Cord
10W10846509 Whirlpool Screw
11WPW10711289 Whirlpool Washer Control Knob Dryer
12WPW10453947 Whirlpool Knob
13W11168256 Whirlpool Cycle Switch
14W10694671 Whirlpool Wire Harness
15W10339680 Whirlpool Wire Tie
16W11210459 Whirlpool Washer Water Inlet Valve
17W10868094 Whirlpool Wire Harness
18W11213336 Whirlpool Nut
