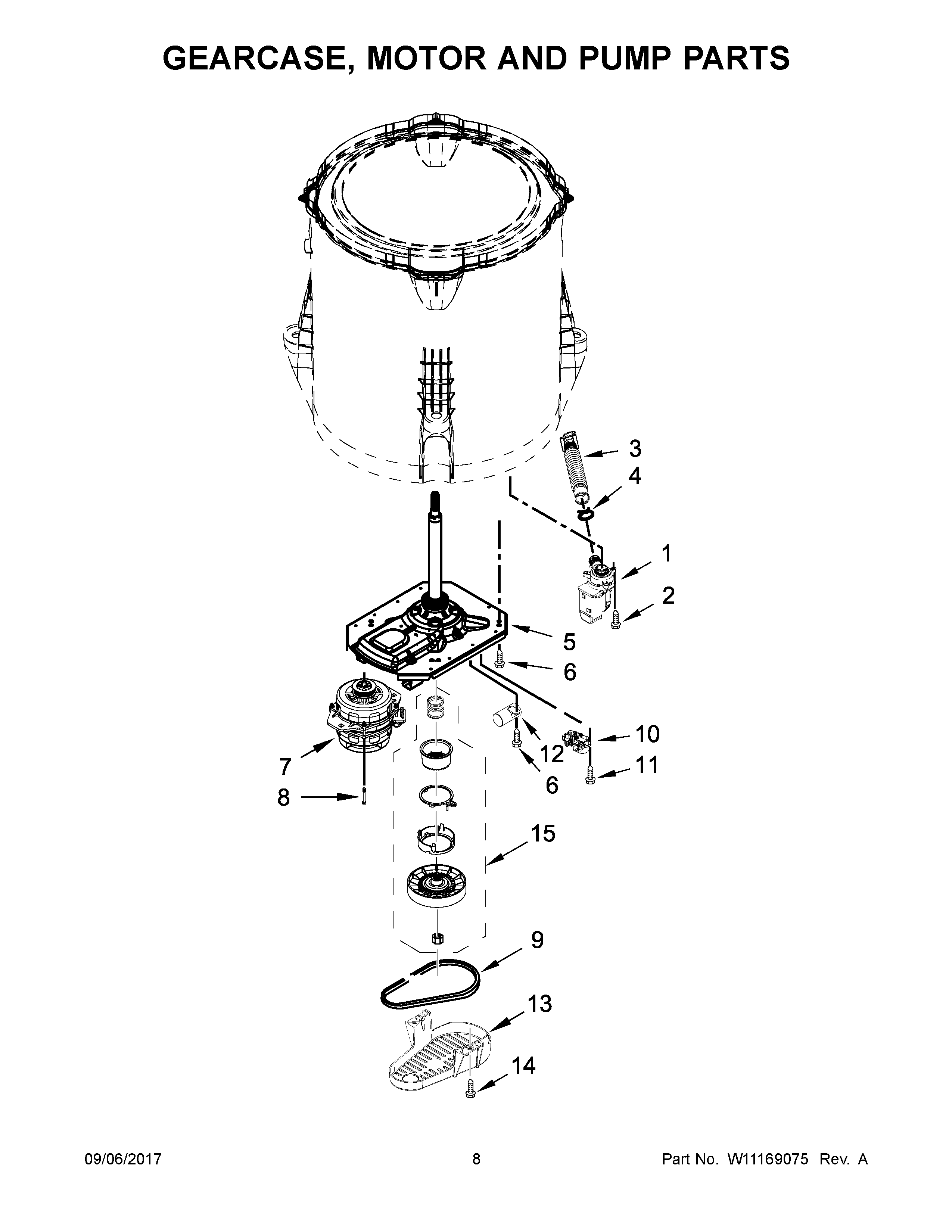

WTW4616FW2 05 – GEARCASE, MOTOR AND PUMP PARTS

Products

Position	Product
1	PUMP-WATER
2	WPW10004910 Whirlpool Screw
3	W10899966 Whirlpool Hose Assembly
4	WP285655 Whirlpool Hose Clamp
5	GEARCASE (DW1)
6	WPW10249633 Whirlpool Screw
7	W11686050 Whirlpool Drive Motor
8	W11685857 Whirlpool Screw Assembly
9	WPW10006384 Whirlpool Washer Drive Belt
10	W10913953 Whirlpool Washer Shift Actuator
11	W11596033 Whirlpool Microwave Screw
12	CAPACITOR-SCREW
13	WPW10427633 Whirlpool Belt Shield
14	W11573574 Whirlpool Screw
15	W10721967 Whirlpool Washer Cam Kit
