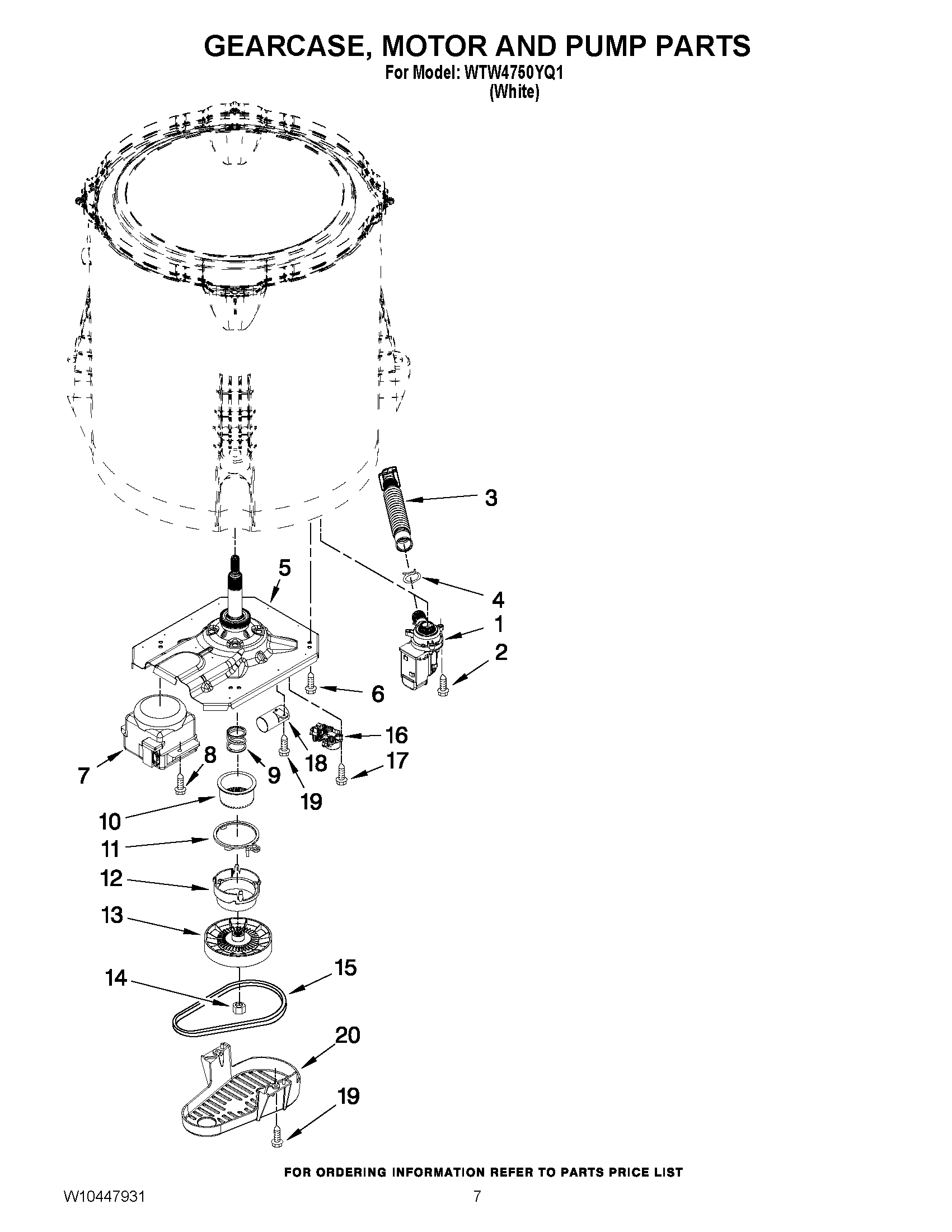

WTW4750YQ1 04 – GEARCASE, MOTOR AND PUMP PARTS

Products

Position	Product
1	WPW10276397 Whirlpool Water Pump
2	WPW10004910 Whirlpool Screw
3	W10899966 Whirlpool Hose Assembly
4	WP285655 Whirlpool Hose Clamp
5	GEARCASE (DW1)
6	WPW10249633 Whirlpool Screw
7	WPW10006415 Whirlpool Drive Motor
8	W11685857 Whirlpool Screw Assembly
9	SPRING, SPLUTCH
10	W10721967 Whirlpool Washer Cam Kit
11	CAM RING, SPLUTCH
12	CAM, SPLUTCH
14	W10759923 Whirlpool Washer Pulley Nut
15	WPW10006384 Whirlpool Washer Drive Belt
16	WPW10006355 Whirlpool Washer Shift Actuator
17	W11596033 Whirlpool Microwave Screw
18	W10804665 Whirlpool Washer Motor Run Capacitor
19	W11573574 Whirlpool Screw
20	WPW10427633 Whirlpool Belt Shield
