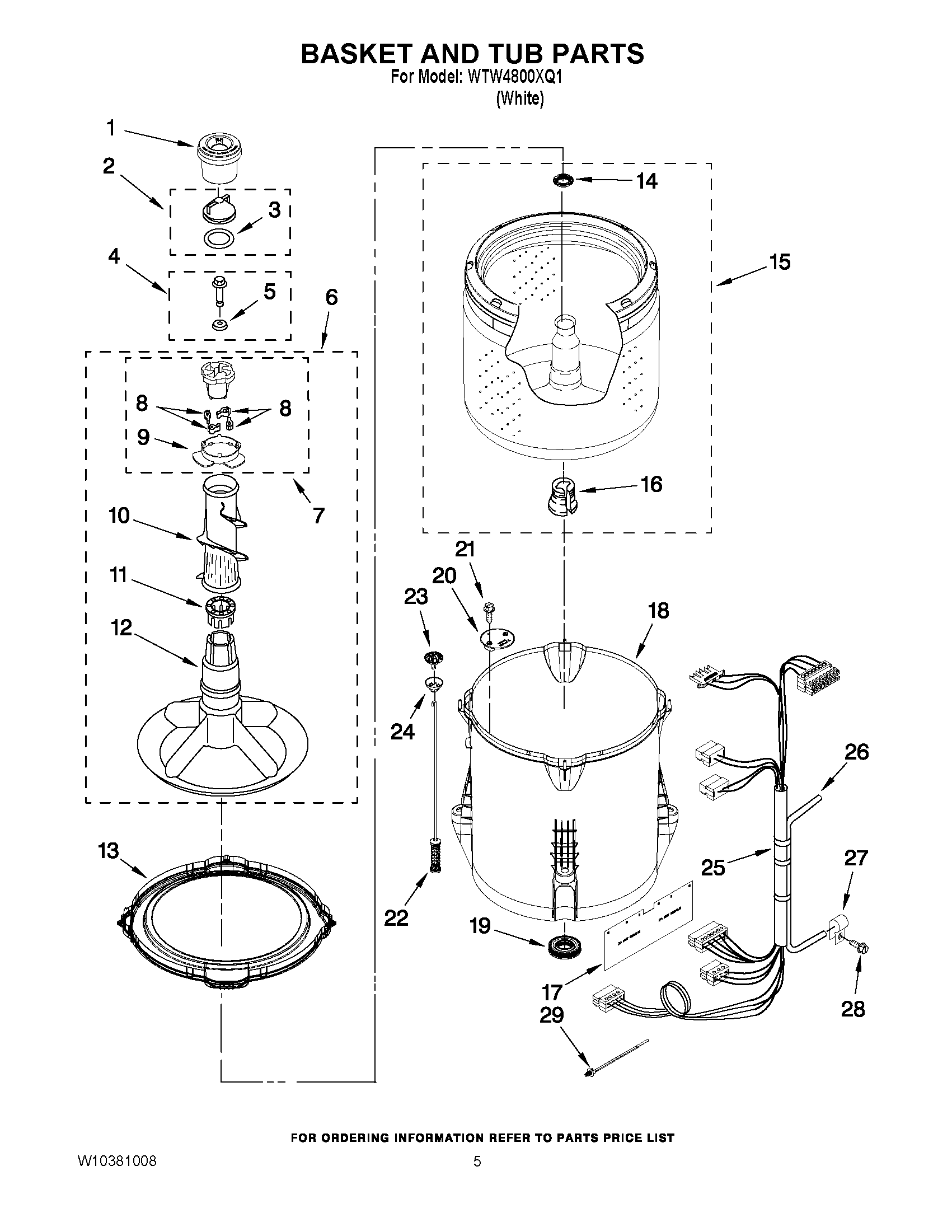

WTW4800XQ1 03 – BASKET AND TUB PARTS

Products

Position	Product
1	8575076A Whirlpool Fabric Softener Dispenser
2	WPW10074580 Whirlpool Agitator Inner Cap and Seal
3	WPW10072840 Whirlpool Seal Assembly
4	W10772621 Whirlpool Washplate Screw
5	WP3949550 Whirlpool Gasket Assembly
6	285565 Whirlpool Agitator Assembly
7	285809 Whirlpool Washer Agitator Cam Kit
8	80040 Whirlpool Washer Agitator Dog Kit
9	WP3952374 Whirlpool Bearing
10	WP3363003 Whirlpool Agitator Mover
11	WP3951608 Whirlpool Washer Agitator Thrust Spacer
12	AGITATOR
13	WPW10215108 Whirlpool Tub Ring
14	WP21366 Whirlpool Spanner Nut
15	W10349185 Whirlpool Basket
16	WP389140 Whirlpool Drive Block or Bell
17	W10339098 Whirlpool Shield
18	W10371566 Whirlpool Outer Tub
19	W10324647 Whirlpool Seal Tub
20	WPW10215093 Whirlpool Filter
21	WP8533928 Whirlpool Refrigerator Screw
22	W10780048 Whirlpool Washer Suspension Rod Assembly
23	BALL, SUSPENSION (SET OF 4 - INCLUDES ITEM 24)
24	W10440729 Whirlpool Suspension
25	HARNESS, LOWER (INCLUDES ITEMS 26 & 29)
26	WP353244 Whirlpool Hose
27	W10005430 Whirlpool Clamp
28	WPW10109200 Whirlpool Screw
29	WPW10298887 Whirlpool Wire Tie Assembly
