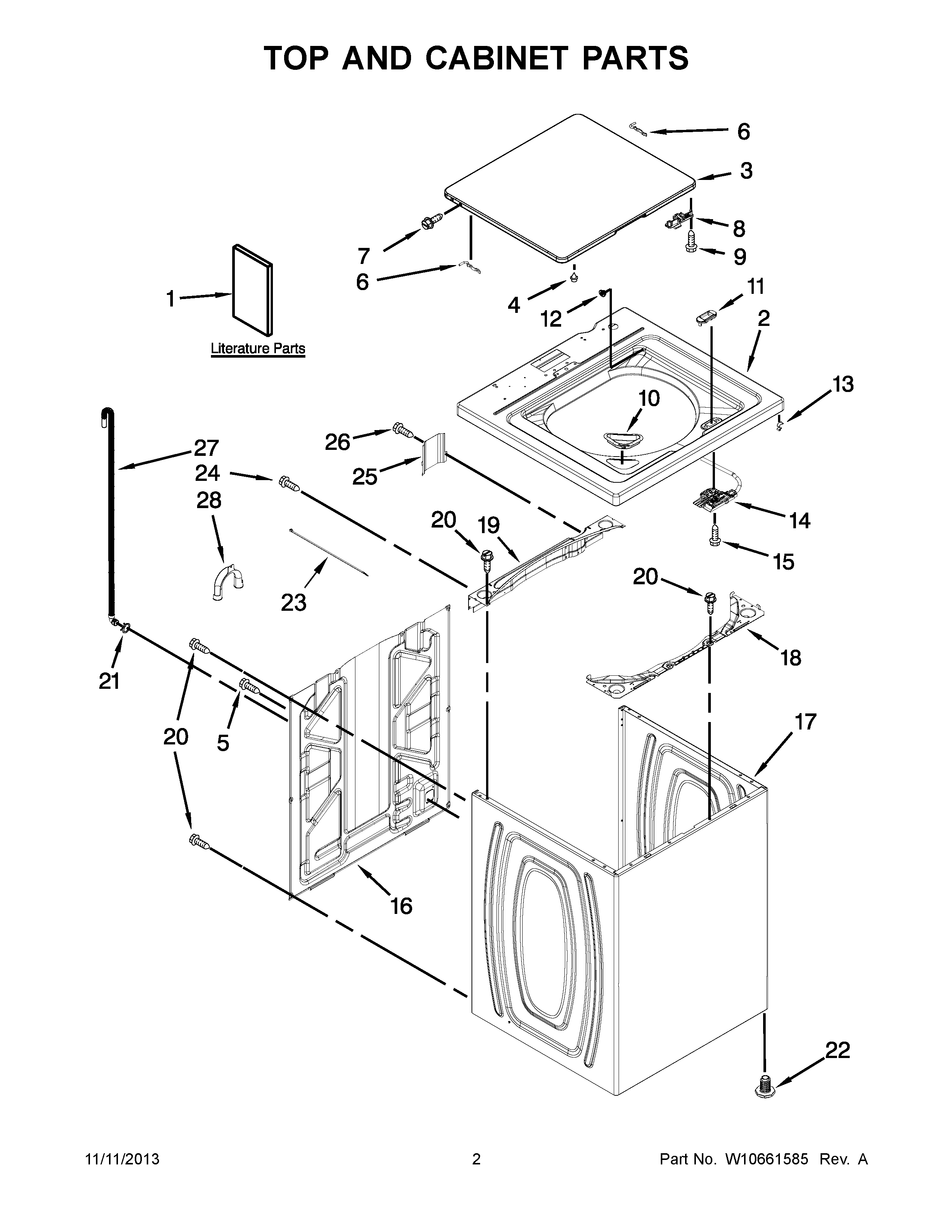

WTW4810BQ0 02 – TOP AND CABINET PARTS

WTW4810BQ0 02 – TOP AND CABINET PARTS

Products

PositionProduct
1OWNERS MANUAL
1ENERGY GUIDE
1INSTALLATION INSTRUCTIONS
1TECH SHEET
2WPW10251299 Whirlpool Top Assembly
3WPW10338625 Whirlpool Lid
4WP9724509 Whirlpool Bumper
5WP9740848 Whirlpool Dishwasher Screw
6WP91770 Whirlpool Hinge
7SCREW
8WPW10240513 Whirlpool Strike
9WPW10273971 Whirlpool Screw
10WPW10192089 Whirlpool Washer Bleach Dispenser
11WPW10392041 Whirlpool Dishwasher Lid Lock Bezel
12WP21258 Whirlpool Washer Lid Hinge Bearing
13WP90016 Whirlpool Clip
14W10404050 Whirlpool Washer Door Lid Lock and Latch Assembly
15WP8281163 Whirlpool Refrigerator Screw
16W11486091 Whirlpool Rear Panel
17W10596395 Whirlpool Cabinet
18W11695476 Whirlpool Brace Support
19W11712680 Whirlpool Commercial Part Brace
20WP489069 Whirlpool Compactor Screw
21WP356138 Whirlpool Hose Clamp
22WPW10687506 Whirlpool Washer Leveling Leg
23WPW10339879 Whirlpool Wire Tie
24WP489128 Whirlpool Refrigerator Screw
25W10676061 Whirlpool Cover Assembly
26W10846509 Whirlpool Screw
27W11244231 Whirlpool Hose
28WPW10280024 Whirlpool Retainer
