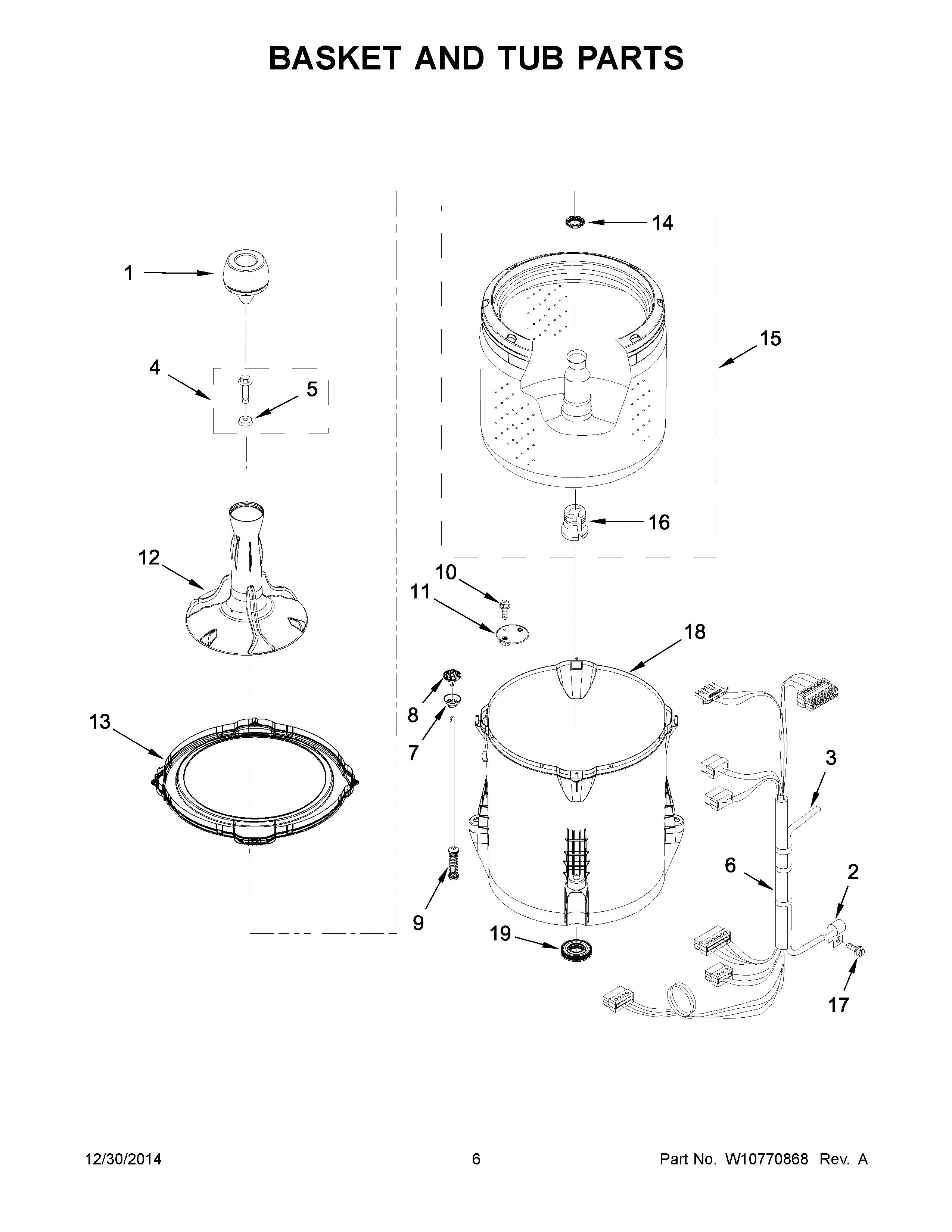

WTW4810EW0 04 – BASKET AND TUB PARTS

WTW4810EW0 04 – BASKET AND TUB PARTS

Written by

in

WTW4810EW0 04 – BASKET AND TUB PARTS

Products

PositionProduct
1W10793634 Whirlpool Dispenser
2W10005430 Whirlpool Clamp
3WP353244 Whirlpool Hose
4W10772621 Whirlpool Washplate Screw
5WP3949550 Whirlpool Gasket Assembly
6W10836954 Whirlpool Wire Harness
7W10440729 Whirlpool Suspension
8BALL, SUSPENSION (SET OF 4 – INCLUDES SUSPENSION BUSHINGS)
9W10780045 Whirlpool Suspension Rod
10WP8533928 Whirlpool Refrigerator Screw
11WPW10215093 Whirlpool Filter
12AGITATOR
13WPW10531289 Whirlpool Tub Ring
14WP21366 Whirlpool Spanner Nut
15W10554251 Whirlpool Basket
16WP389140 Whirlpool Drive Block or Bell
17WPW10109200 Whirlpool Screw
18W10371566 Whirlpool Outer Tub
19W10324647 Whirlpool Seal Tub
