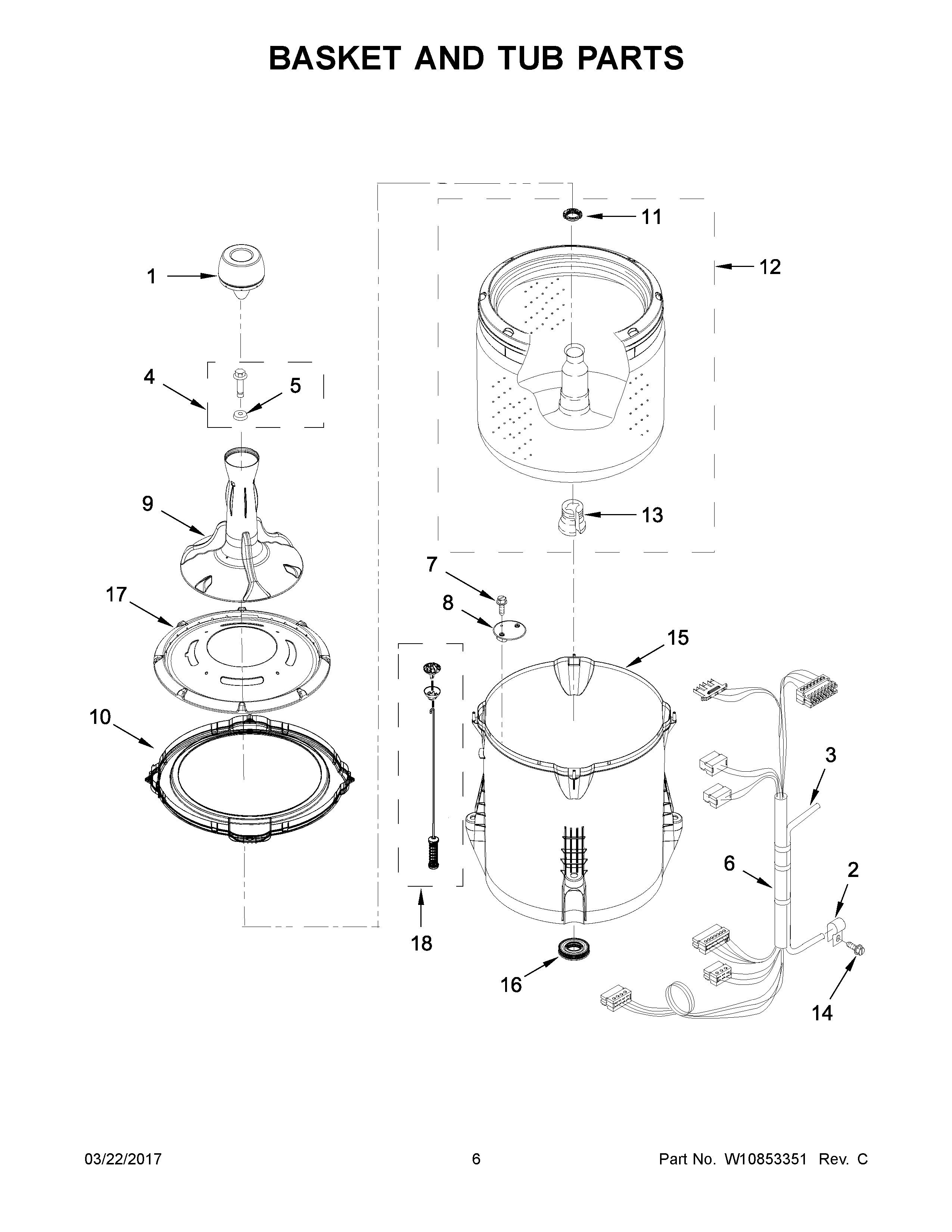

WTW4810EW1 04 – BASKET AND TUB PARTS

Products

PositionProduct
1W10793634 Whirlpool Dispenser
2W10005430 Whirlpool Clamp
3WP353244 Whirlpool Hose
4W10772621 Whirlpool Washplate Screw
5WP3949550 Whirlpool Gasket Assembly
6W10678684 Whirlpool Wire Harness
7WP8533928 Whirlpool Refrigerator Screw
8WPW10215093 Whirlpool Filter
9AGITATOR
10WPW10531289 Whirlpool Tub Ring
11WP21366 Whirlpool Spanner Nut
12W10554251 Whirlpool Basket
13WP389140 Whirlpool Drive Block or Bell
14WPW10109200 Whirlpool Screw
15W10371566 Whirlpool Outer Tub
16W10324647 Whirlpool Seal Tub
17W11085570 Whirlpool Shield
18W10780045 Whirlpool Suspension Rod
