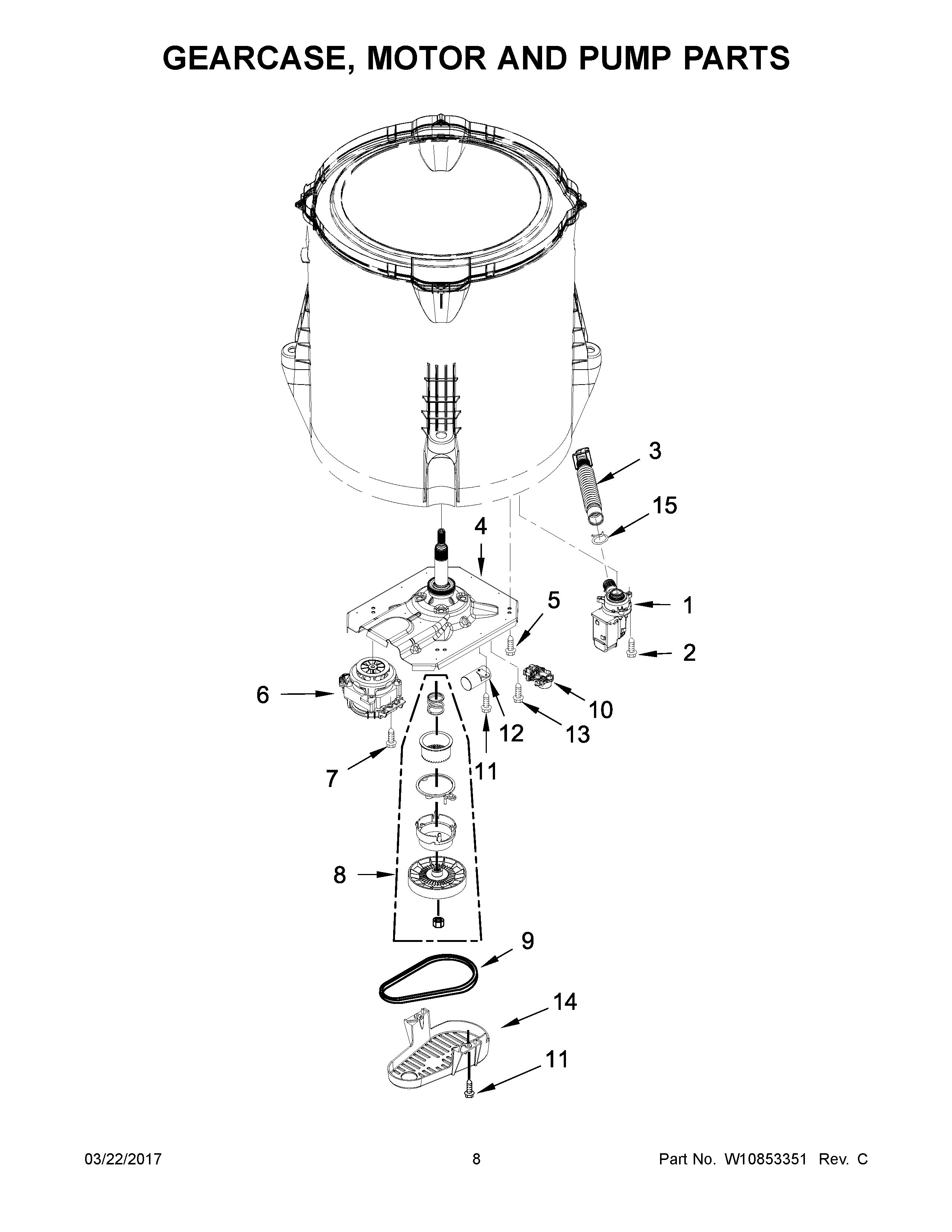

WTW4810EW1 05 – GEARCASE, MOTOR AND PUMP PARTS

Products

PositionProduct
1WPW10661045 Whirlpool Washer Water Drain Pump
2WPW10004910 Whirlpool Screw
3W10899966 Whirlpool Hose Assembly
4GEARCASE (DW1)
5WPW10249633 Whirlpool Screw
6W10889172 Whirlpool Drive Motor
7W11685857 Whirlpool Screw Assembly
8W10721967 Whirlpool Washer Cam Kit
9WPW10006384 Whirlpool Washer Drive Belt
10W10913953 Whirlpool Washer Shift Actuator
11W11596033 Whirlpool Microwave Screw
12W11158830 Whirlpool Capacitor
13W11573574 Whirlpool Screw
14WPW10427633 Whirlpool Belt Shield
15WP285655 Whirlpool Hose Clamp
