WTW4810EW2 03 – CONTROLS AND WATER INLET PARTS

WTW4810EW2 03 – CONTROLS AND WATER INLET PARTS

Written by

in

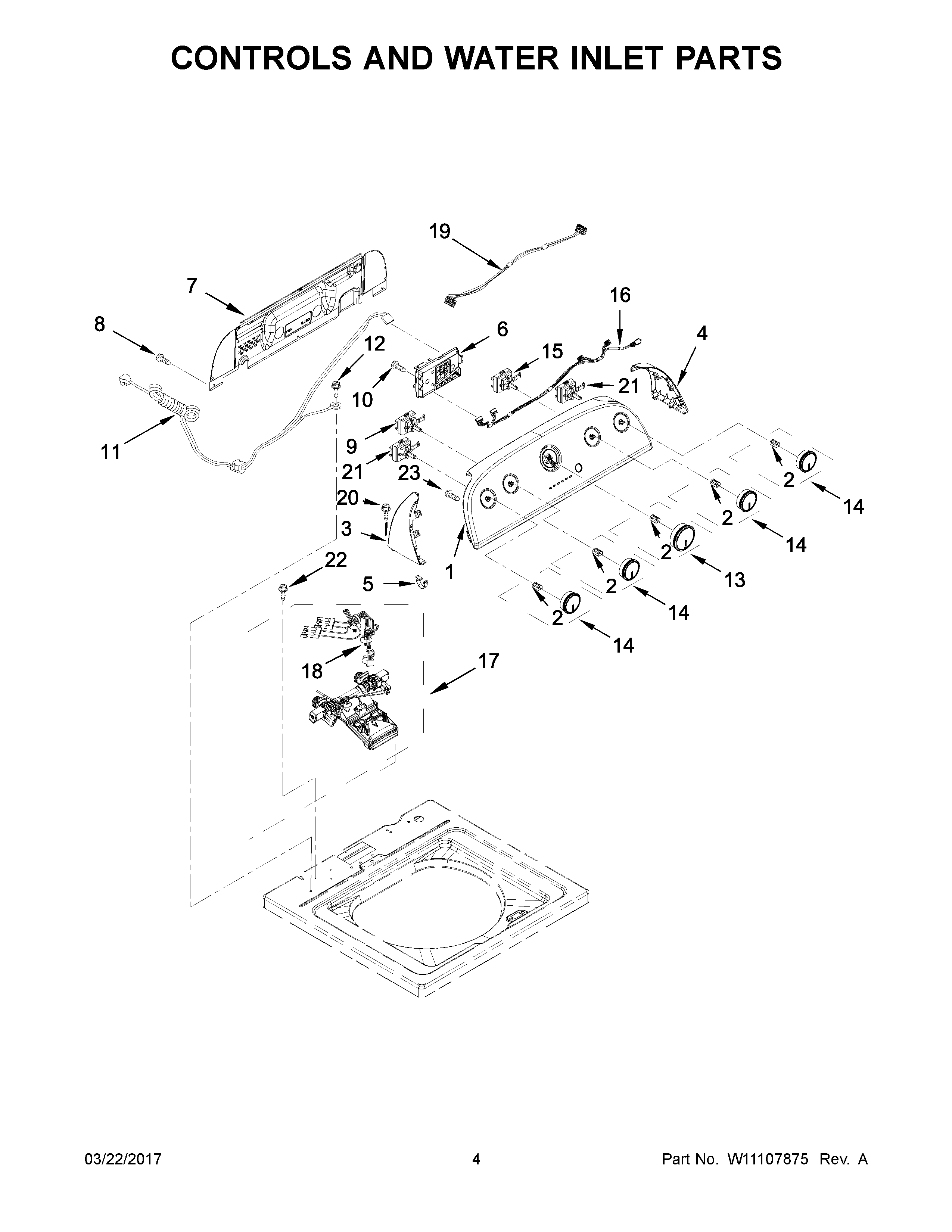

WTW4810EW2 03 – CONTROLS AND WATER INLET PARTS

Products

PositionProduct
1PANEL, CONSOLE
2WP8536939 Whirlpool Spring Clip
3WPW10520782 Whirlpool Panel
4WPW10520780 Whirlpool Panel
5WP8312709 Whirlpool Endcap Clip
6W11124764-includeCORE Whirlpool W11124764 Refrigerator Electronic Control Board + Core
7W10552335 Whirlpool Rear Panel
8WP489069 Whirlpool Compactor Screw
9WPW10285518 Whirlpool Cycle Switch
10WP3400818 Whirlpool Screw
11W10877409 Whirlpool Power Cord
12W10846509 Whirlpool Screw
13W11501455 Whirlpool Knob Assembly
14W11176265 Whirlpool Knob
15WPW10285512 Whirlpool Cycle Switch
16W11211519 Whirlpool Wire Harness
17W11210459 Whirlpool Washer Water Inlet Valve
18W10868094 Whirlpool Wire Harness
19W10786100 Whirlpool Wire Harness
20WP90767 Whirlpool Screw
21WPW10285511 Whirlpool Cycle Switch
22WPW10213953 Whirlpool Screw
233400073 Whirlpool Screw
