WTW4815EW0 03 – CONTROLS AND WATER INLET PARTS

WTW4815EW0 03 – CONTROLS AND WATER INLET PARTS

Written by

in

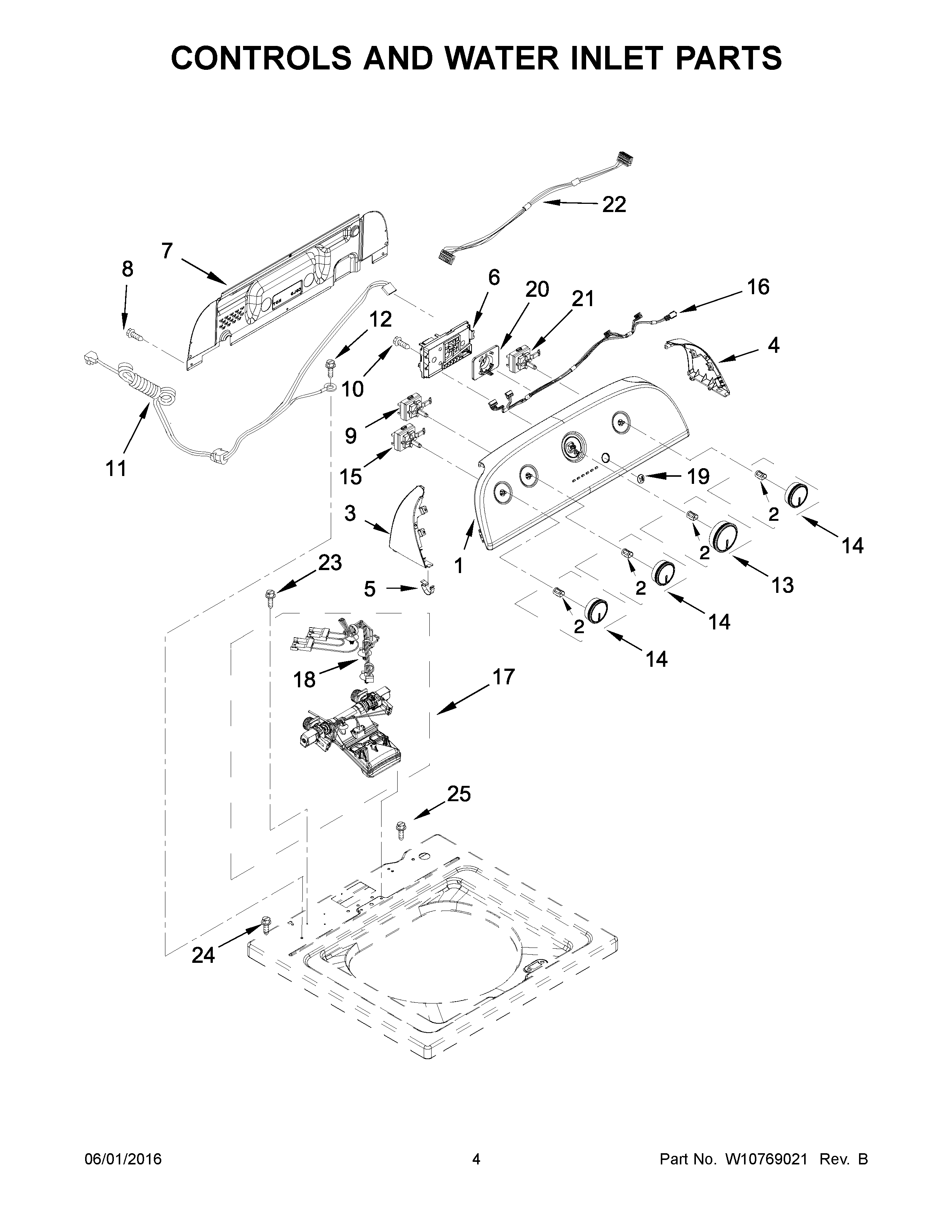

WTW4815EW0 03 – CONTROLS AND WATER INLET PARTS

Products

PositionProduct
1W10861527 Whirlpool Control Panel
2WP8536939 Whirlpool Spring Clip
3WPW10520782 Whirlpool Panel
4WPW10520780 Whirlpool Panel
5WP8312709 Whirlpool Endcap Clip
6W10711300 Whirlpool Electronic Control Board + Core
7W10552335 Whirlpool Rear Panel
8WP489069 Whirlpool Compactor Screw
9WPW10285518 Whirlpool Cycle Switch
10WP90767 Whirlpool Screw
11WPW10525194 Whirlpool Power Cord
12W10846509 Whirlpool Screw
13W11501455 Whirlpool Knob Assembly
14W11176265 Whirlpool Knob
15WPW10285511 Whirlpool Cycle Switch
16W11211519 Whirlpool Wire Harness
17WPW10683603 Whirlpool Dishwasher Water Inlet Valve
18W10876654 Whirlpool Wire Harness
19W11084340 Whirlpool Push Button
20WPW10596298 Whirlpool Push Button
21WPW10285512 Whirlpool Cycle Switch
22HARNS-WIRE
23WPW10213953 Whirlpool Screw
24WP3400818 Whirlpool Screw
253400073 Whirlpool Screw
