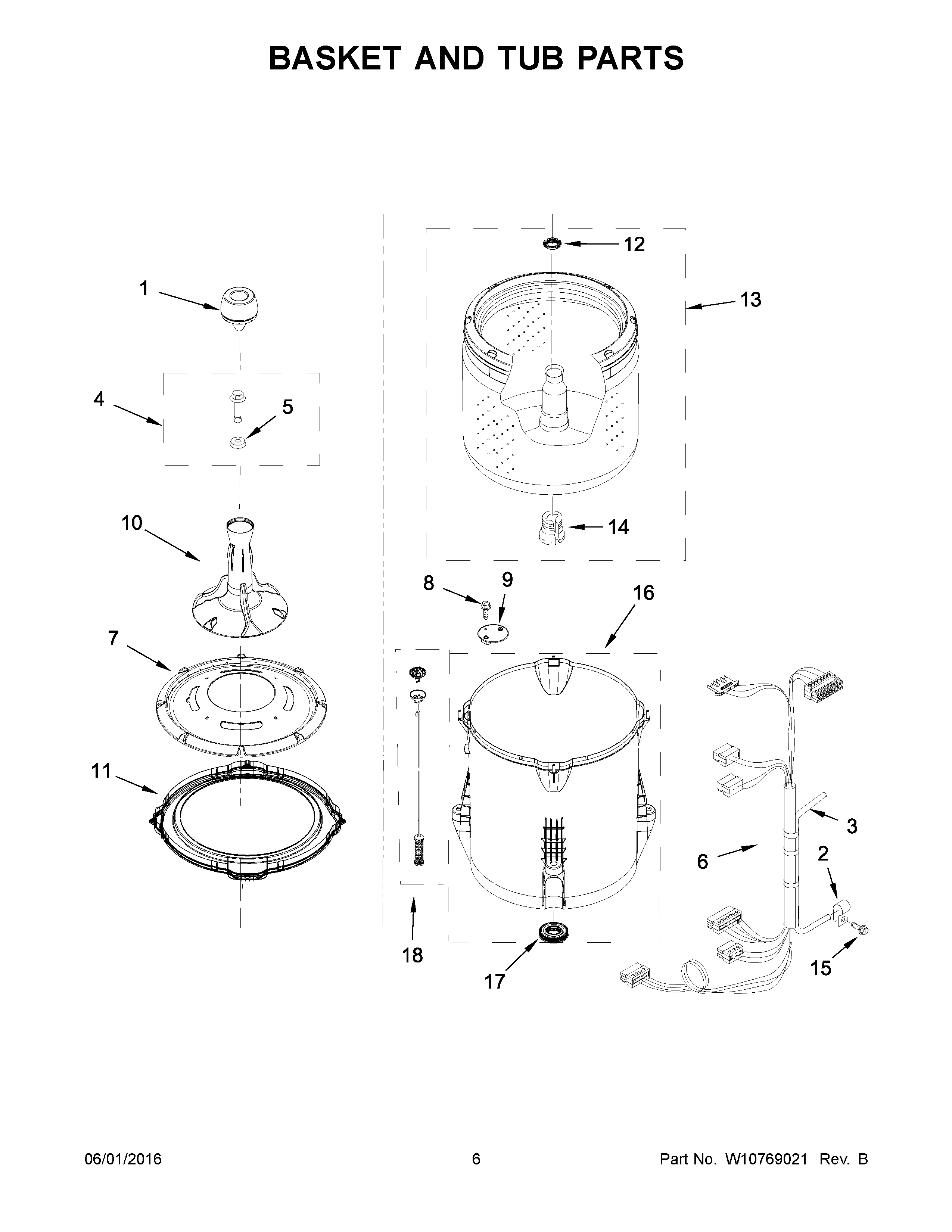

WTW4815EW0 04 – BASKET AND TUB PARTS

WTW4815EW0 04 – BASKET AND TUB PARTS

Written by

in

WTW4815EW0 04 – BASKET AND TUB PARTS

Products

PositionProduct
1W10793634 Whirlpool Dispenser
2W10005430 Whirlpool Clamp
3WP353244 Whirlpool Hose
4W10772621 Whirlpool Washplate Screw
5WP3949550 Whirlpool Gasket Assembly
6W10610076 Whirlpool Wire Harness
7W11085570 Whirlpool Shield
8WP8533928 Whirlpool Refrigerator Screw
9WPW10215093 Whirlpool Filter
10AGITATOR
11WPW10531289 Whirlpool Tub Ring
12WP21366 Whirlpool Spanner Nut
13W10554251 Whirlpool Basket
14WP389140 Whirlpool Drive Block or Bell
15WPW10109200 Whirlpool Screw
16W10371566 Whirlpool Outer Tub
17W10324647 Whirlpool Seal Tub
18W10780045 Whirlpool Suspension Rod
