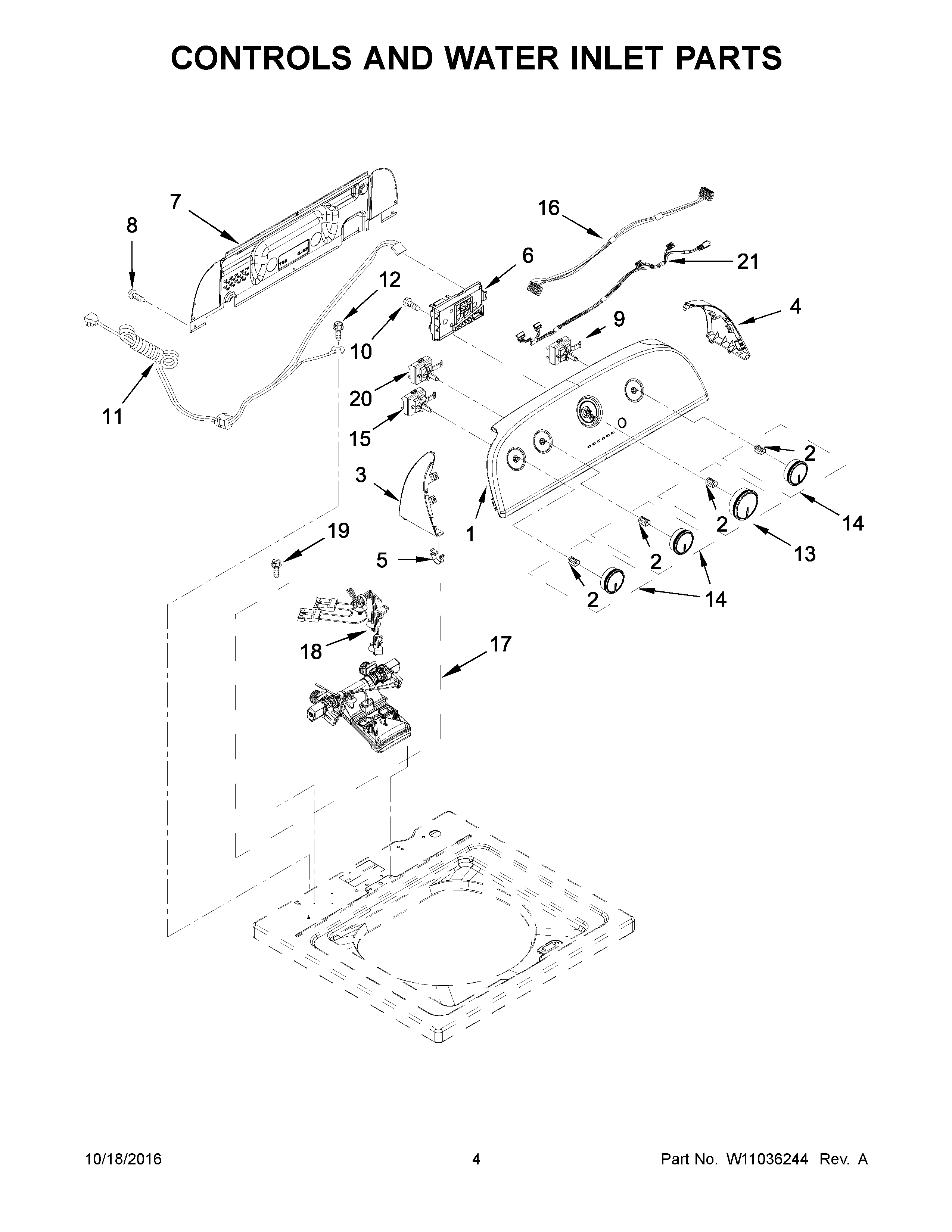

WTW4815EW2 03 – CONTROLS AND WATER INLET PARTS

WTW4815EW2 03 – CONTROLS AND WATER INLET PARTS

Written by

in

WTW4815EW2 03 – CONTROLS AND WATER INLET PARTS

Products

PositionProduct
1W11089974 Whirlpool Control Panel Assembly
2WP8536939 Whirlpool Spring Clip
3WPW10520782 Whirlpool Panel
4WPW10520780 Whirlpool Panel
5WP8312709 Whirlpool Endcap Clip
6W11124765-includeCORE Whirlpool W11124765 Washer Electronic Control Board + Core
7W10552335 Whirlpool Rear Panel
8WP489069 Whirlpool Compactor Screw
9WPW10285511 Whirlpool Cycle Switch
10WP90767 Whirlpool Screw
11W10877409 Whirlpool Power Cord
12W10846509 Whirlpool Screw
13W11501455 Whirlpool Knob Assembly
14W11176265 Whirlpool Knob
15WPW10285512 Whirlpool Cycle Switch
16W10786100 Whirlpool Wire Harness
17W11210459 Whirlpool Washer Water Inlet Valve
18W10678671 Whirlpool Wire Harness
19WPW10213953 Whirlpool Screw
20WPW10285518 Whirlpool Cycle Switch
21W10694682 Whirlpool Wire Harness
