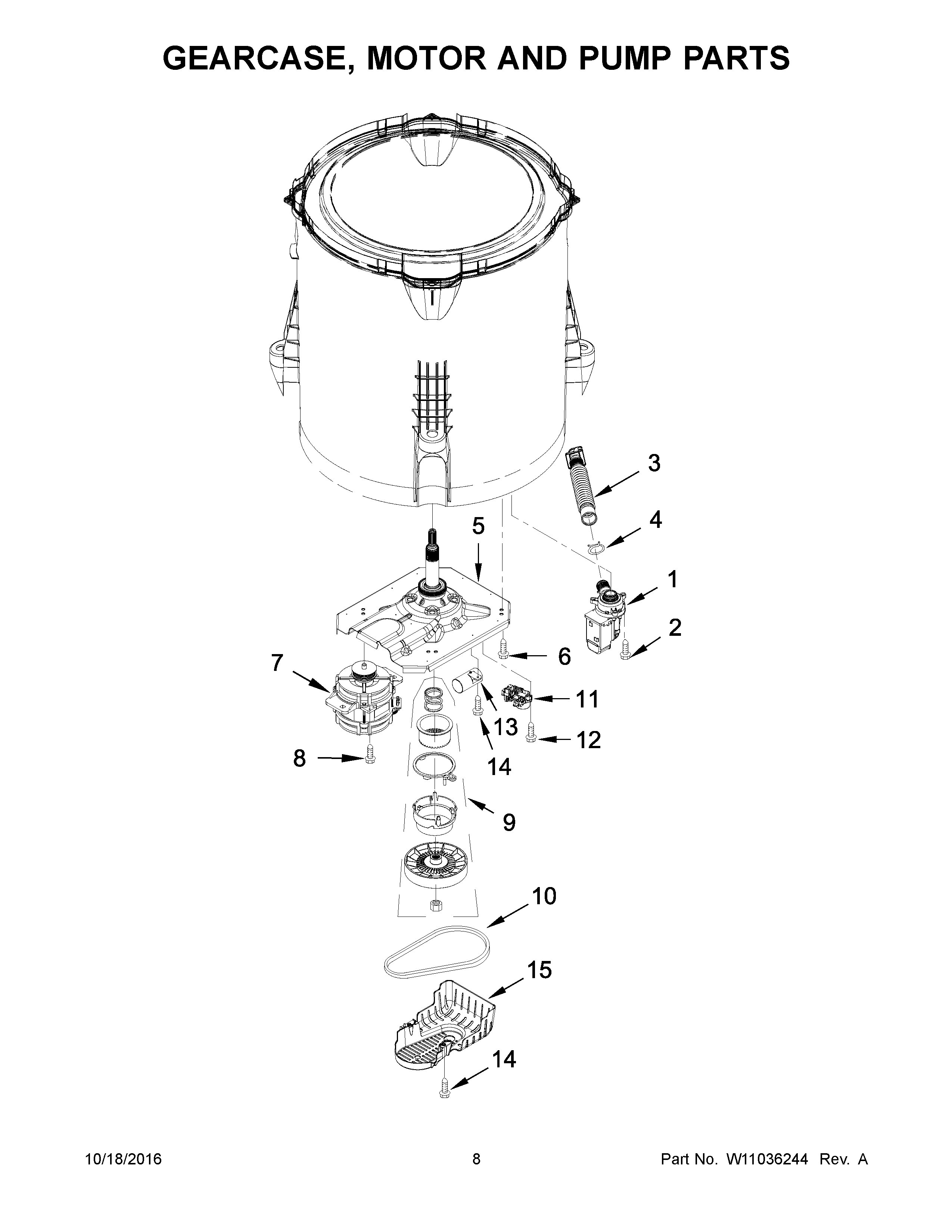

WTW4815EW2 05 – GEARCASE, MOTOR AND PUMP PARTS

WTW4815EW2 05 – GEARCASE, MOTOR AND PUMP PARTS

Written by

in

WTW4815EW2 05 – GEARCASE, MOTOR AND PUMP PARTS

Products

PositionProduct
1PUMP-WATER
2WPW10004910 Whirlpool Screw
3W10899966 Whirlpool Hose Assembly
4WP285655 Whirlpool Hose Clamp
5GEARCASE (DW1)
6WPW10249633 Whirlpool Screw
7W10889172 Whirlpool Drive Motor
8W11685857 Whirlpool Screw Assembly
9W10721967 Whirlpool Washer Cam Kit
10WPW10006384 Whirlpool Washer Drive Belt
11W10913953 Whirlpool Washer Shift Actuator
12W11596033 Whirlpool Microwave Screw
13W11158830 Whirlpool Capacitor
14W11573574 Whirlpool Screw
15WPW10427633 Whirlpool Belt Shield
